Home › Hyundai › 2001 › Santa Fe GLS, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle System › Automatic Transaxle System › Automatic Transaxle Shift Control Components › Notes

Automatic Transaxle Shift Control Components: Notes

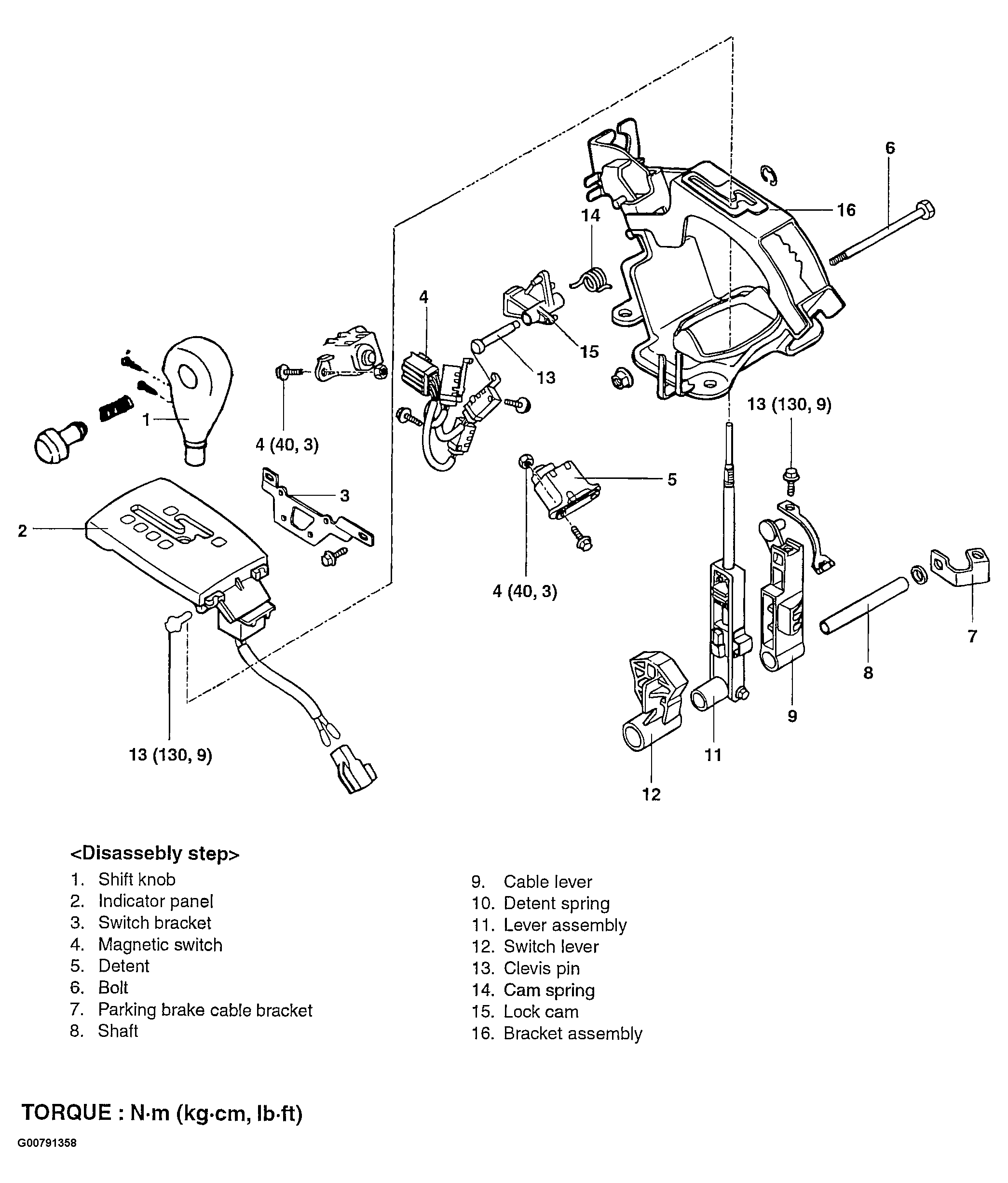

Fig 1: Automatic Transaxle Shift Control Components
G00791358Courtesy of HYUNDAI MOTOR CO.
