Automatic Transaxle System
›
Inspection Process For Trouble Symptoms
›
Inspection Procedure 14
Inspection Procedure 14

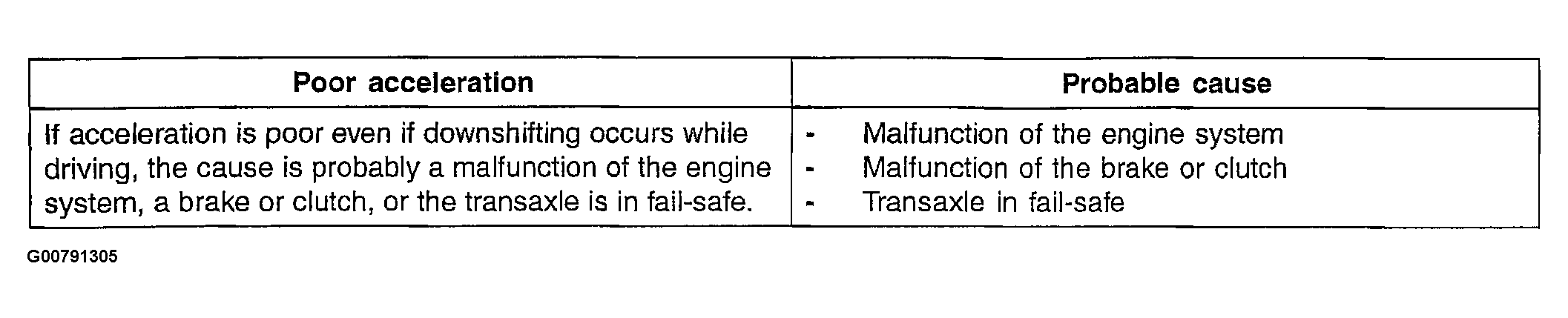

Fig 1: Inspection Procedure 14 Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

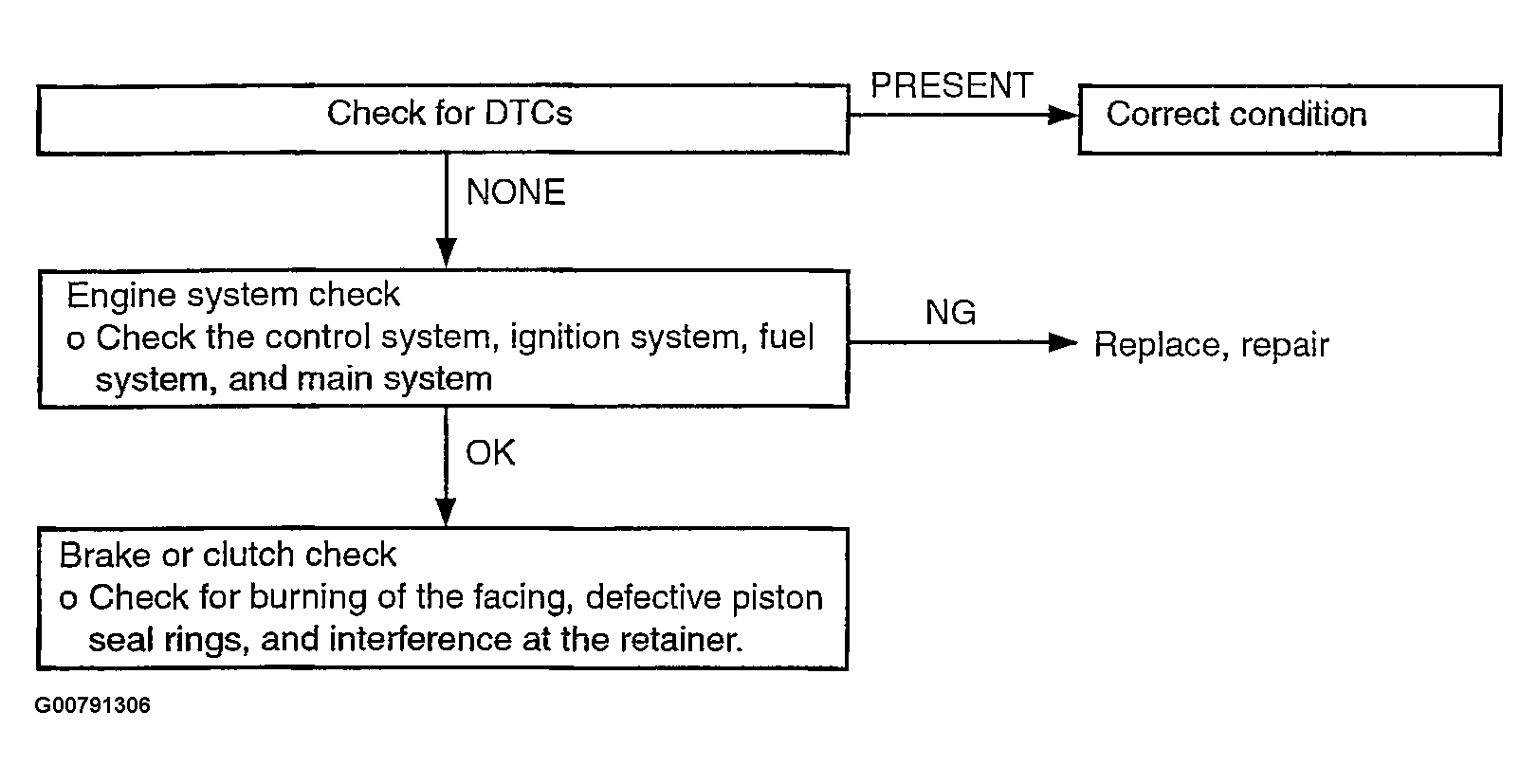

Fig 2: Inspection Procedure 14 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
