Automatic Transaxle System
›
Inspection Process For Trouble Symptoms
›
Inspection Procedure 11
Inspection Procedure 11

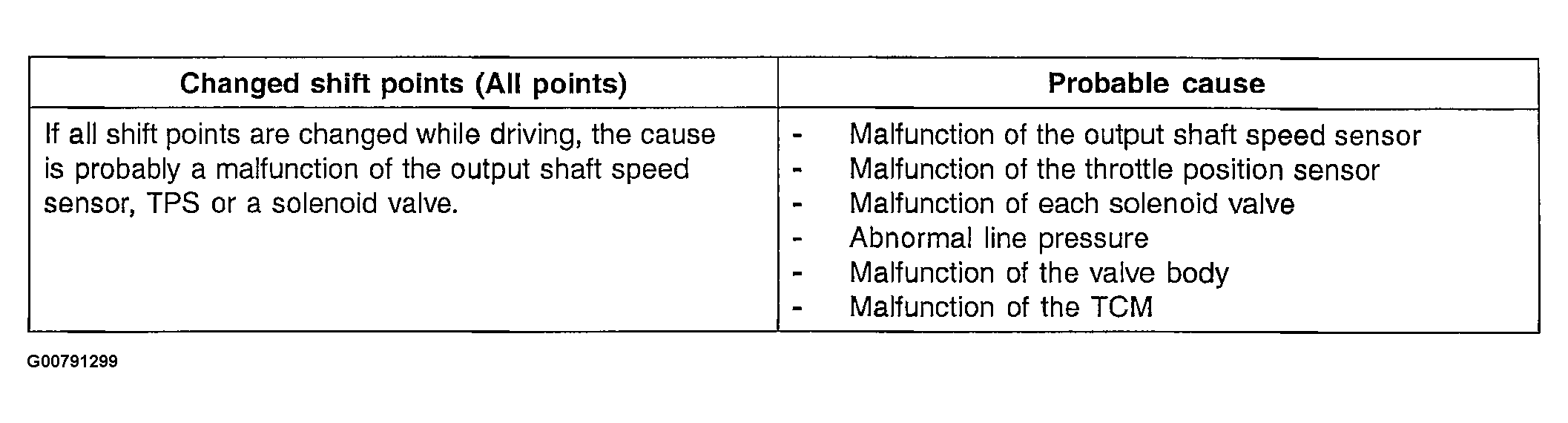

Fig 1: Inspection Procedure 11 Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

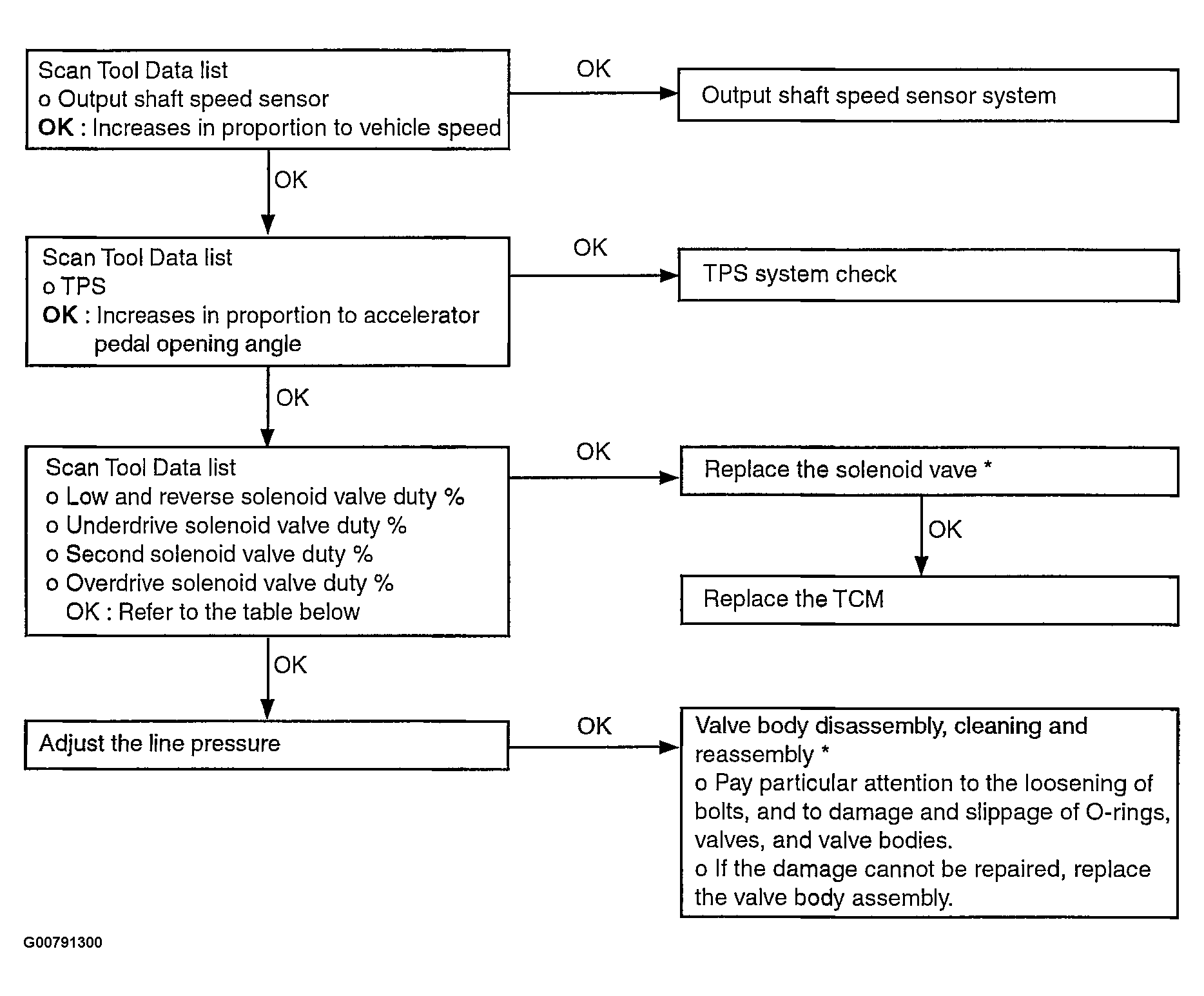

Fig 2: Inspection Procedure 11 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
