Procedure To Install The Lock Cam

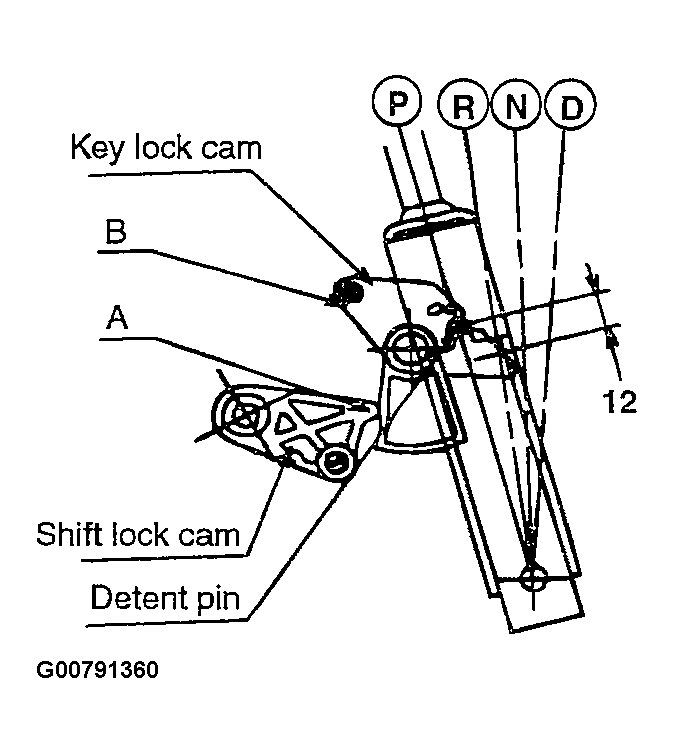

Fig 1: Identifying A/T Lever

Courtesy of HYUNDAI MOTOR CO.

1. Move A/T lever to "P" position to set the key lock cam and the shift lock cam as shown in the figure.
   • Check that the key lock cam is located at "B" by the detent pin.
   • Check that the shift lock cam is located at "A".

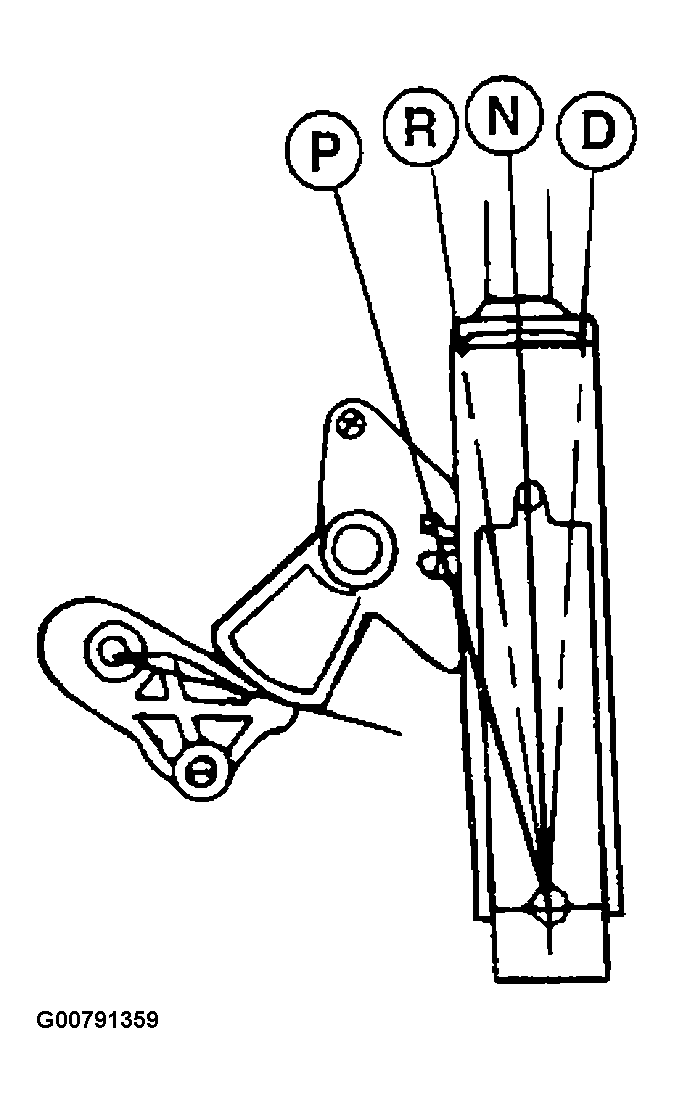

   Fig 2: Positioning A/T Lever

   Courtesy of HYUNDAI MOTOR CO.
2. Check that the key cylinder is at "LOCK".
