Inspection Chart For Diagnostic Trouble Codes: Notes
Inspect according to the inspection chart that is appropriate for the malfunction code.

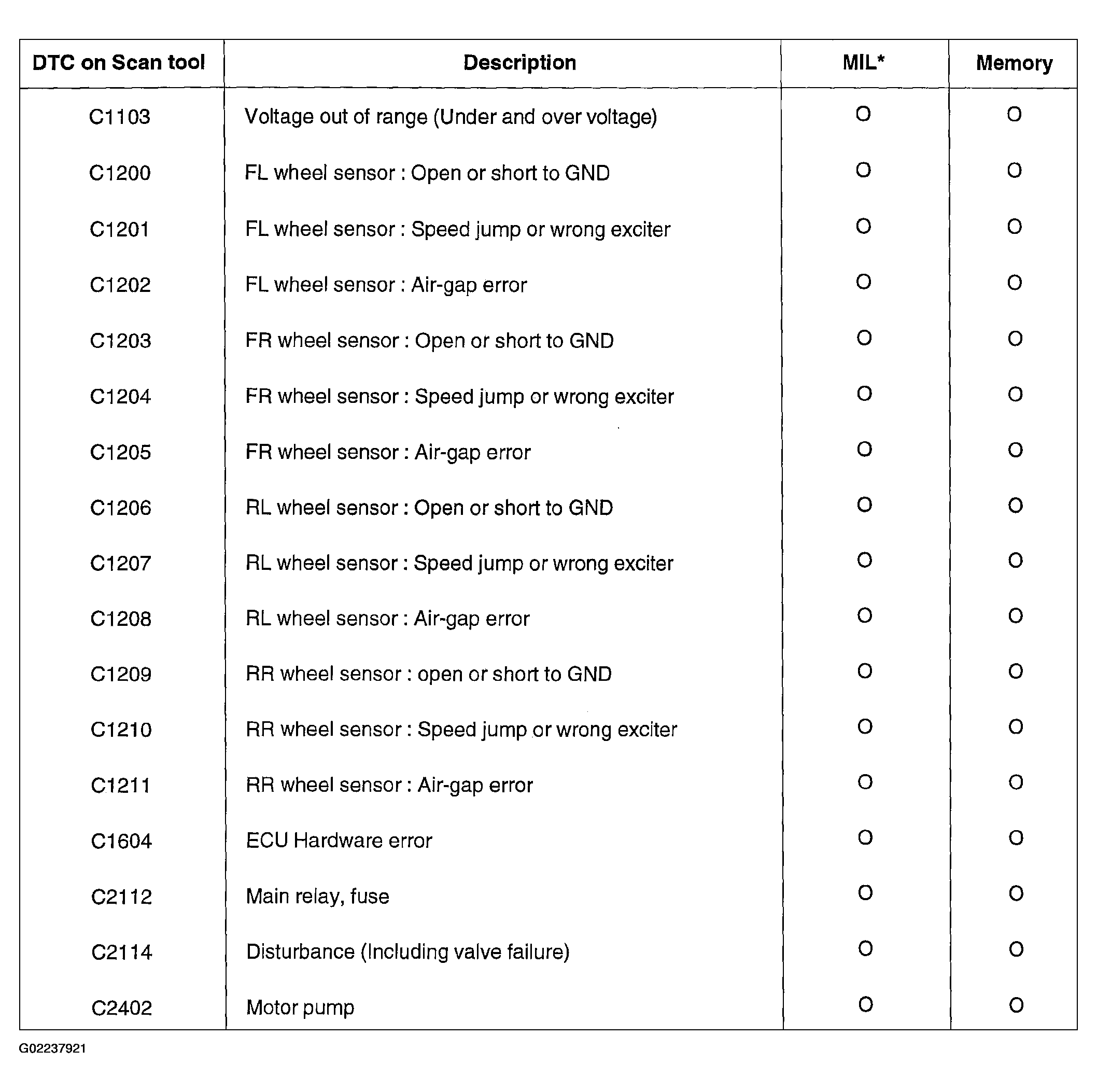

DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
| DTC | Definition |
|---|---|
| C1103 | Voltage Out Of Range |
| C1200 | Wheel Speed Sensor Open Or Short To Ground |
| C1201 | Wheel Speed Sensor Malfunction |
| C1202 | Large Air Gap |
| C1203 | Wheel Speed Sensor Open Or Short To Ground |
| C1204 | Wheel Speed Sensor Malfunction |
| C1205 | Large Air Gap |
| C1206 | Wheel Speed Sensor Open Or Short To Ground |
| C1207 | Wheel Speed Sensor Malfunction |
| C1208 | Large Air Gap |
| C1209 | Wheel Speed Sensor Open Or Short To Ground |
| C1210 | Wheel Speed Sensor Malfunction |
| C1211 | Large Air Gap |
| C1604 | ECU Hardware (Error Valve Failure) |
| C2112 | Valve Relay (Including Fuse Failure) |
| C2114 | Disturbance |
| C2402 | Electrical (Pump Motor) |
