Inspection Procedure For Trouble Symptoms

Inspection Procedure 1

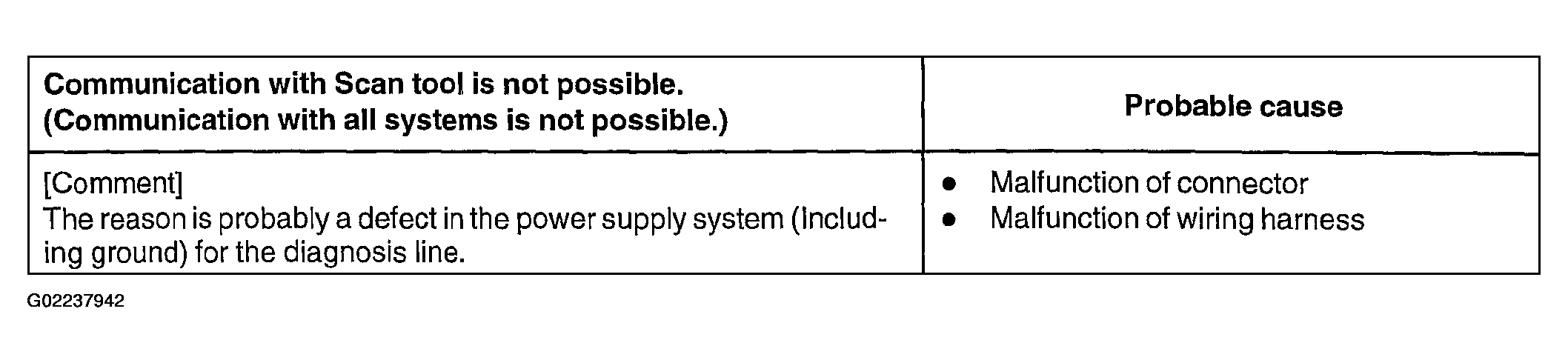

Fig 1: Inspection Procedure 1 Table

Inspection Procedure 2

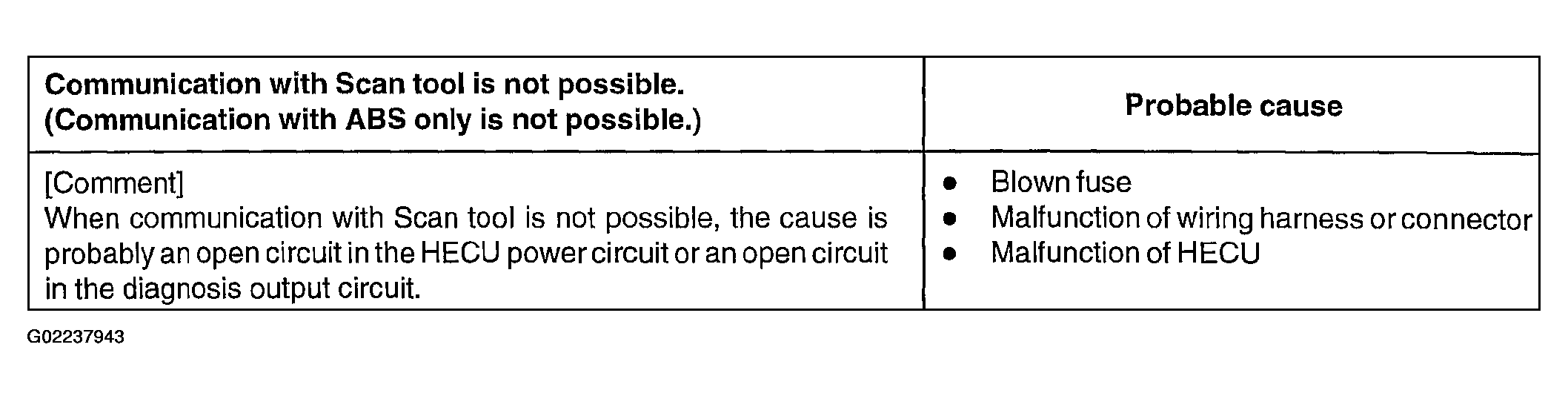

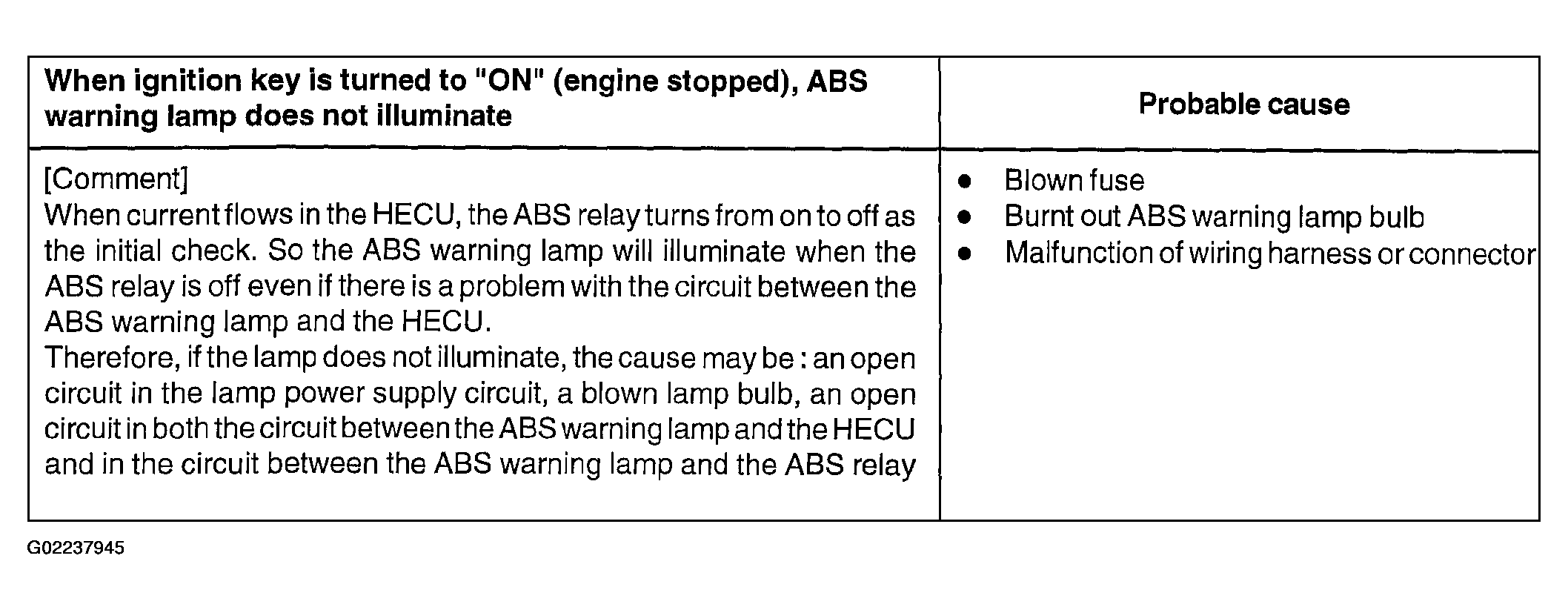

Fig 2: Inspection Procedure 2 Table

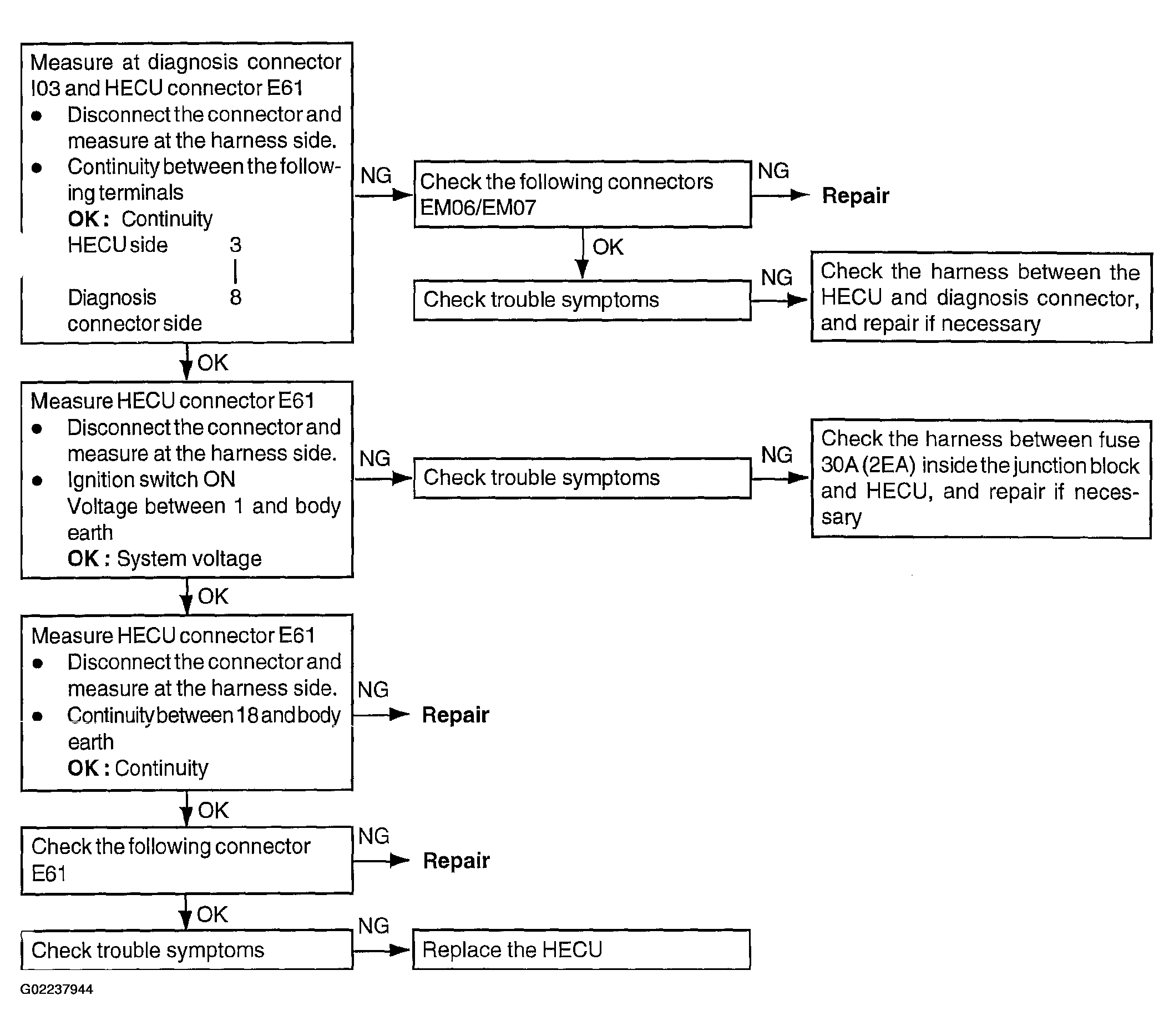

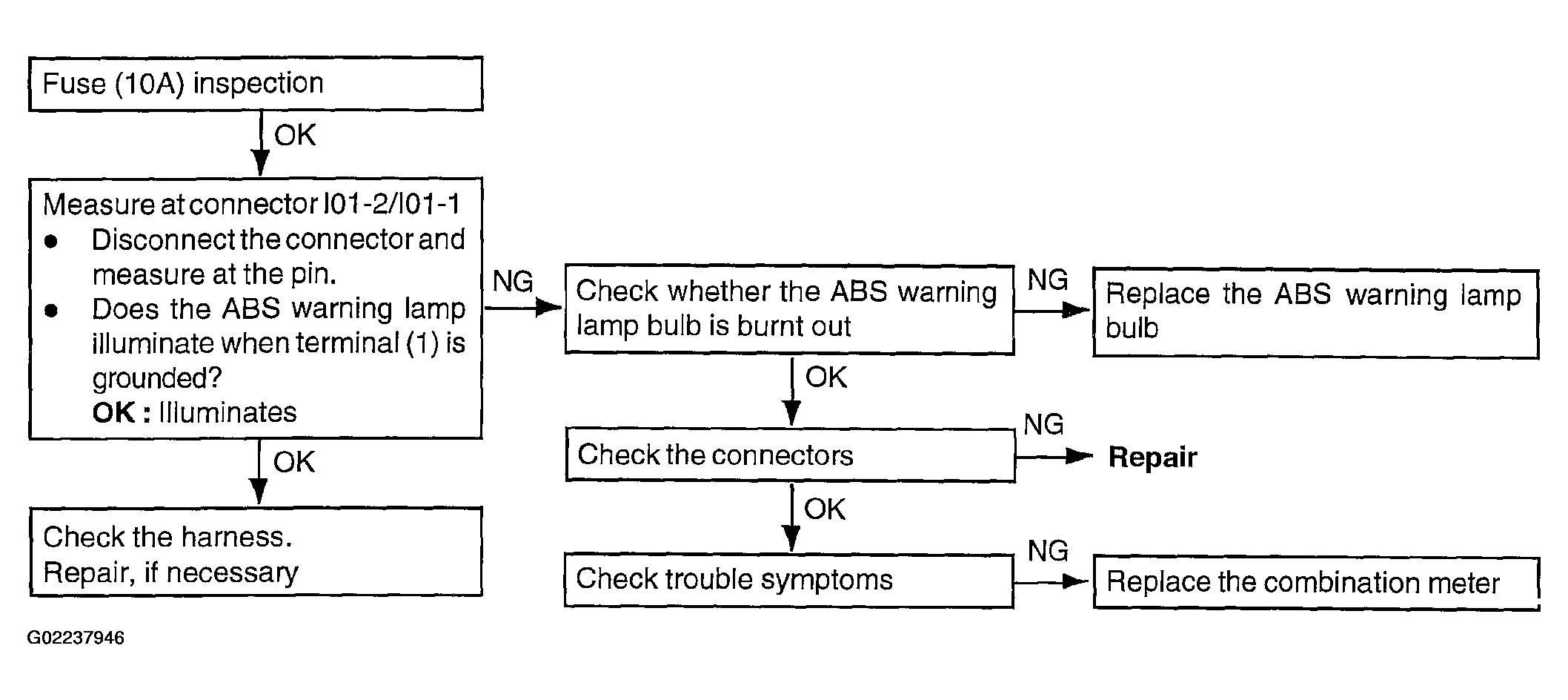

Fig 3: Inspection Procedure 2 Diagnostic Flow Chart

Inspection Procedure 3

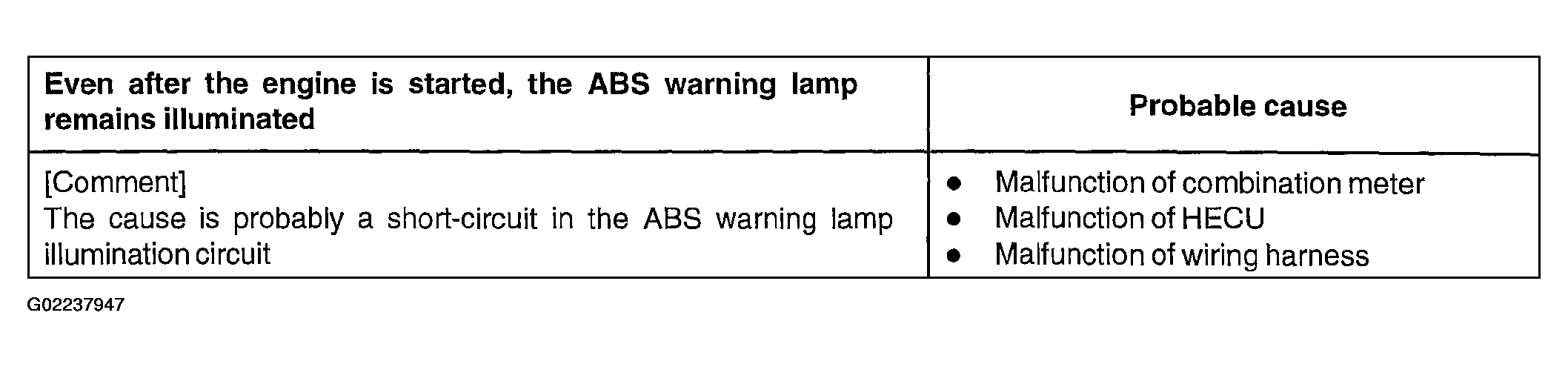

Fig 4: Inspection Procedure 3 Table

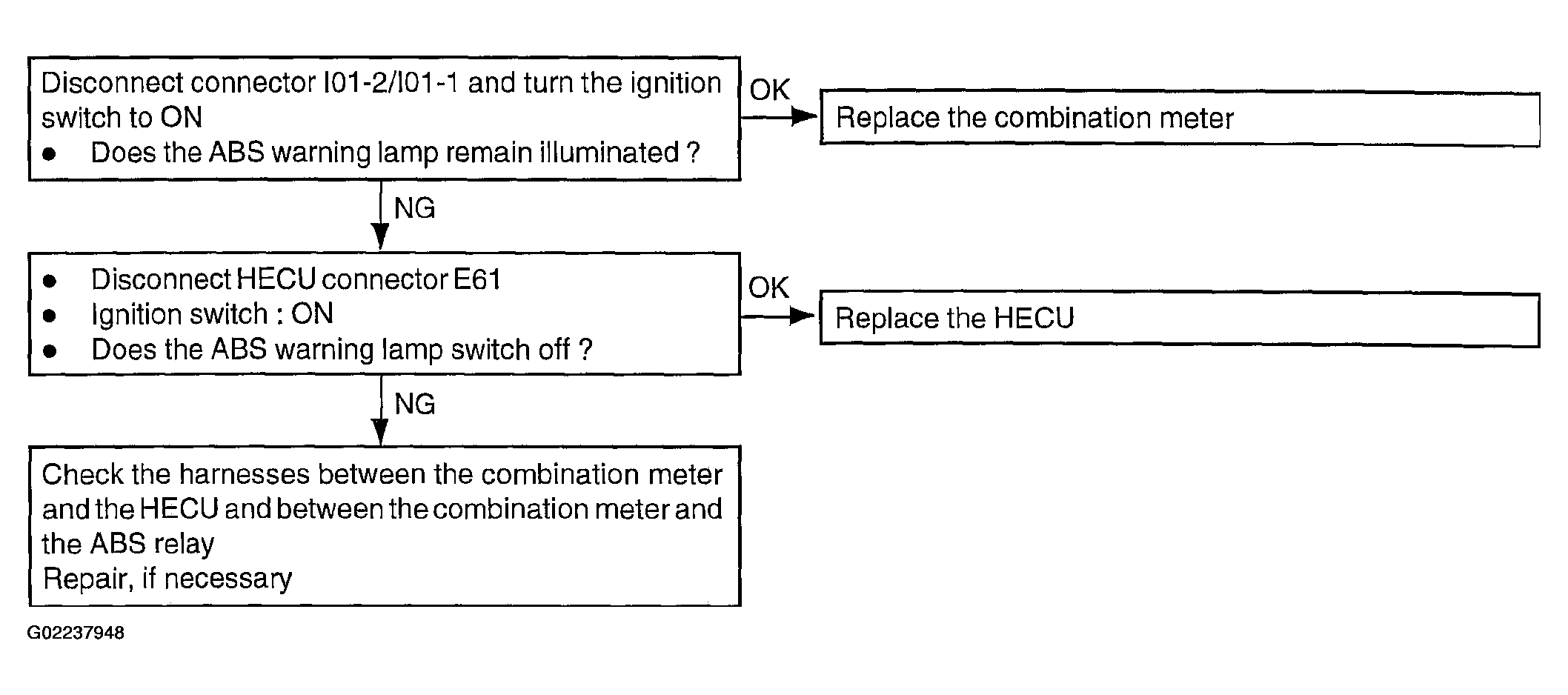

Fig 5: Inspection Procedure 3 Diagnostic Flow Chart

Inspection Procedure 4

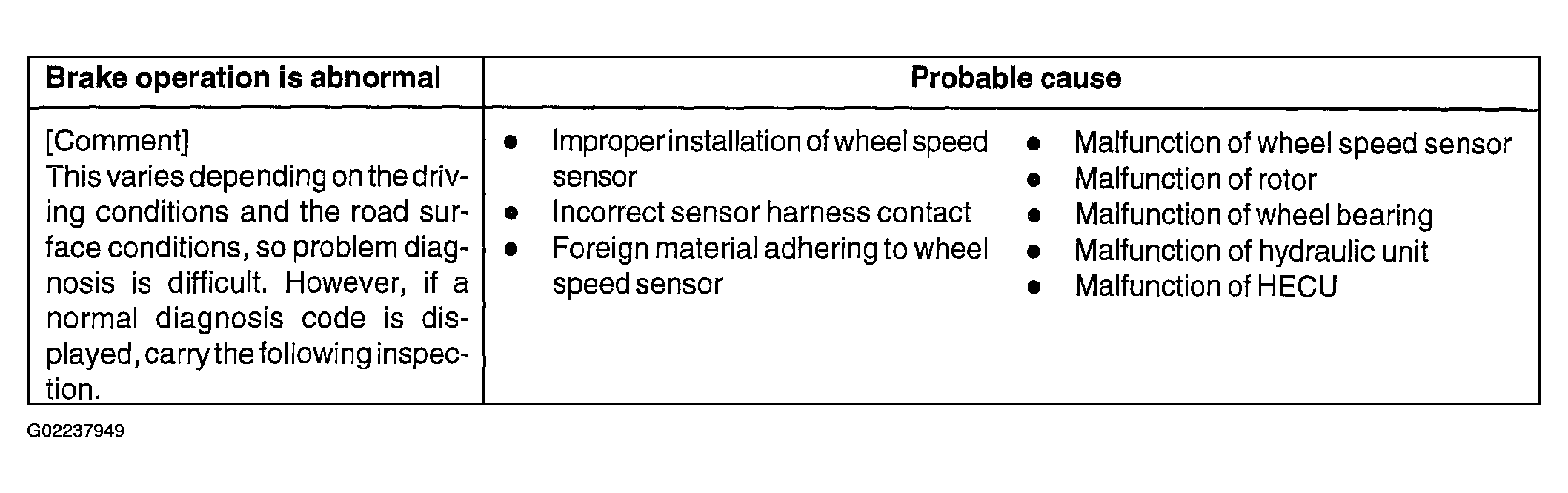

Fig 6: Inspection Procedure 4 Table

This trouble symptom is limited to cases where communication with the Scan tool is possible (HECU power supply is normal) and the diagnosis code is a normal diagnosis code.

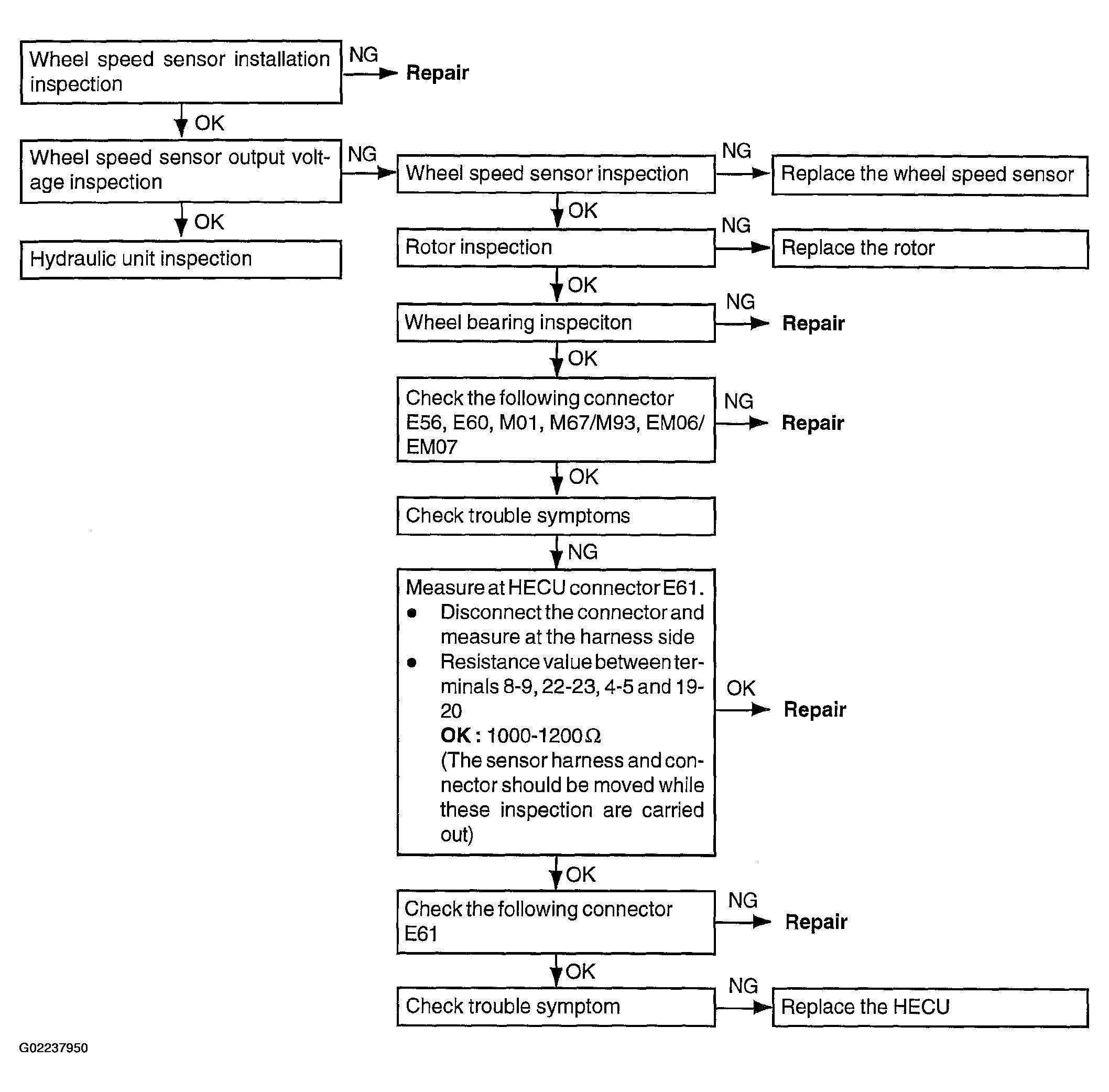

Fig 7: Inspection Procedure 4 Diagnostic Flow Chart

Inspection Procedure 5

Fig 8: Inspection Procedure 5 Table

Fig 9: Inspection Procedure 5 Diagnostic Flow Chart
