Automatic Transaxle Shift Control: Removal

Remove the console box assembly.
Remove the knob installation screws.
Disconnect the overdrive switch connector, remove the 3 connector pins from connector with small driver, and then remove selector knob assembly.

Fig 1: Removing Overdrive Switch & Selector Knob
Disconnect the position indicator light connector.
Remove the shift lever indicator assembly.

Fig 2: Removing Shift Indicator
Remove self lock pin from the link.

Fig 3: Identifying Self Lock Pin
Remove the clip from the shift lever side.

Fig 4: Removing Clip From Shift Lever Side
Remove the bolt-washer assembly located on dash panel.

Fig 5: Removing The Bolt-Washer Assembly Located On Dash Panel

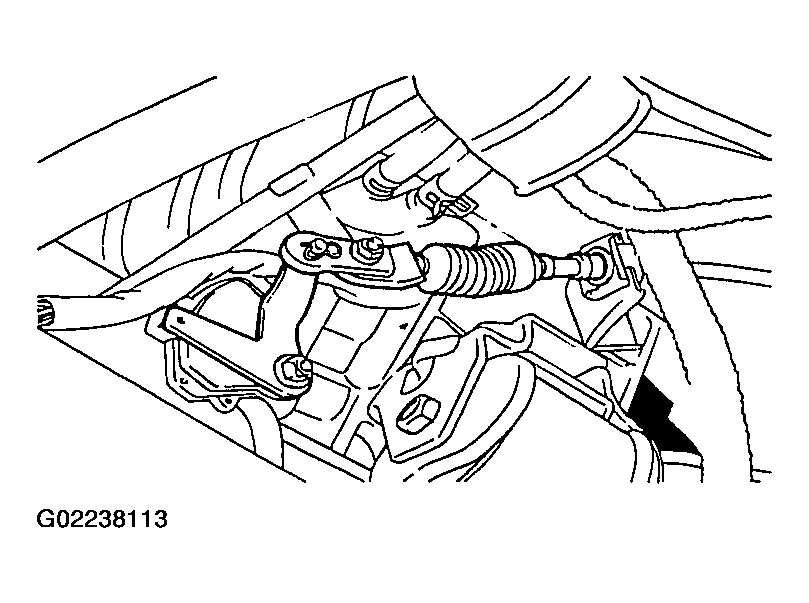

Remove the clip from the transaxle side.
Remove the transaxle control cable assembly.

Fig 6: Removing Transaxle Control Cable
