Automatic Transaxle System Troubleshooting
›
Troubleshooting (A/T)
›
Checking The Control System (When A GI-Scan Is Used)
Checking The Control System (When A GI-Scan Is Used)

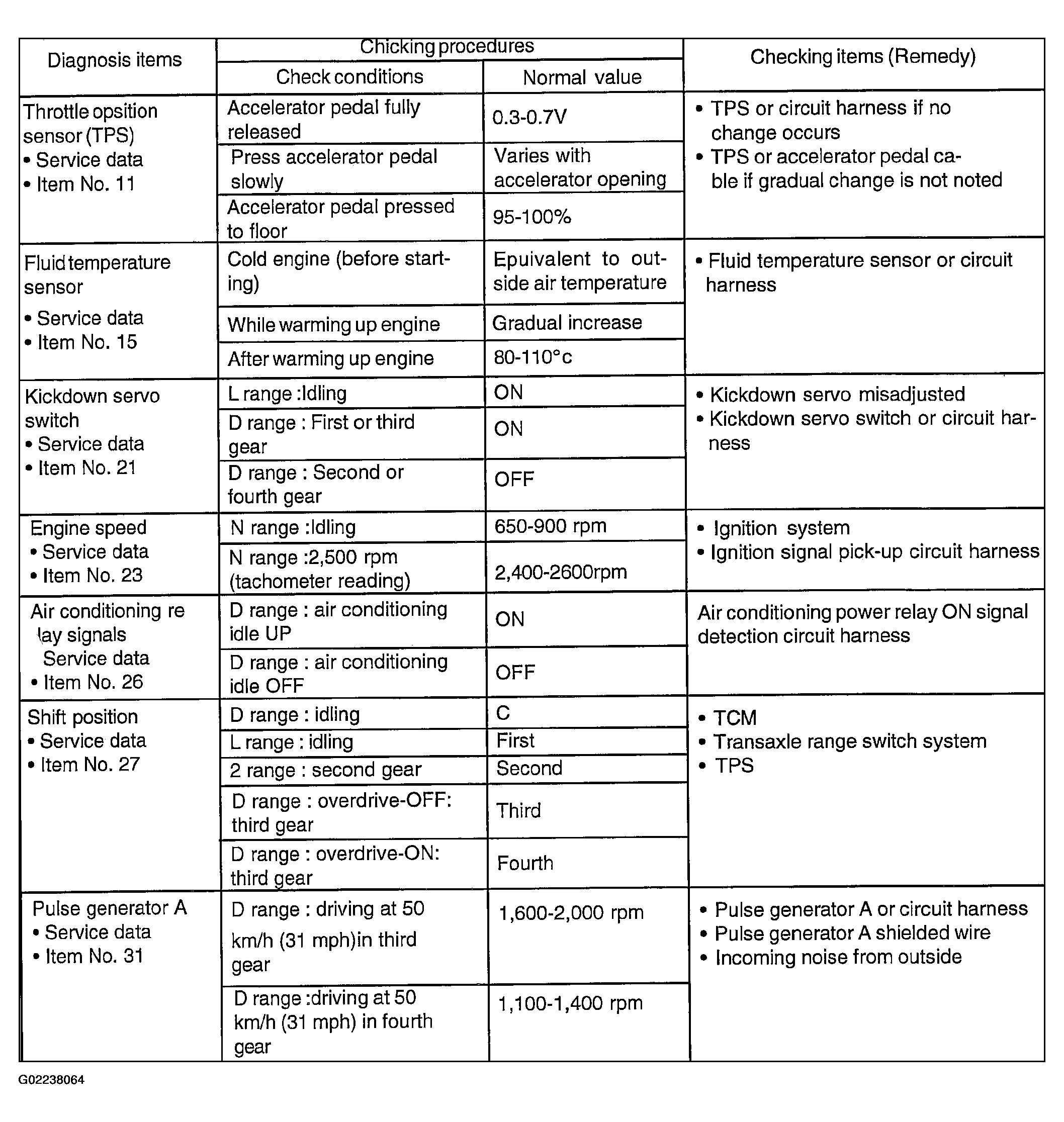

Fig 1: Checking The Control System With A Gi-Scan (1 Of 2)

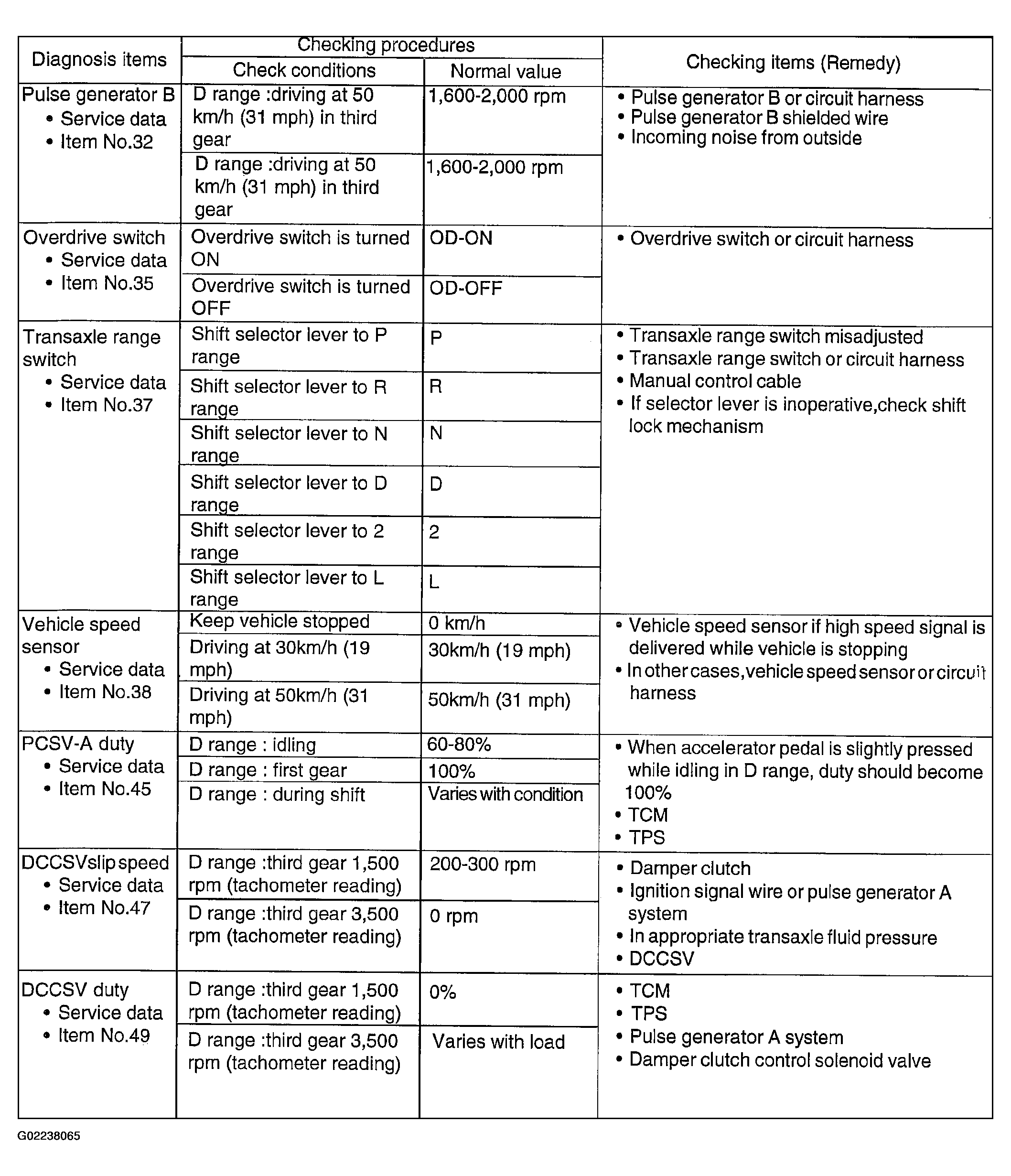

Fig 2: Checking The Control System With A Gi-Scan (2 Of 2)
