Automatic Transaxle System Troubleshooting
›
Troubleshooting (A/T)
›
Inspection Procedure 11
Inspection Procedure 11

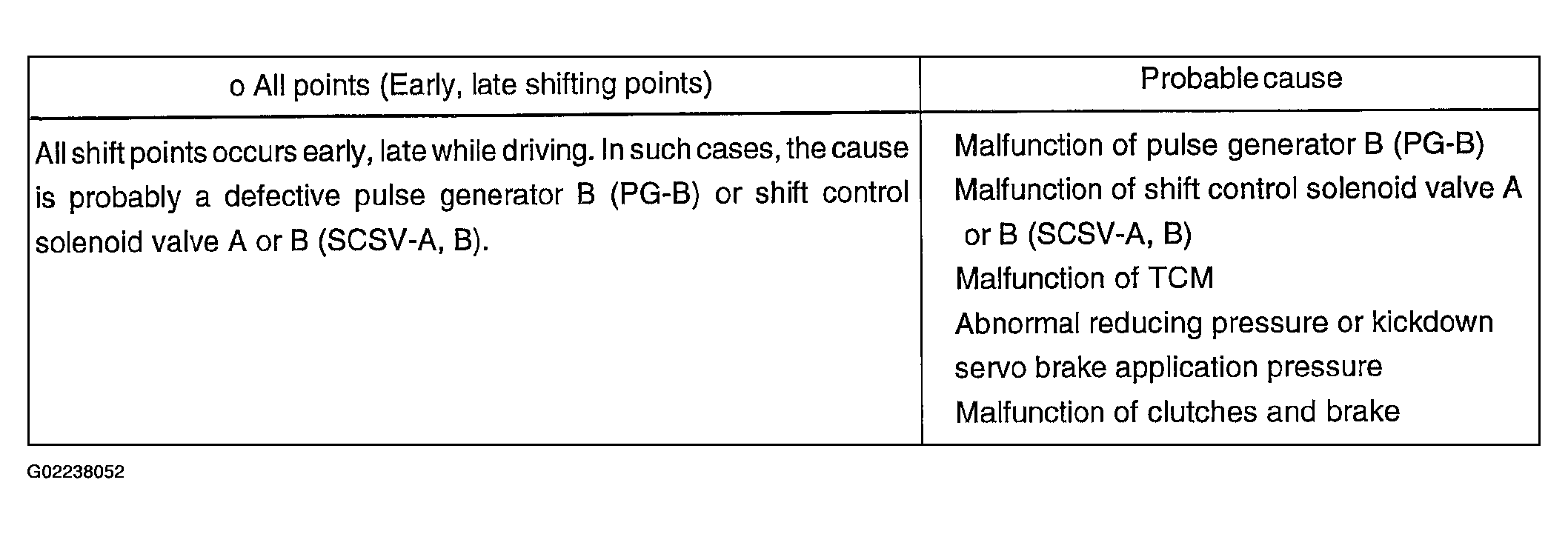

Fig 1: All Points (Displaced Shifting Points), Possible Causes Table

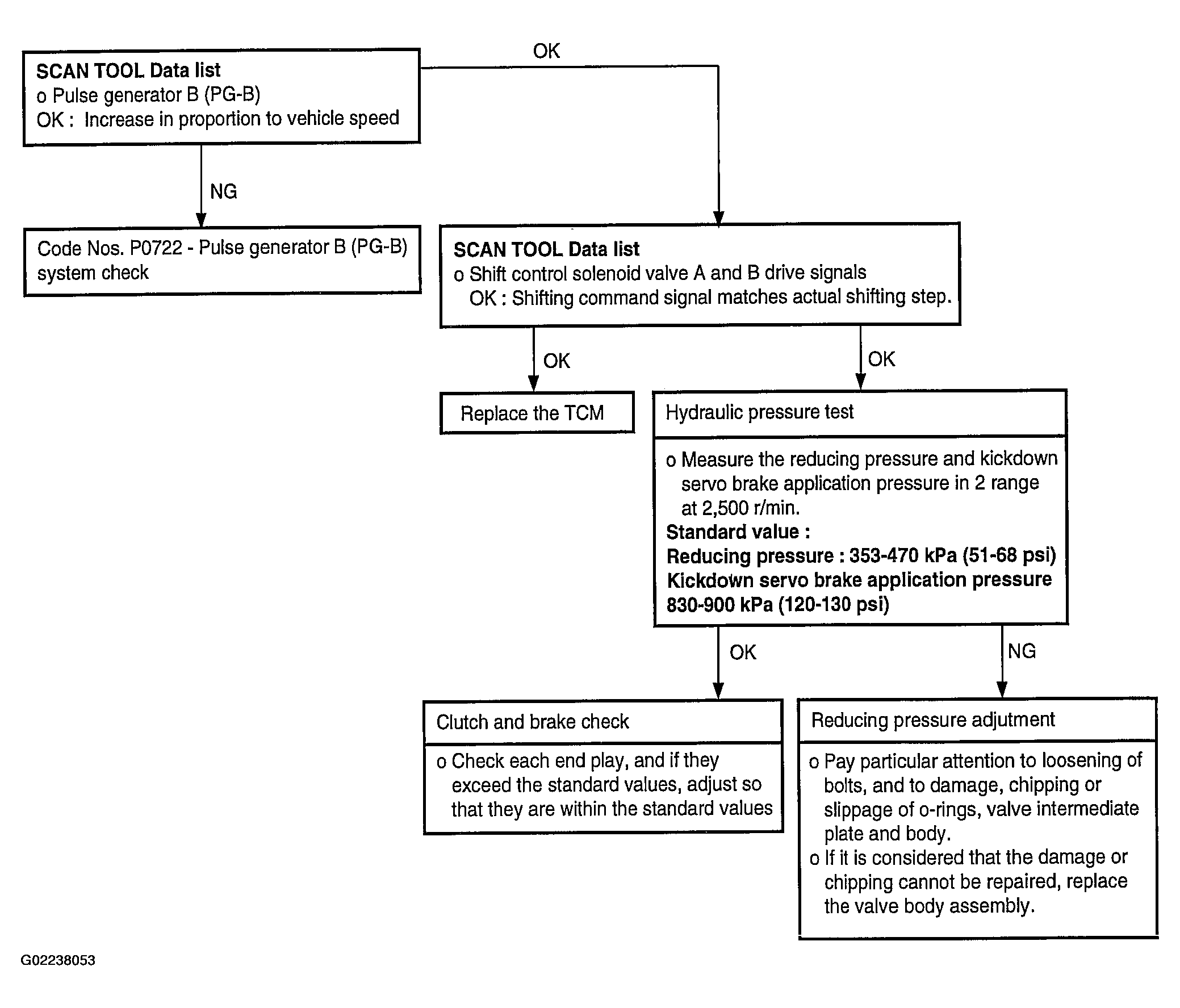

Fig 2: All Points (Displaced Shifting Points), Diagnostic Flow Chart
