Automatic Transaxle System Troubleshooting
›
Troubleshooting (A/T)
›
Inspection Procedure 12
Inspection Procedure 12

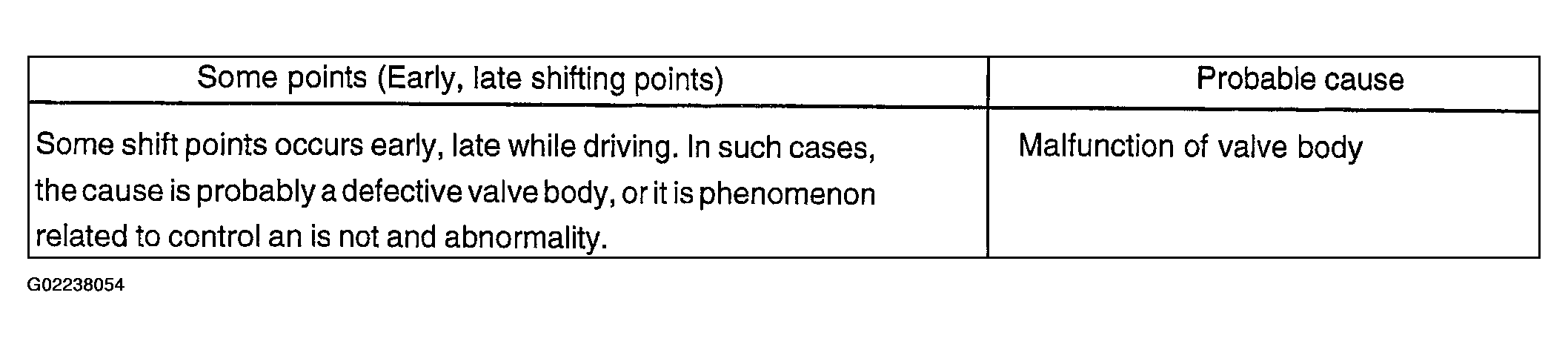

Fig 1: Some Points (Displaced Shifting Points), Possible Causes Table

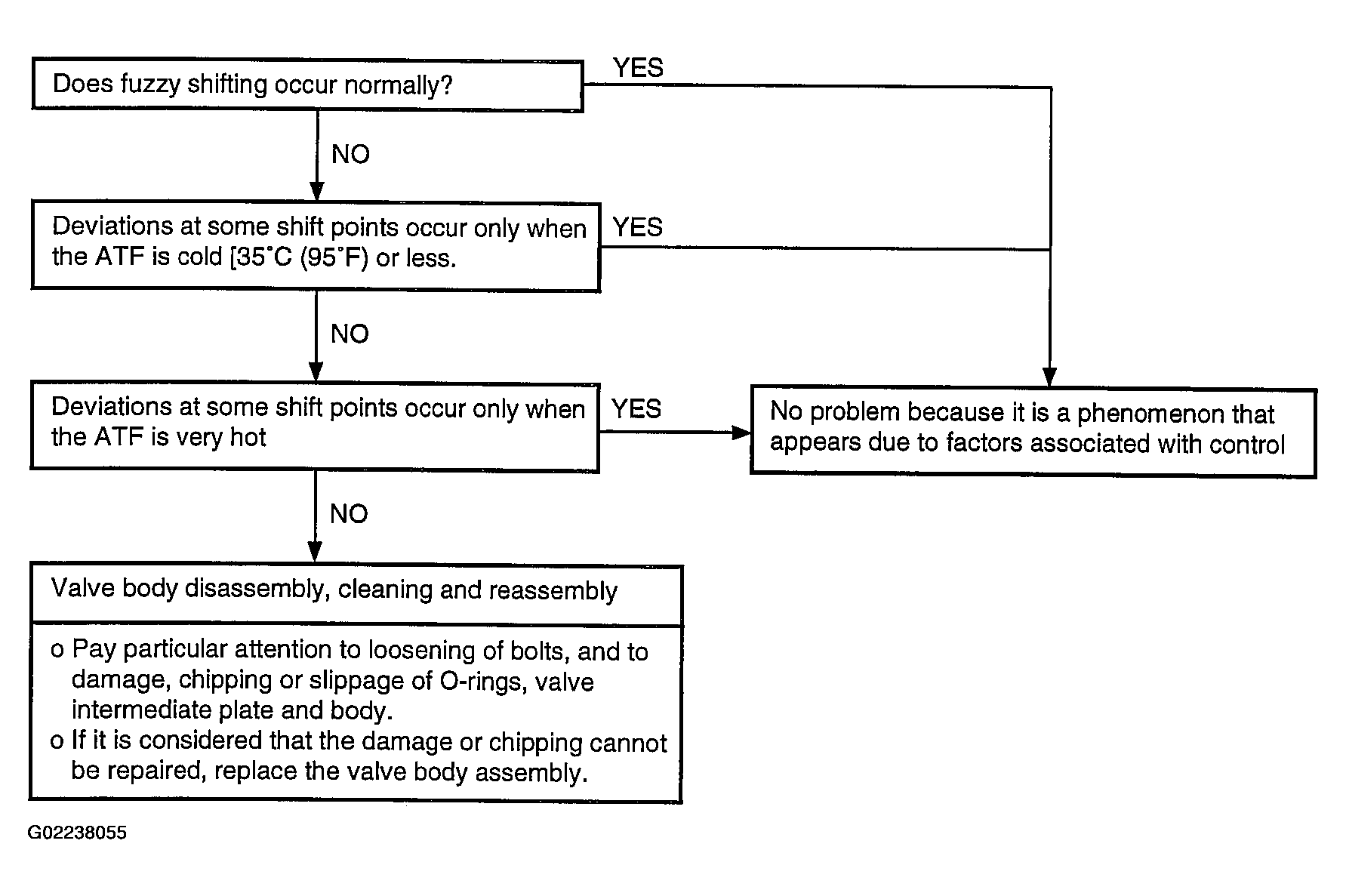

Fig 2: Some Points (Displaced Shifting Points), Diagnostic Flow Chart
