Automatic Transaxle System Troubleshooting
›
Troubleshooting (A/T)
›
Inspection Procedure 13
Inspection Procedure 13

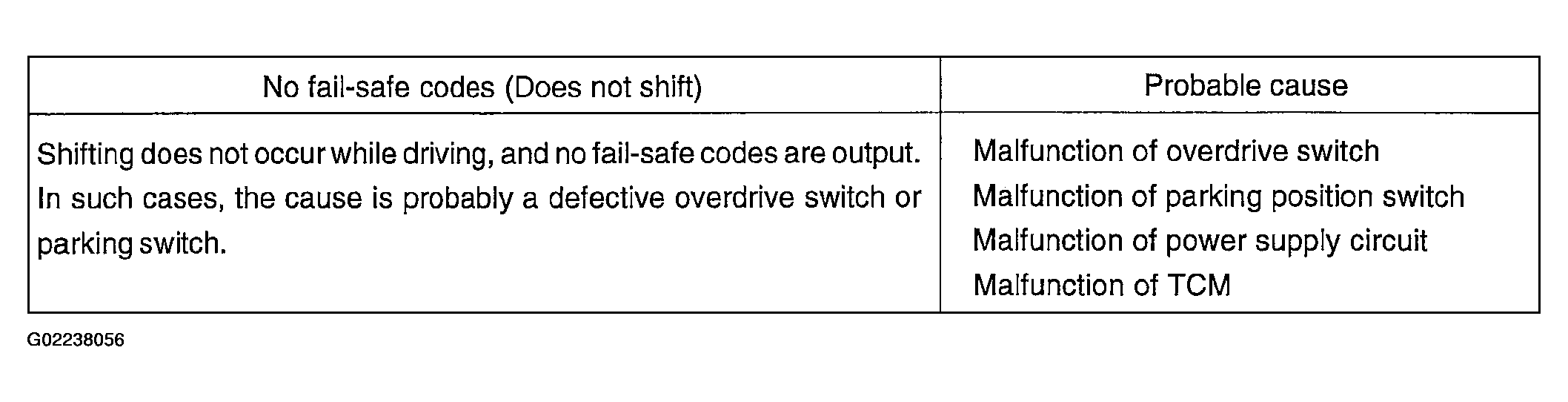

Fig 1: No Fail Safe Codes (Does Not Shift) Possible Causes Table

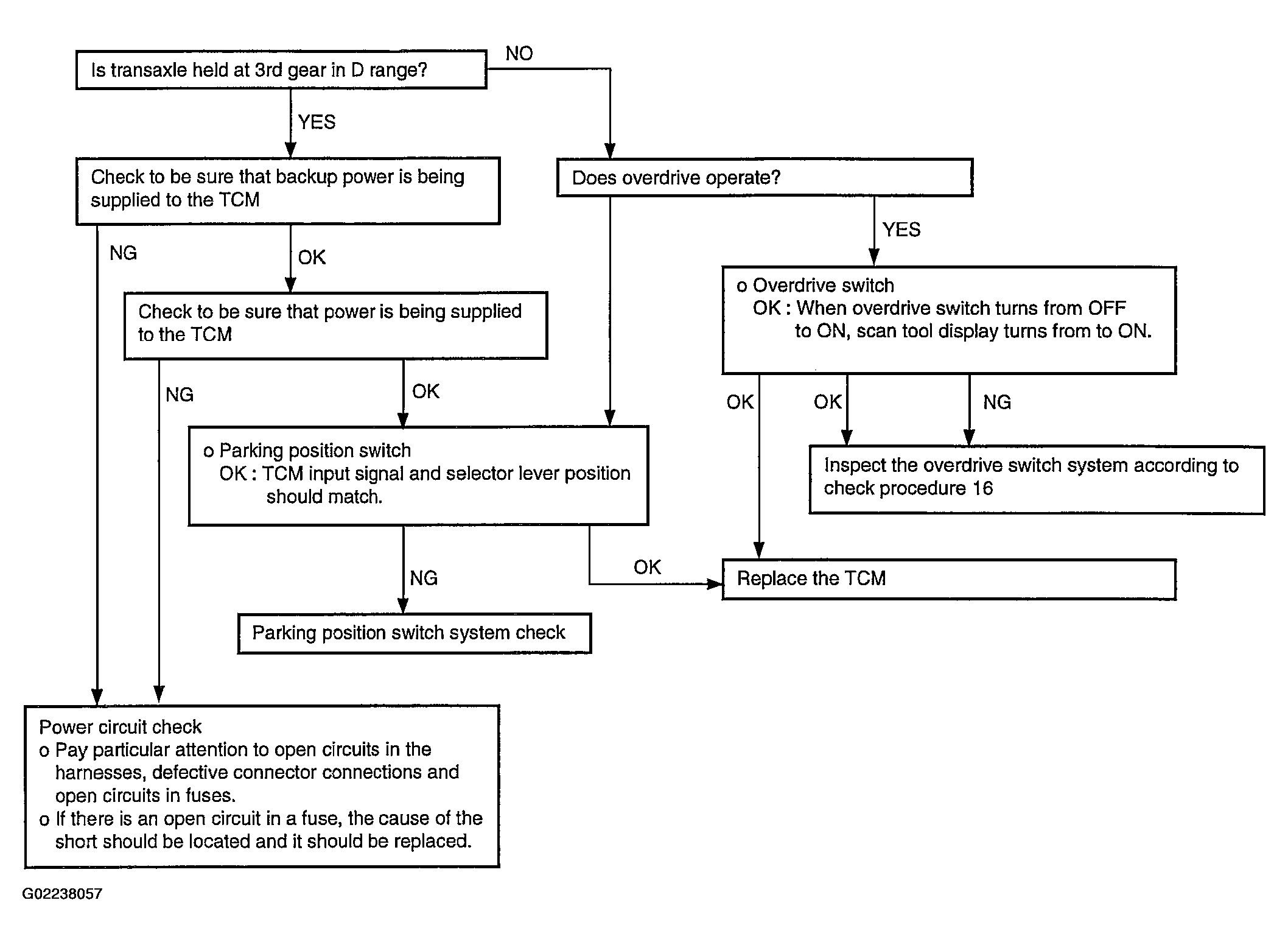

Fig 2: No Fail Safe Codes (Does Not Shift) Diagnostic Flow Chart
