Automatic Transaxle System Troubleshooting
›
Troubleshooting (A/T)
›
Inspection Procedure 4
Inspection Procedure 4

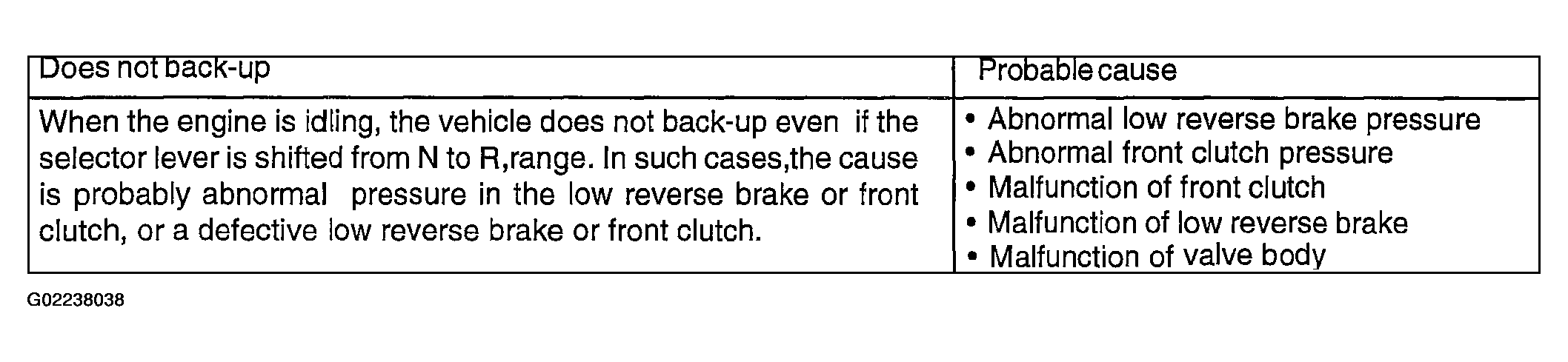

Fig 1: Does Not Back-Up Possible Causes Table

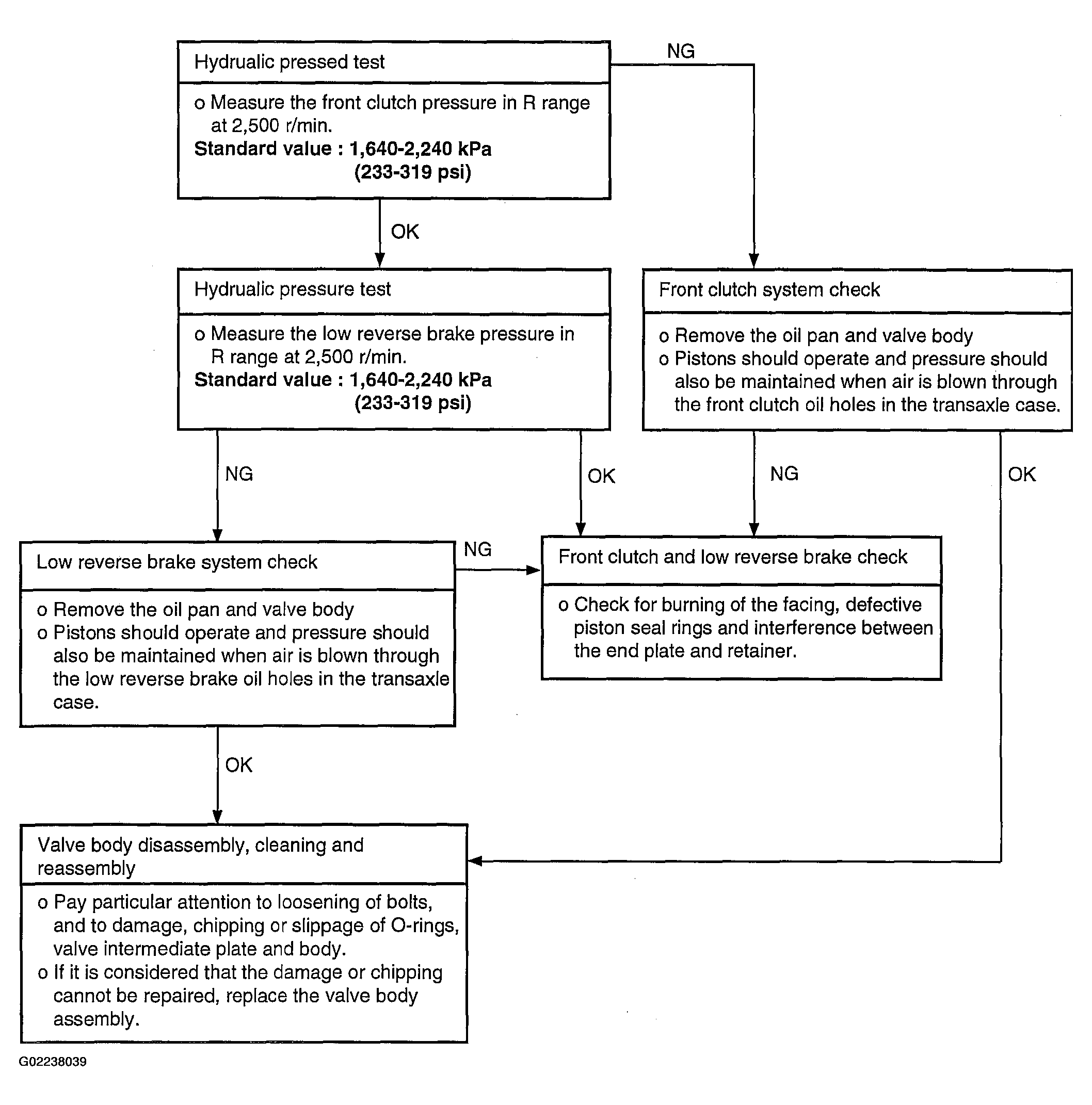

Fig 2: Does Not Back-Up Diagnostic Flow Chart
