Automatic Transaxle System Troubleshooting
›
Troubleshooting (A/T)
›
Inspection Procedure 5
Inspection Procedure 5

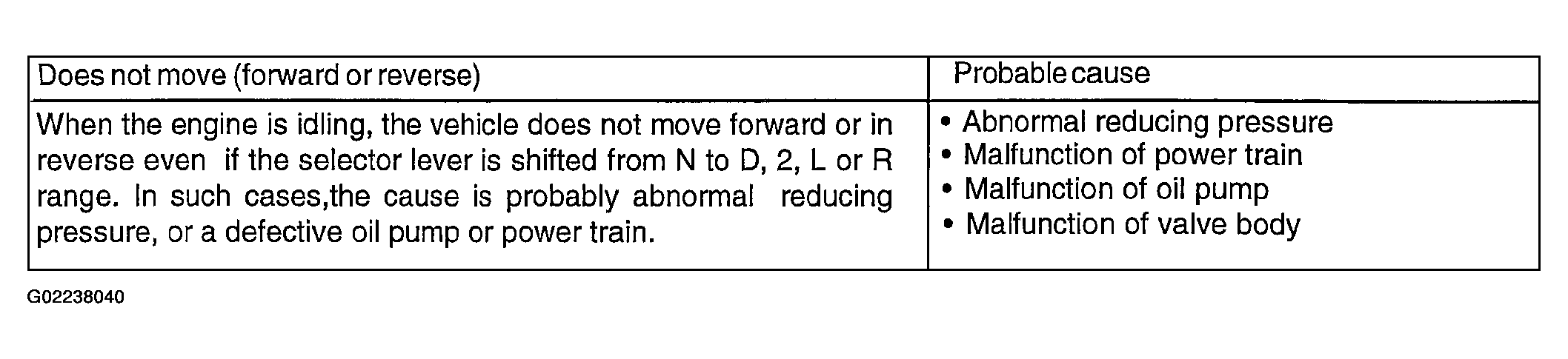

Fig 1: No Forward Or Reverse Possible Causes Table

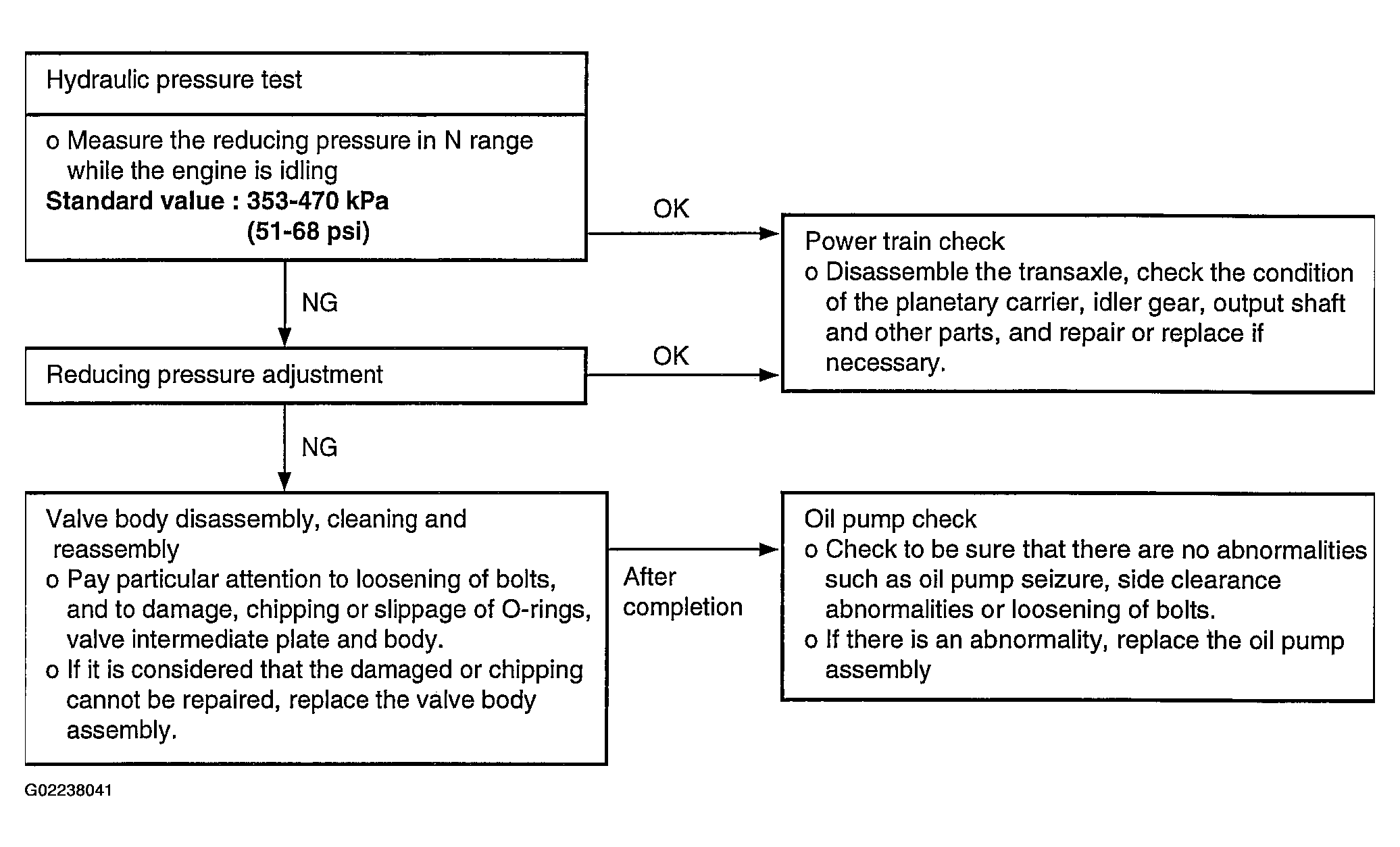

Fig 2: No Forward Or Reverse Diagnostic Flow Chart
