Automatic Transaxle System Troubleshooting
›
Troubleshooting (A/T)
›
Inspection Procedure 7
Inspection Procedure 7

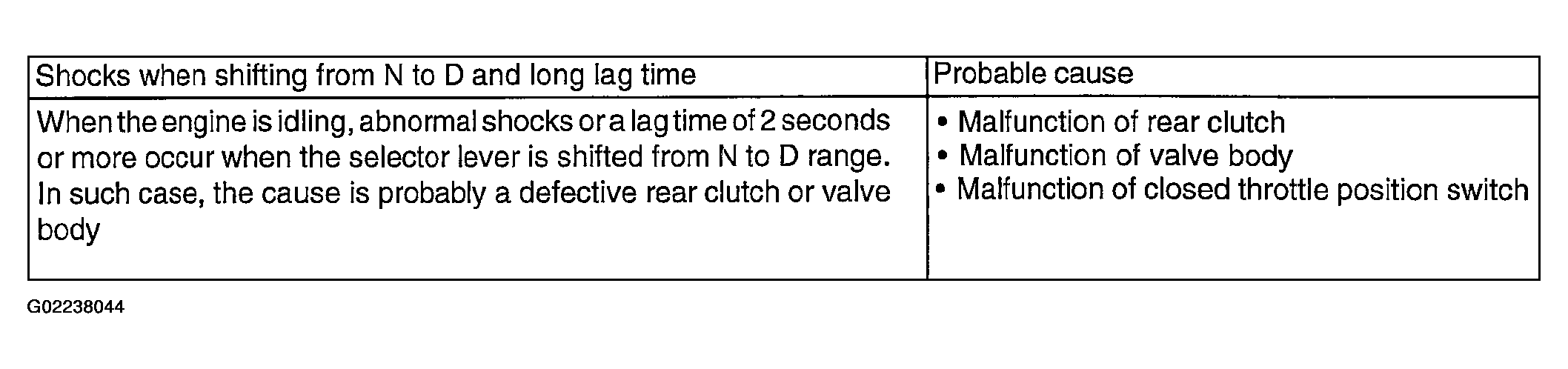

Fig 1: Shocks When Changing From Neutral-To-Drive & Time Lag, Possible Causes Table

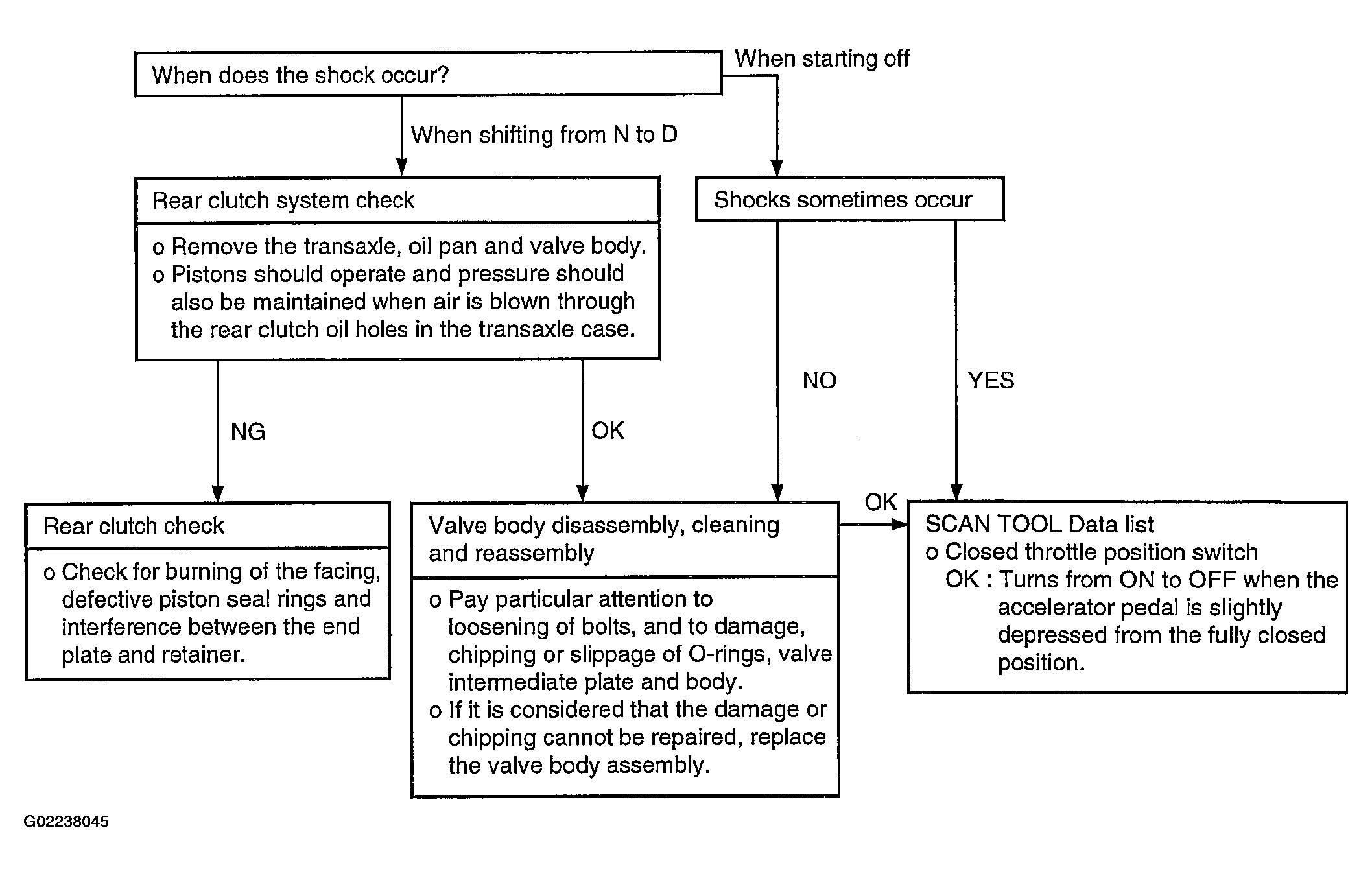

Fig 2: Shocks When Changing From Neutral-To-Drive & Time Lag Diagnostic Flow Chart
