Preliminary Steps If Oil Pressure Is Not Normal: Notes

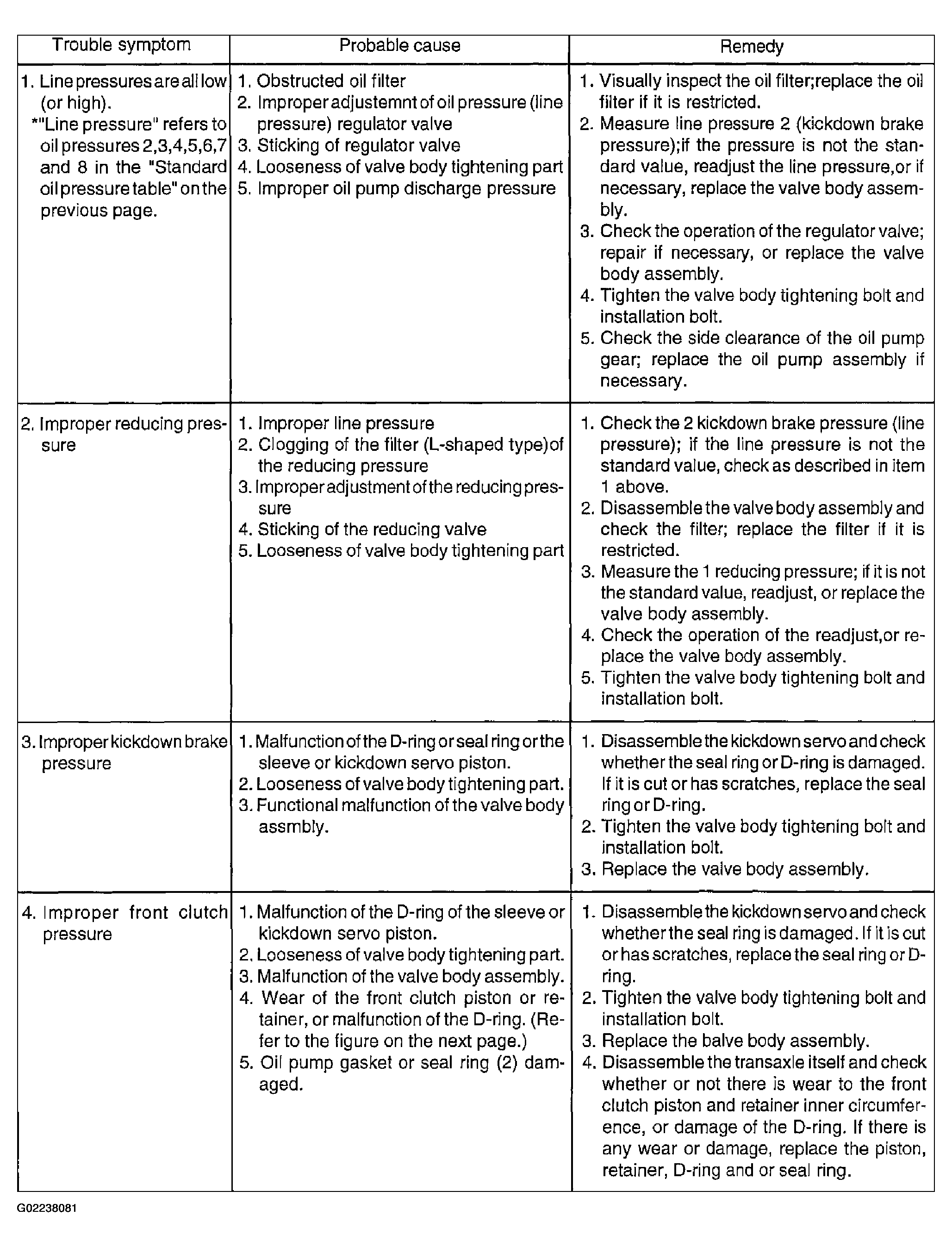

Fig 1: Symptom & Probable Cause Table (1 Of 2)

G02238081

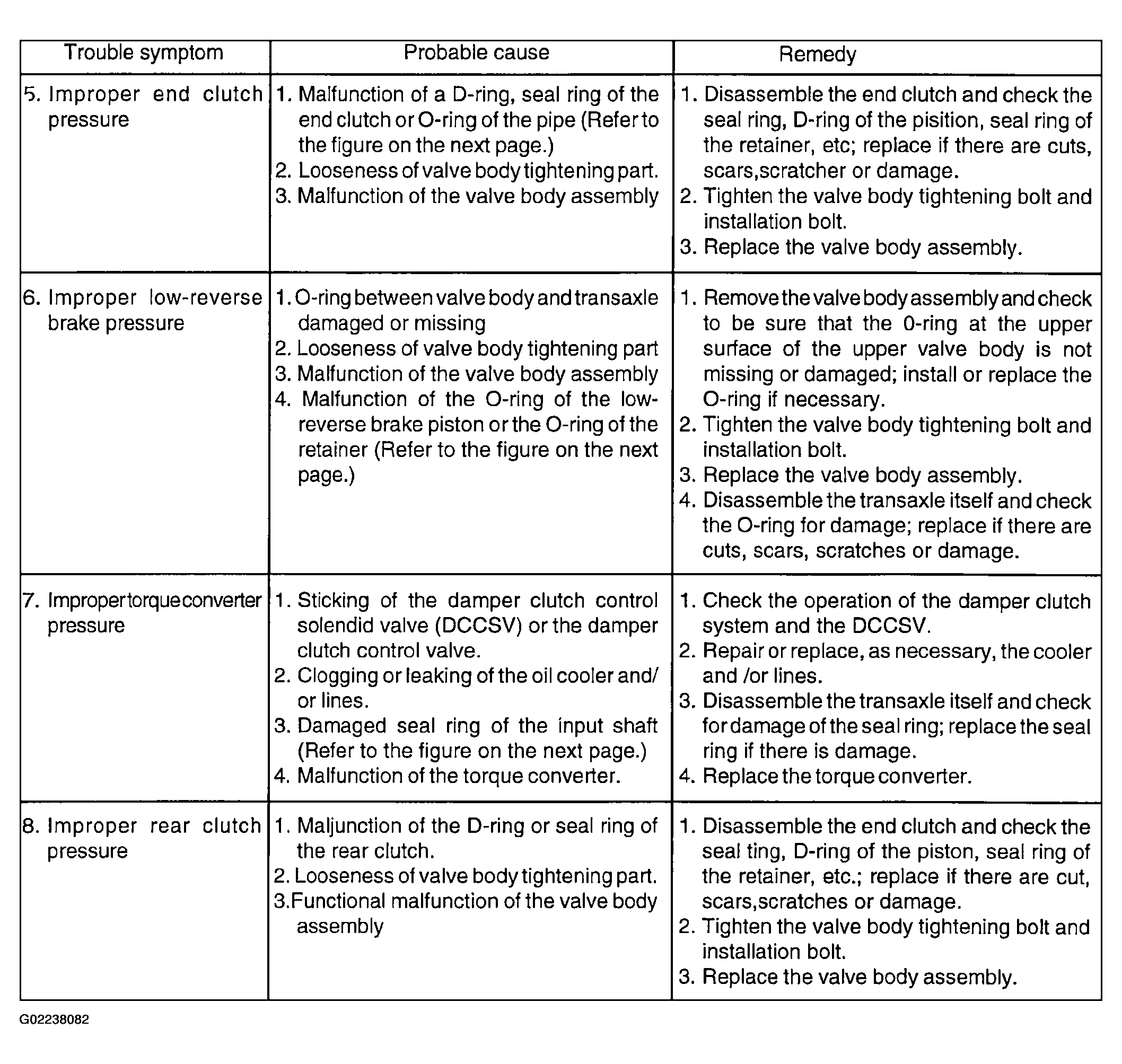

Fig 2: Symptom & Probable Cause Table (2 Of 2)

G02238082

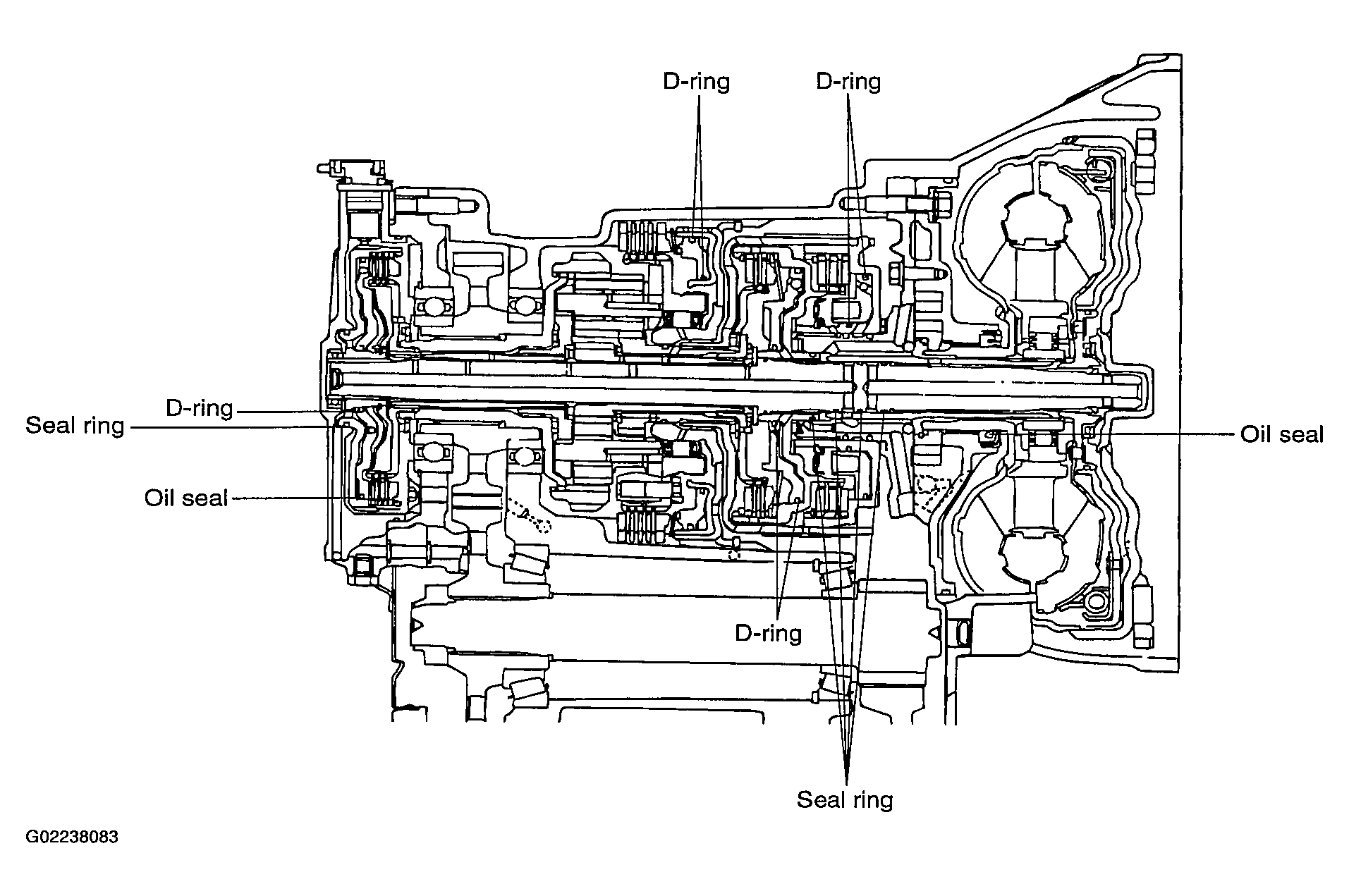

Fig 3: Identifying D-Rings & Oil Seals

G02238083
