Road Test

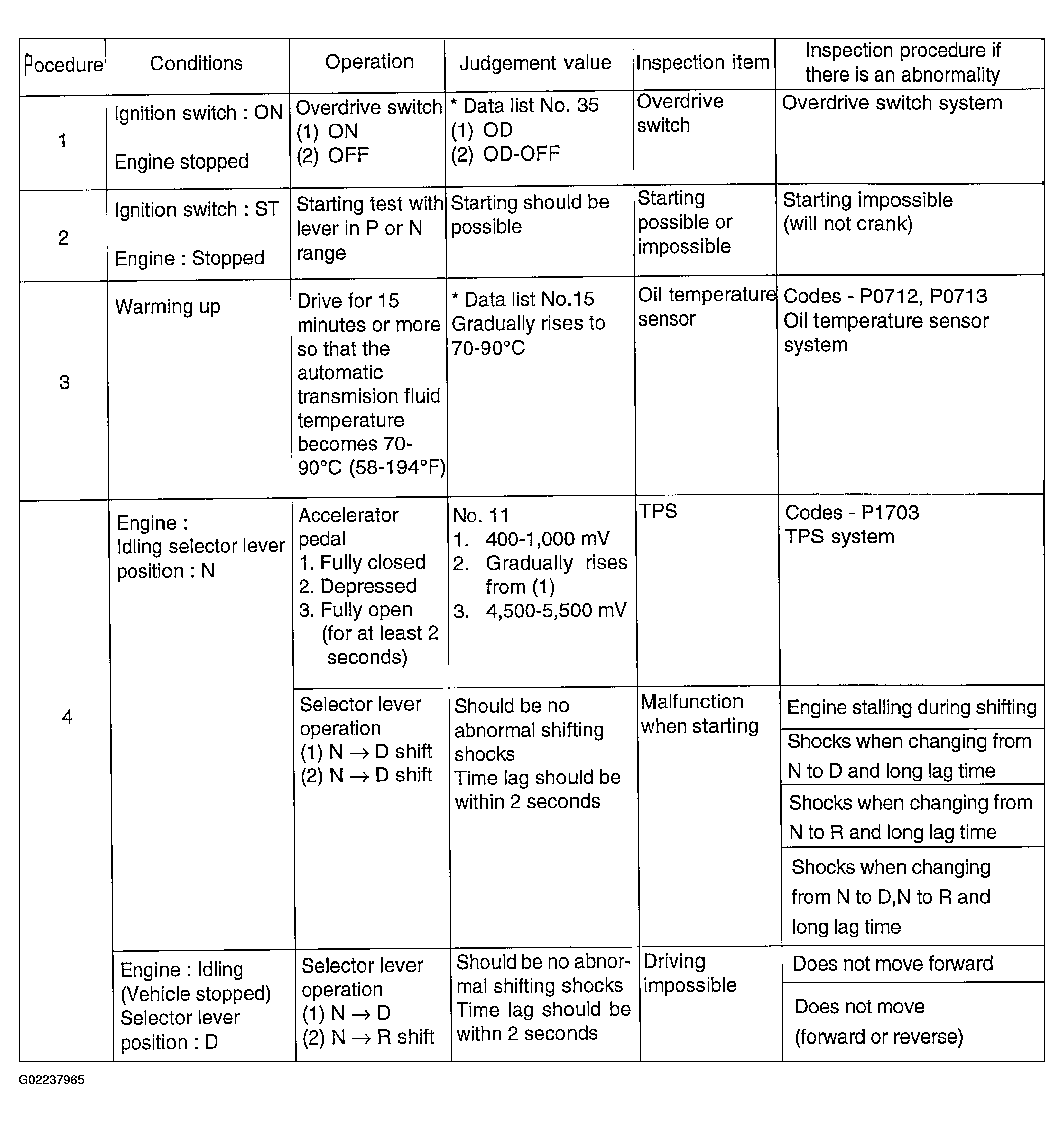

Fig 1: Road Testing Procedure Table (1 Of 4)

G02237965

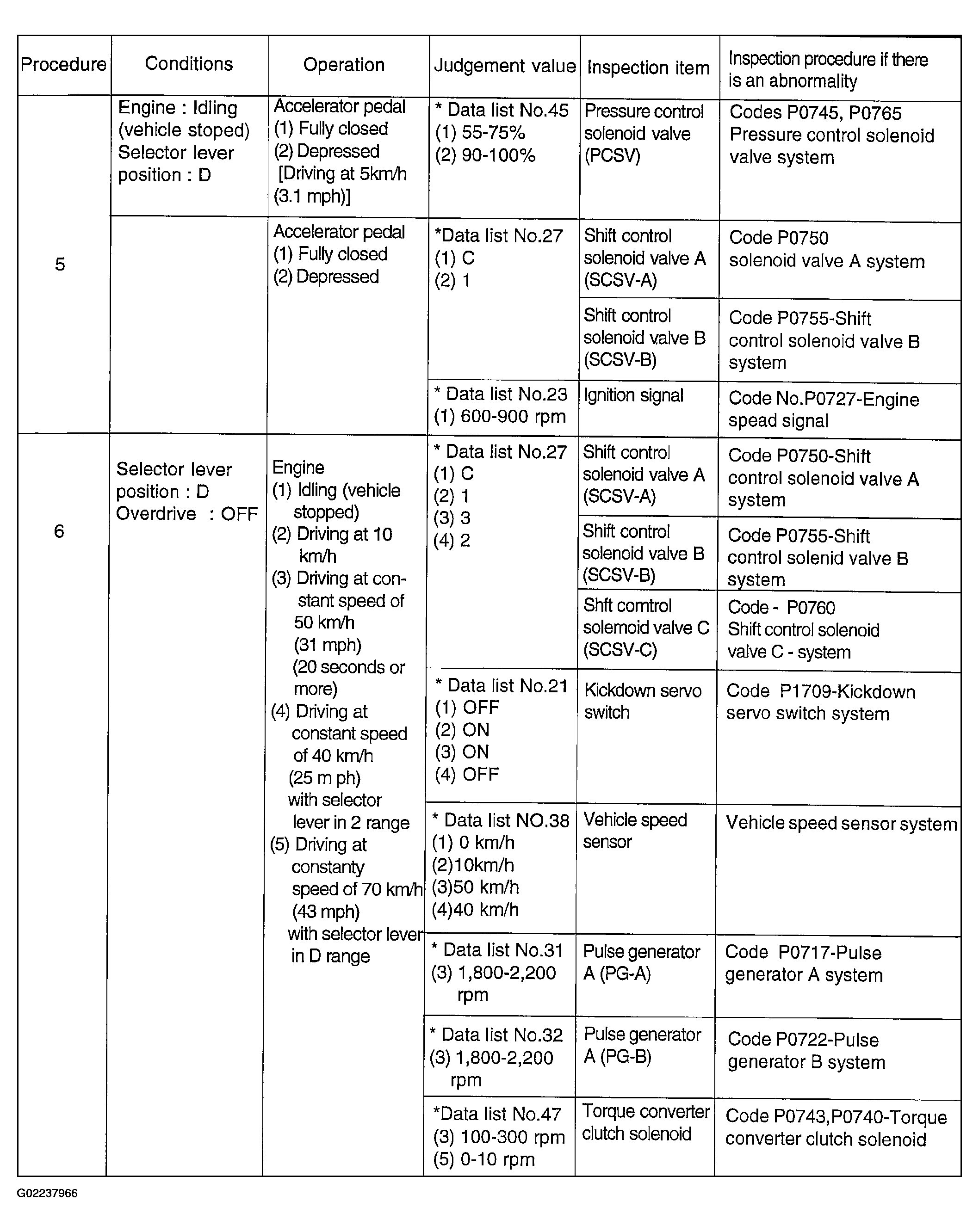

Fig 2: Road Testing Procedure Table (2 Of 4)

G02237966

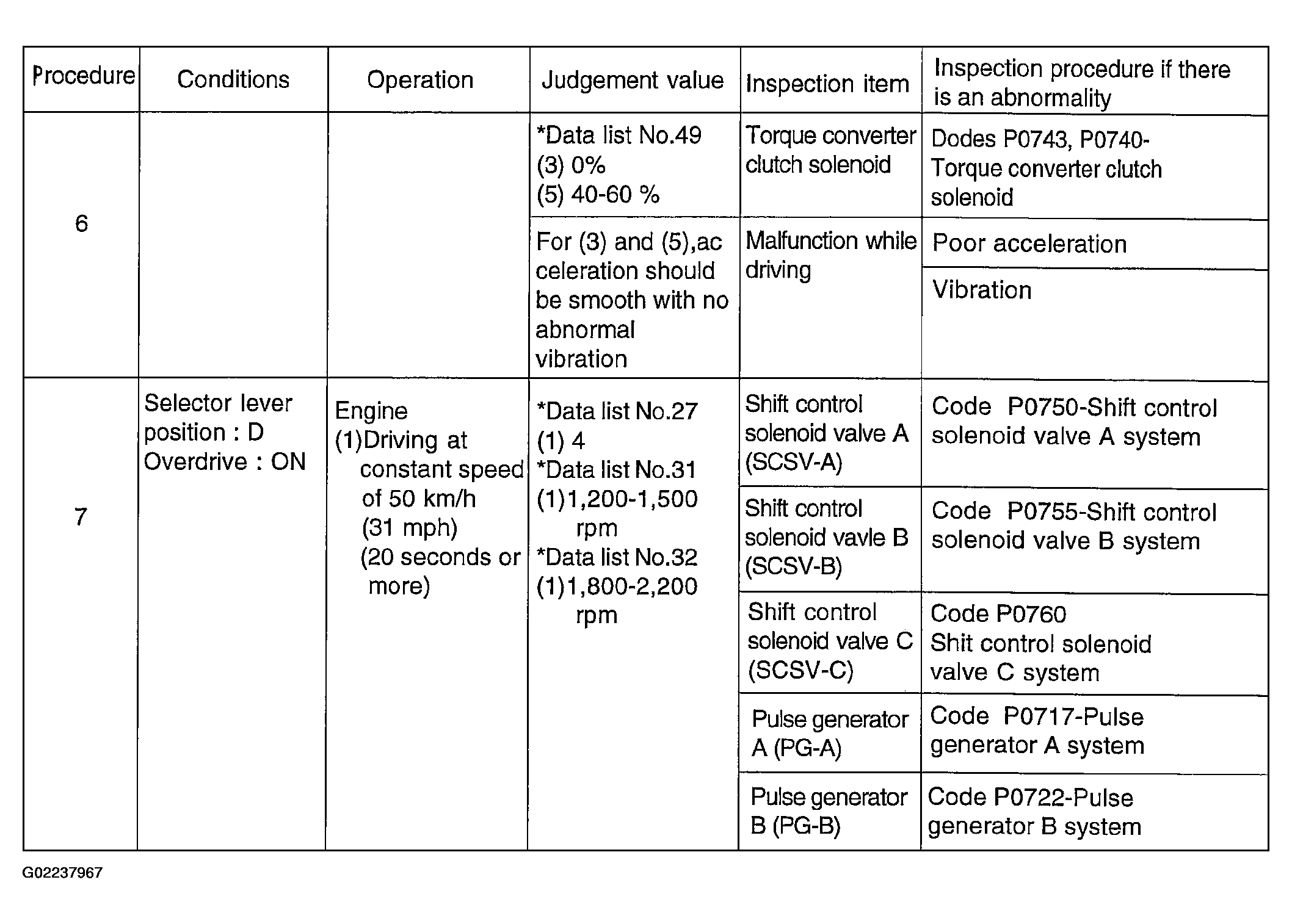

Fig 3: Road Testing Procedure Table (3 Of 4)

G02237967

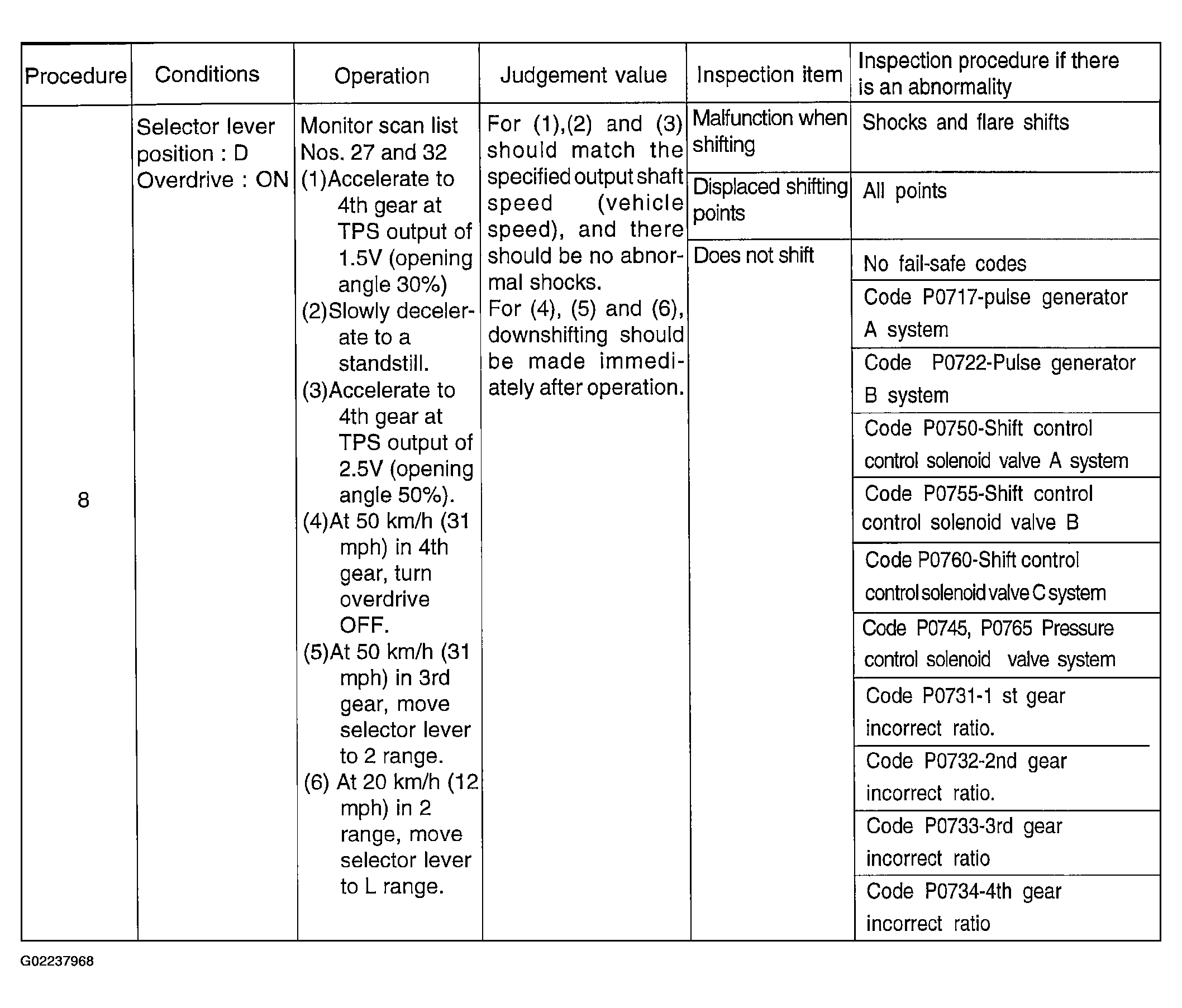

Fig 4: Road Testing Procedure Table (4 Of 4)

G02237968
