Engine Compartment Junction Box

NOTE: Engine compartment junction box is located on driver's side of engine compartment, next to battery. See Fig 1 .

Fig 1: Locating Engine Compartment Junction Box

Courtesy of HYUNDAI MOTOR CO.

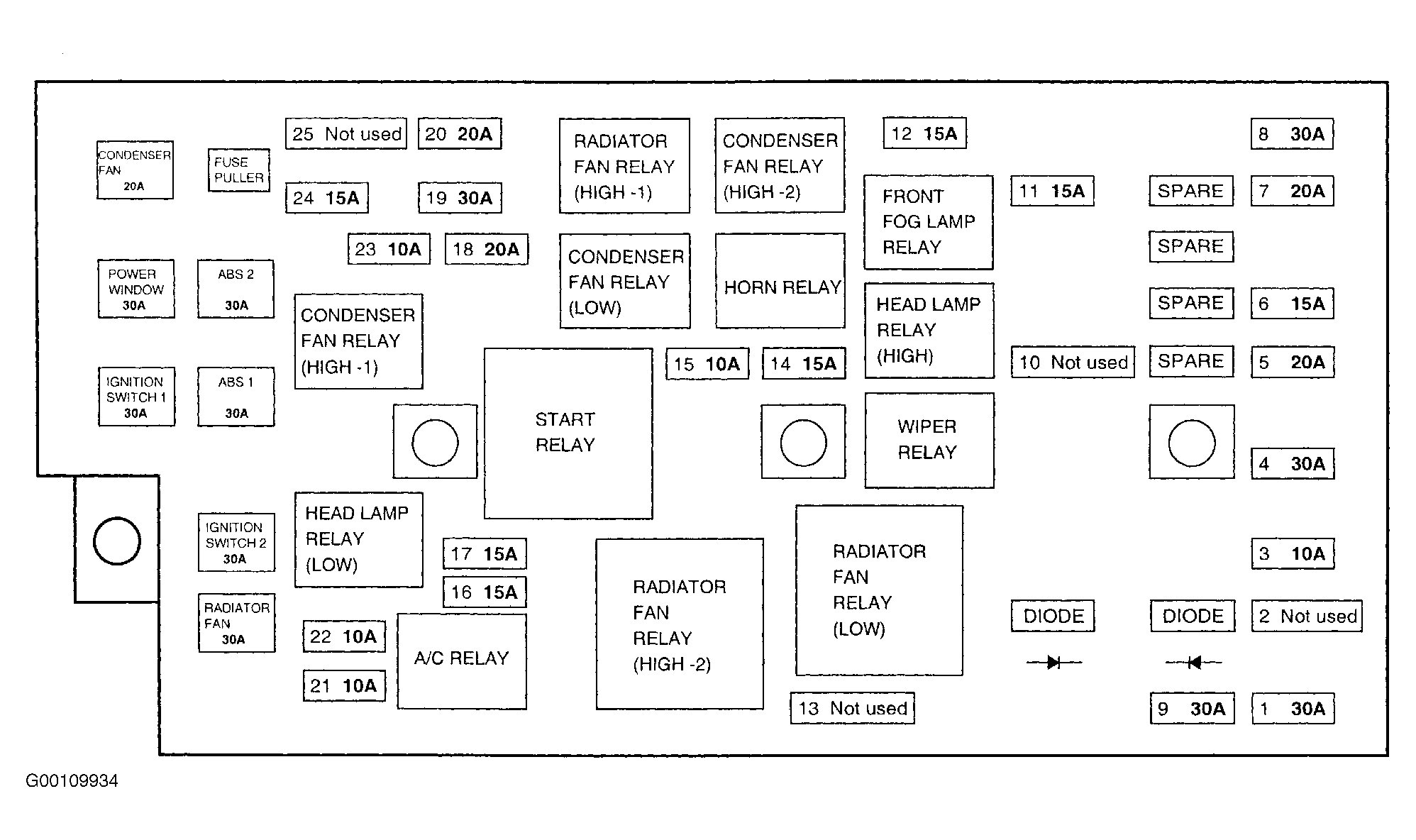

Fig 2: Identifying Engine Compartment Junction Box Components

Courtesy of HYUNDAI MOTOR CO.

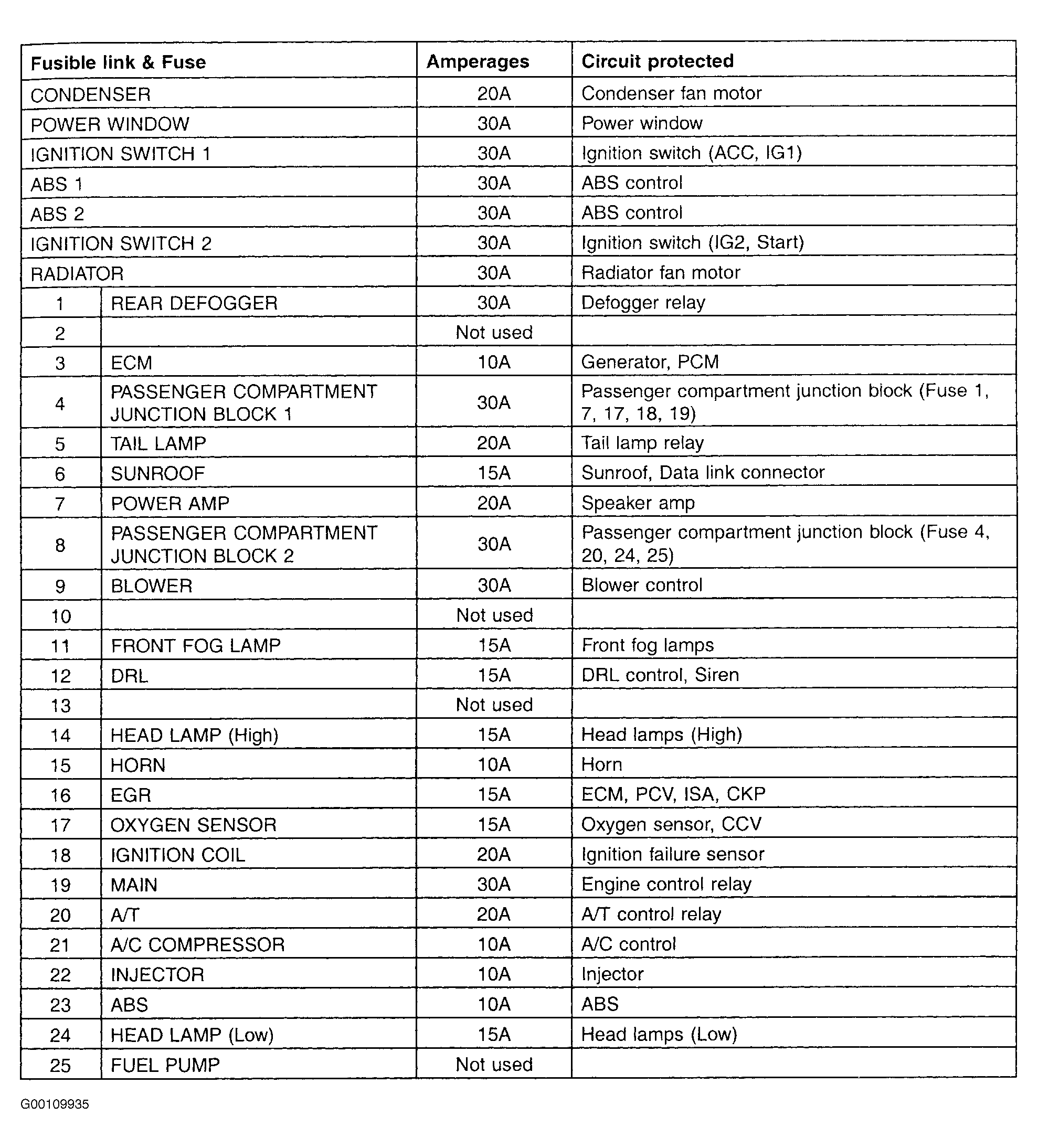

Fig 3: Engine Compartment Junction Box Legend

Courtesy of HYUNDAI MOTOR CO.
