Procedure To Install The Lock Cam

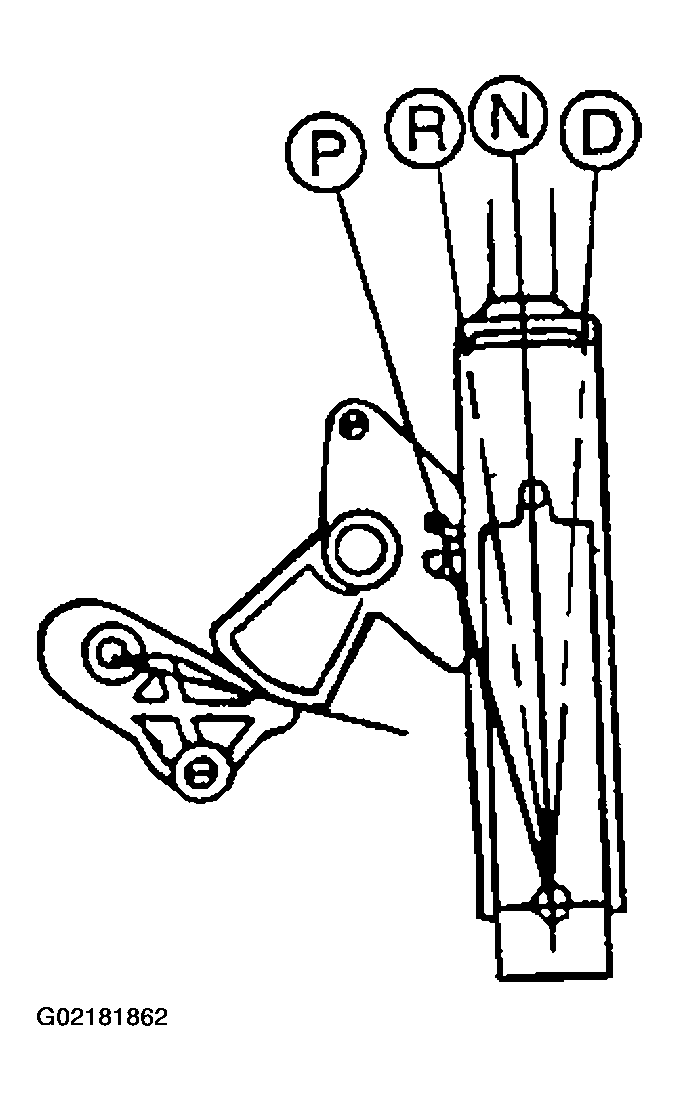

Fig 1: Identifying A/T Shift Lever Positions

1. Move A/T lever to "P" position to set the key lock cam and the shift lock cam as shown in Fig 2 .
   • Check that the key lock cam is located at "B" by the detent pin.
   • Check that the shift lock cam is located at "A".
   Fig 2: Setting The Key Lock Cam & The Shift Lock Cam


2. Check that the key cylinder is at "LOCK".
