Automatic Transaxle Shift Control System
›
Automatic Transaxle Shift Control
›
Notes
Automatic Transaxle Shift Control: Notes

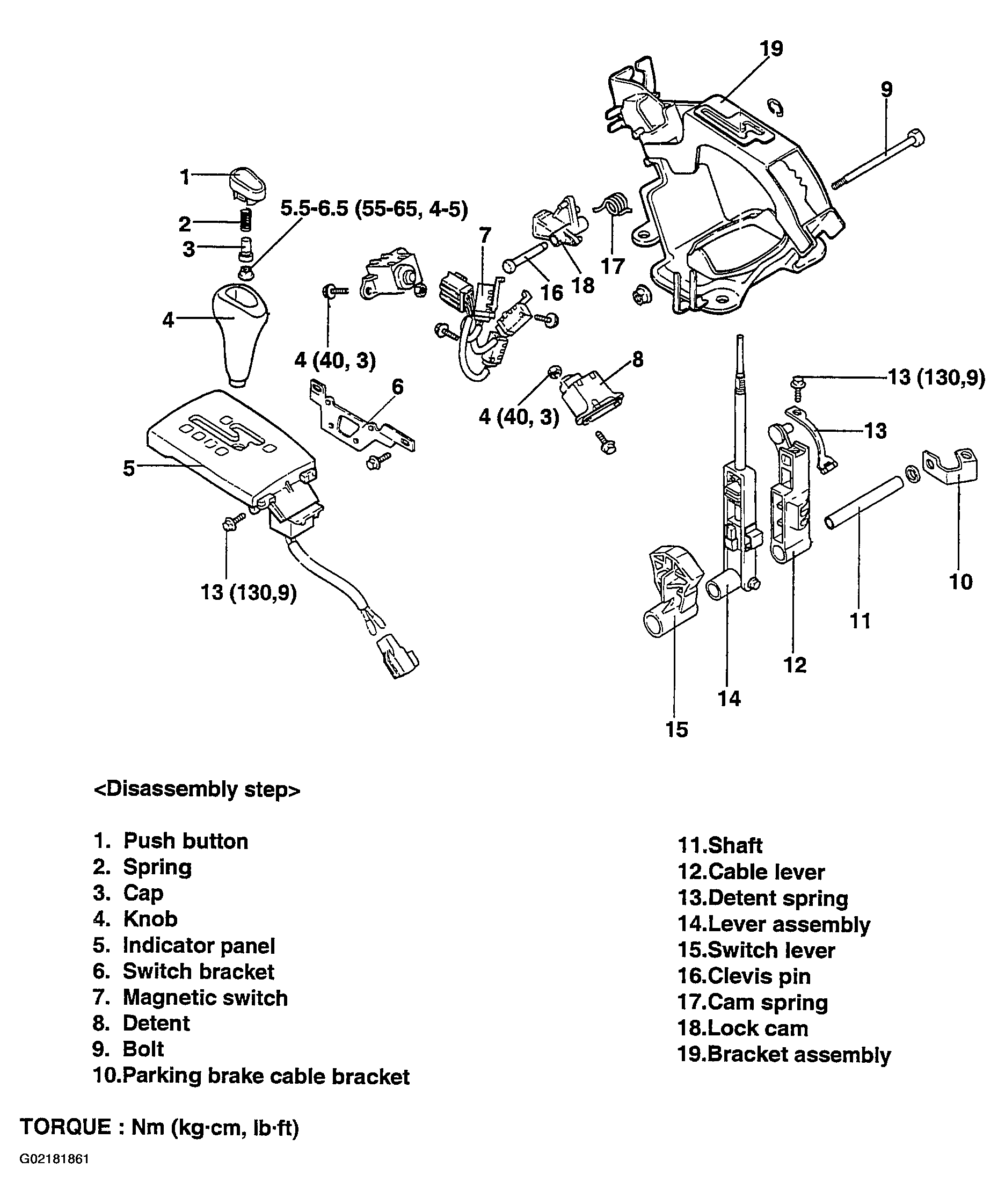

Fig 1: Automatic Transaxle Shift Control Components
