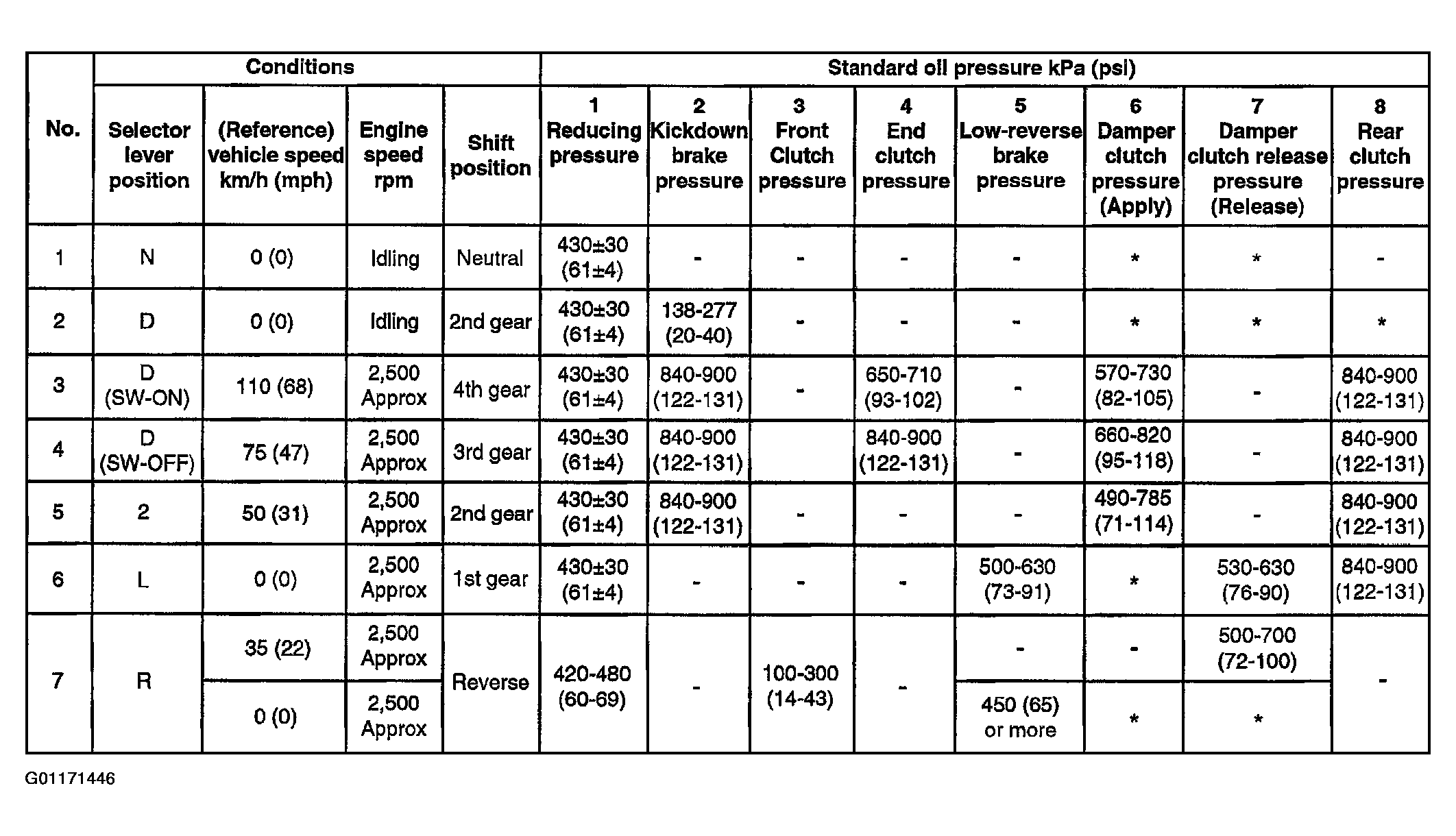

Standard Oil Pressure Table
Courtesy of HYUNDAI MOTOR CO.
NOTE:
must be 19.6 kPa (2.8 psi) or less.
SW-ON: Switch ON the overdrive control switch.
SW-OFF: Switch OFF the overdrive control switch.
*: Hydraulic pressure is generated, but not the standard value.
