Automatic Transaxle System
›
Automatic Transaxle System
›
Road Test
Road Test

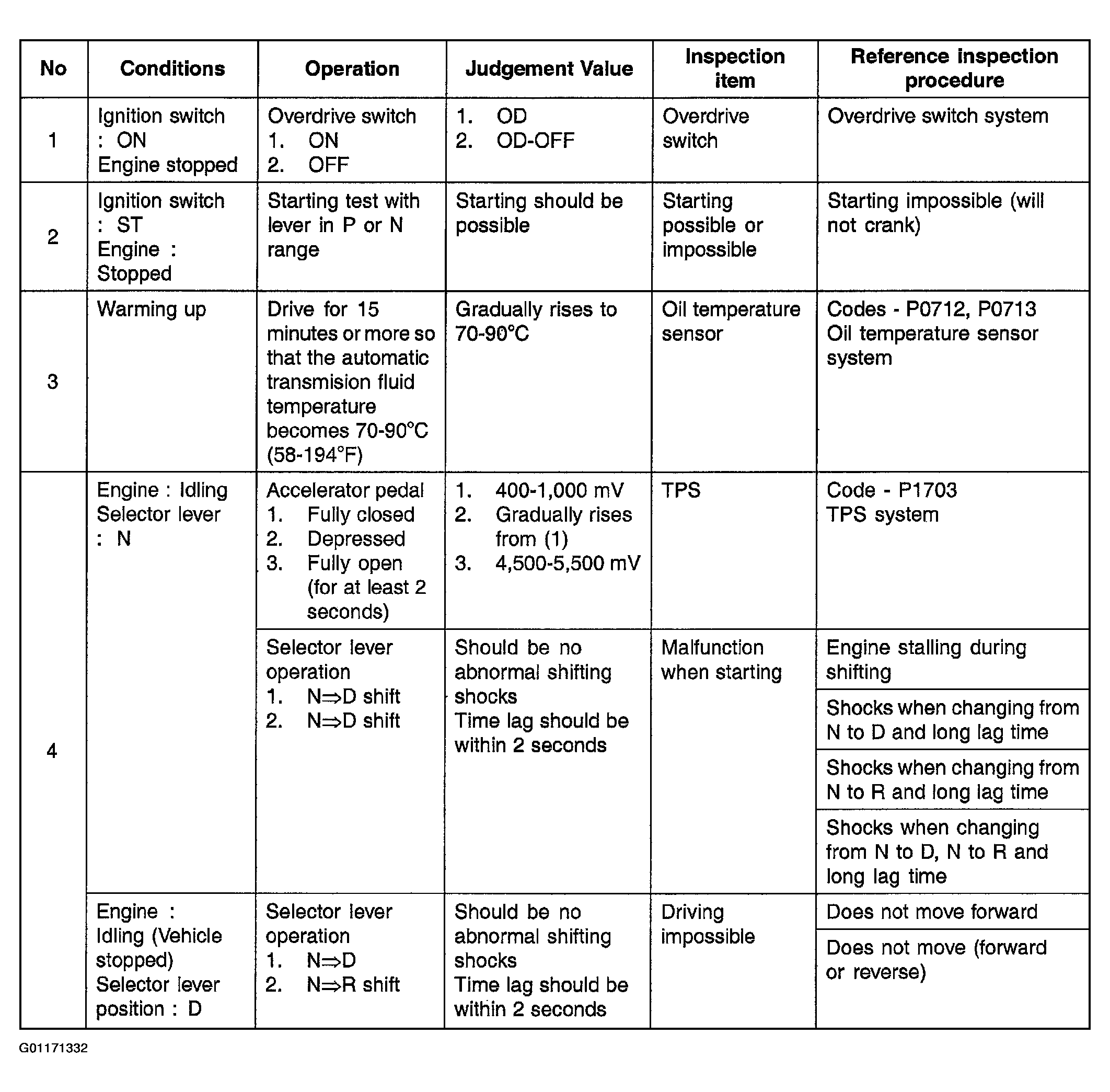

Fig 1: Road Test Table (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

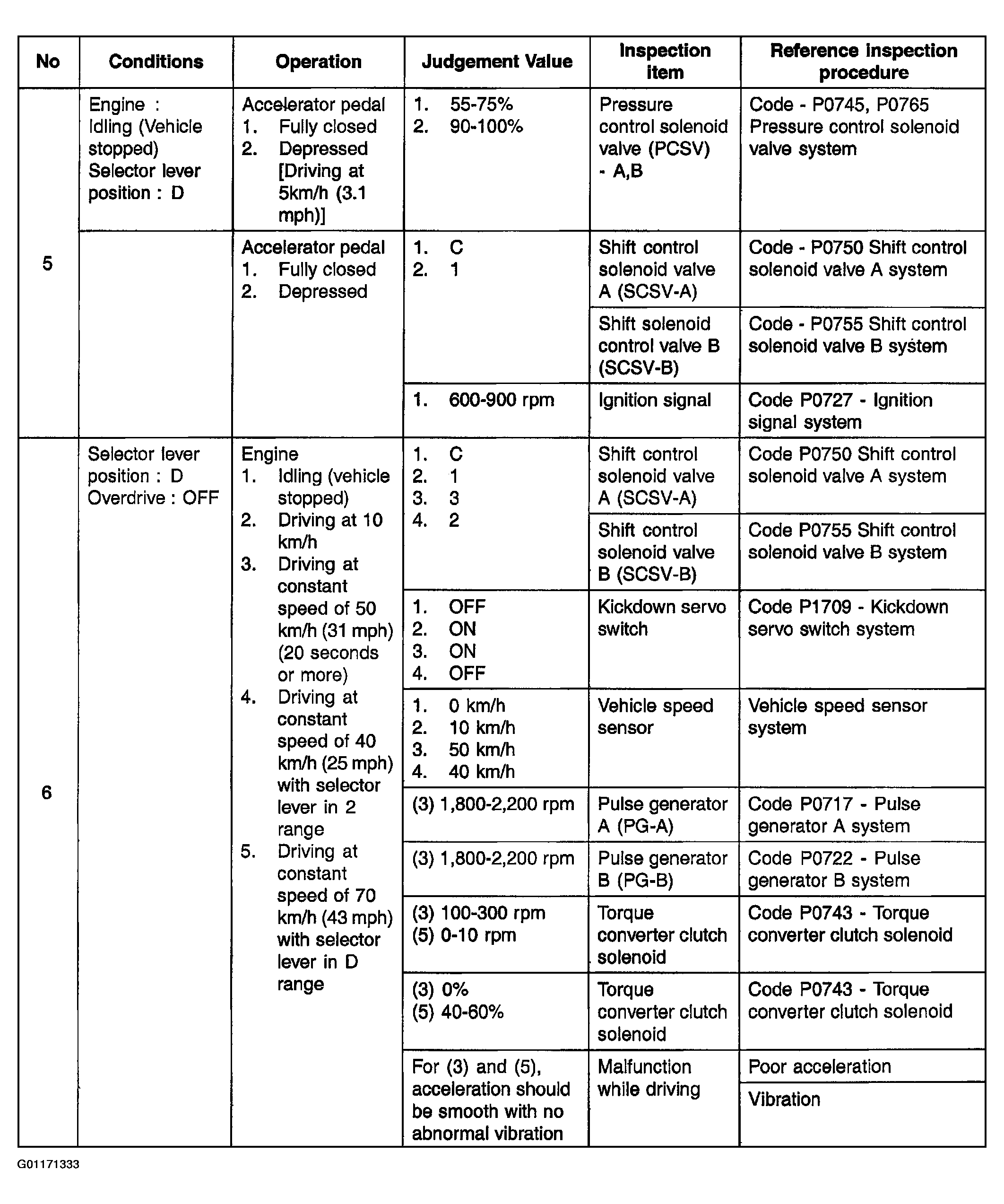

Fig 2: Road Test Table (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

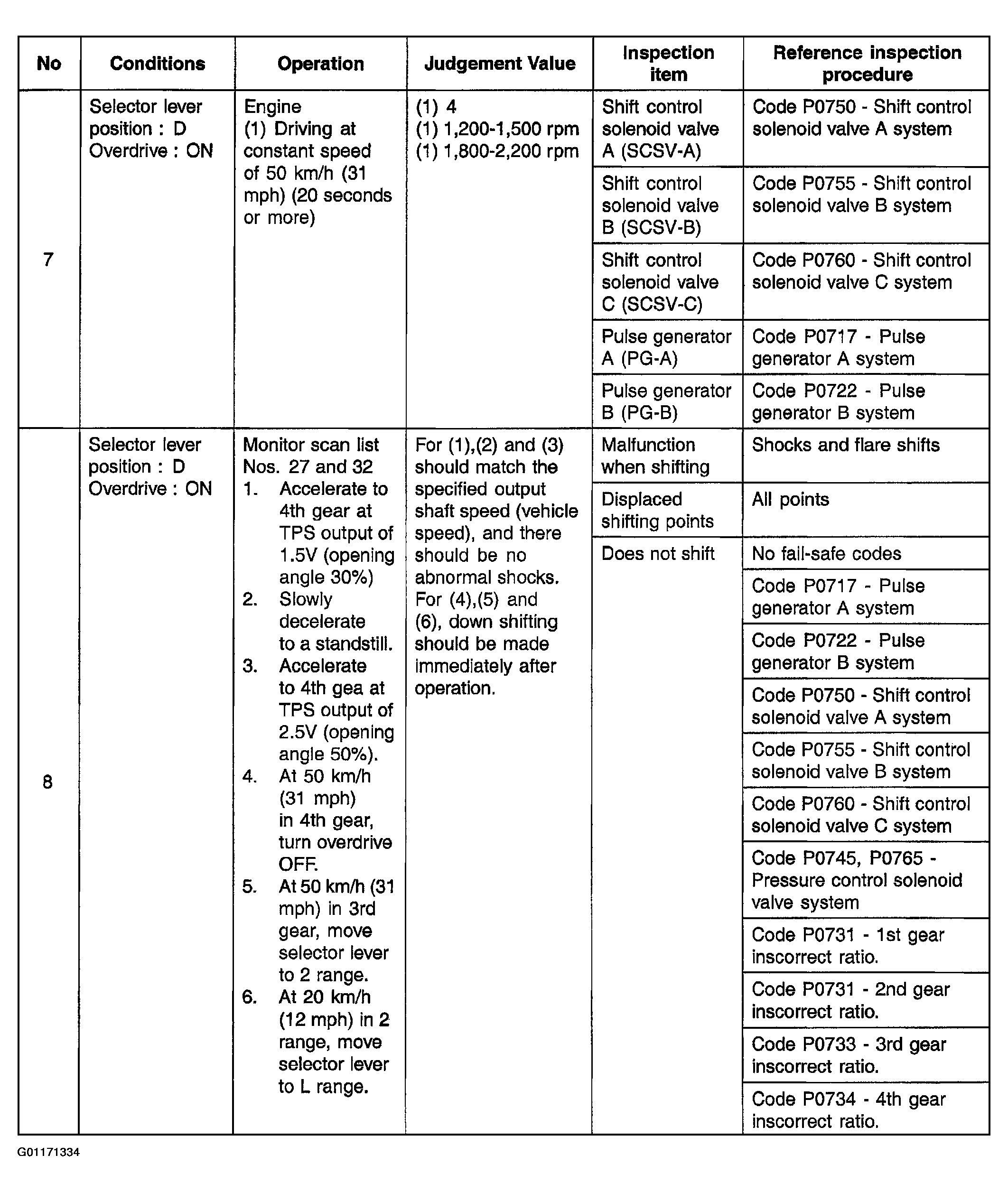

Fig 3: Road Test Table (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
