Inspection Procedure 12

WARNING: This page is about a different variant/trim than selected.

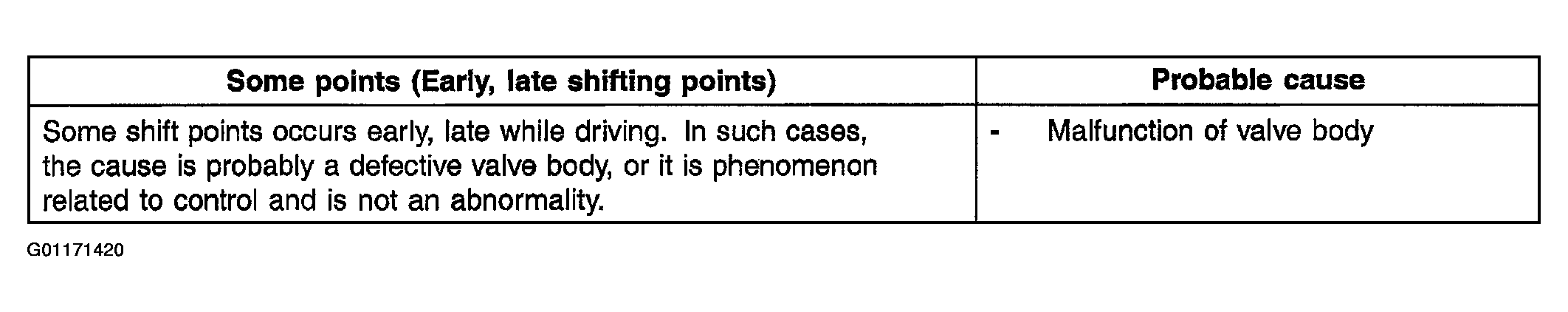

Fig 1: Probable Cause - Some Point (Early, Late Shifting Points)

Courtesy of HYUNDAI MOTOR CO.

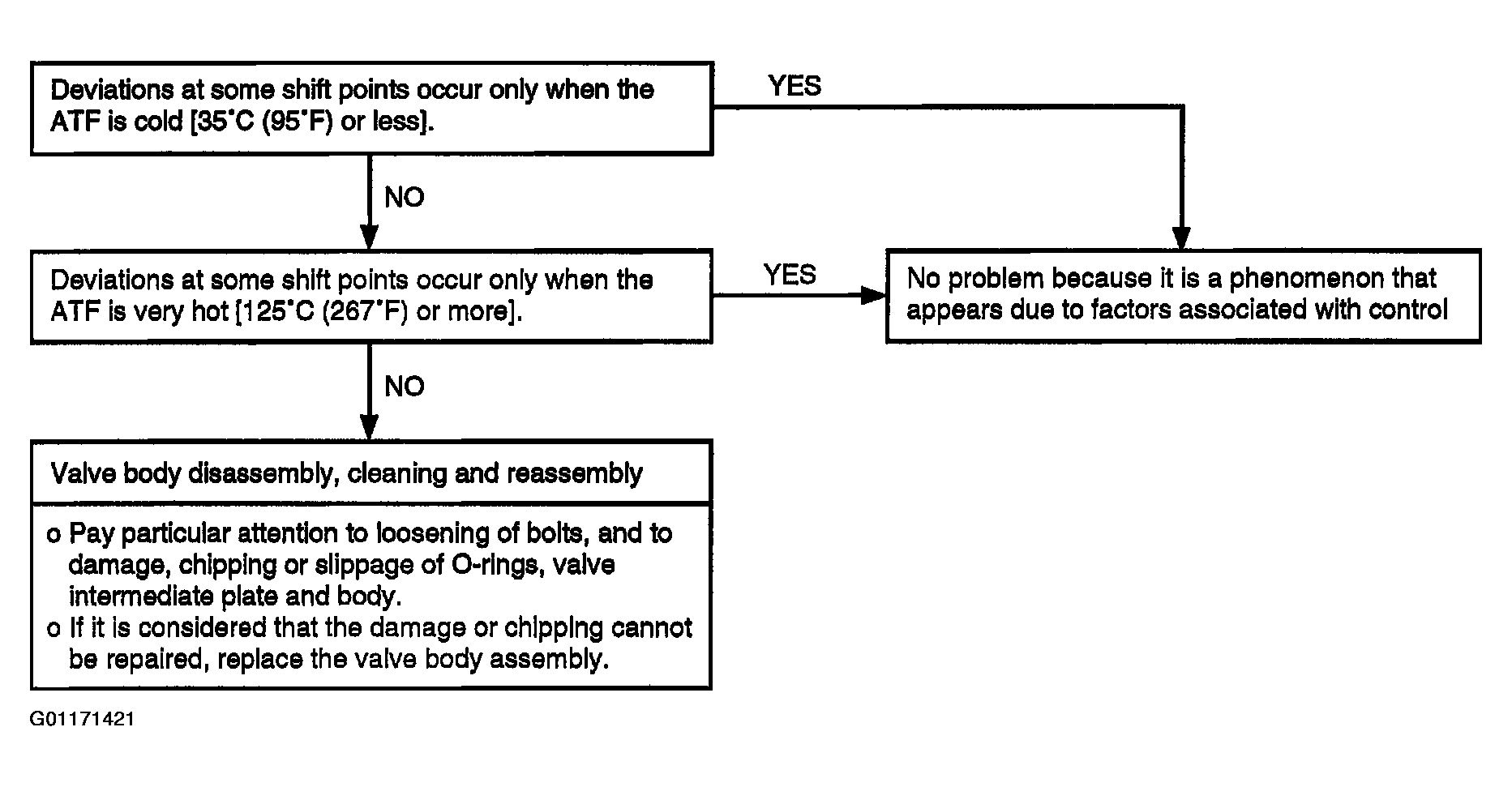

Fig 2: Troubleshooting Flow - Some Point (Early, Late Shifting Points)

Courtesy of HYUNDAI MOTOR CO.
