Inspection Procedure 13

WARNING: This page is about a different variant/trim than selected.

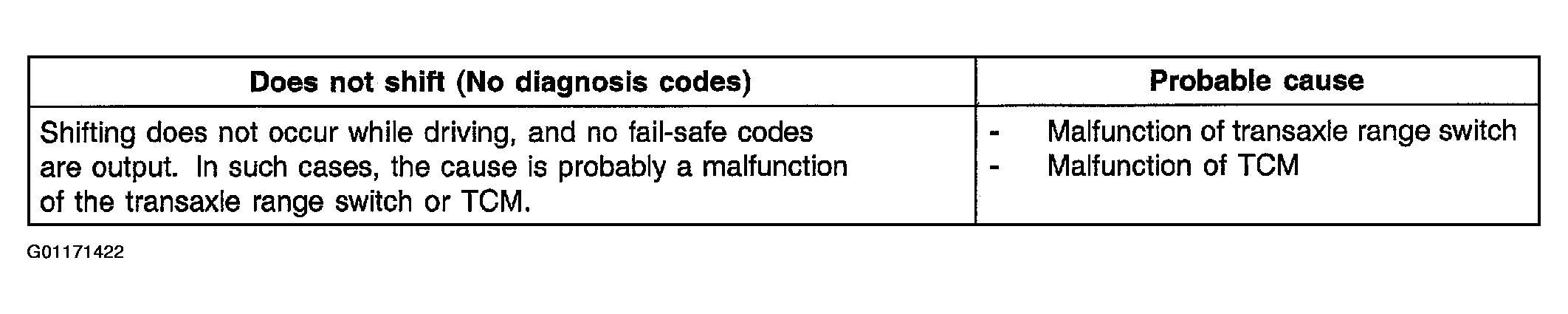

Fig 1: Probable Cause - Does Not Shift (No Diagnosis Code)

Courtesy of HYUNDAI MOTOR CO.

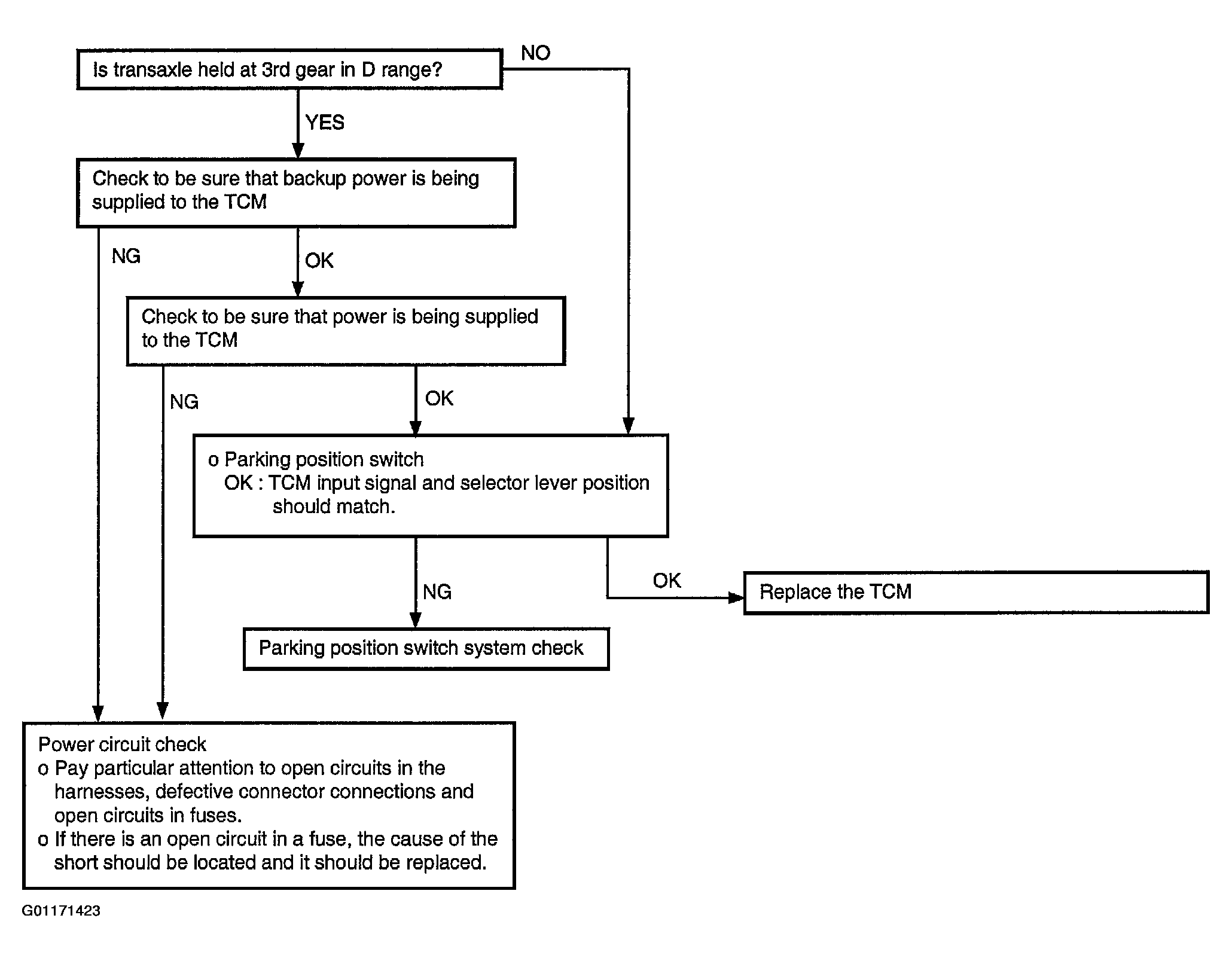

Fig 2: Troubleshooting Flow - Does Not Shift (No Diagnosis Code)

Courtesy of HYUNDAI MOTOR CO.
