Inspection Procedure 14

WARNING: This page is about a different variant/trim than selected.

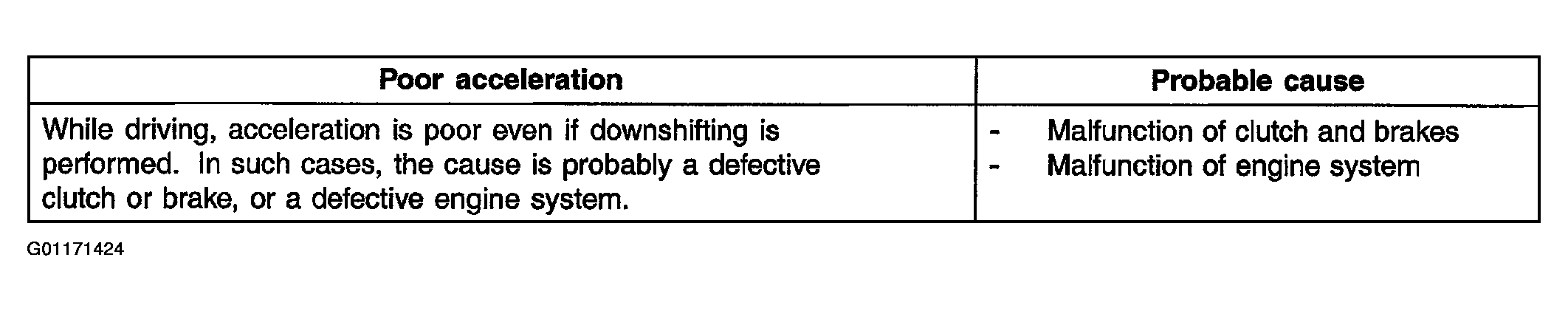

Fig 1: Probable Cause - Poor Acceleration
G01171424Courtesy of HYUNDAI MOTOR CO.

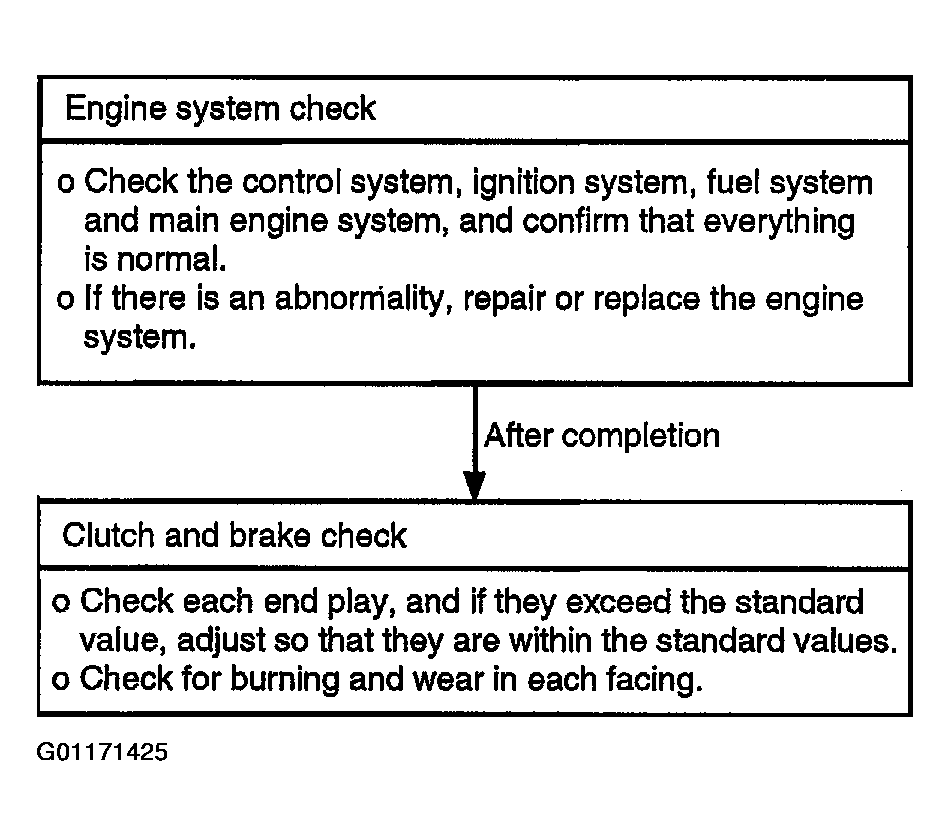

Fig 2: Troubleshooting Flow - Poor Acceleration
G01171425Courtesy of HYUNDAI MOTOR CO.
