Section 2 (Automatic Transaxle System)
›
Automatic Transaxle System
›
Diagnostic Item
›
Troubleshooting Guide
Troubleshooting Guide
WARNING:
This page is about a different variant/trim than selected.

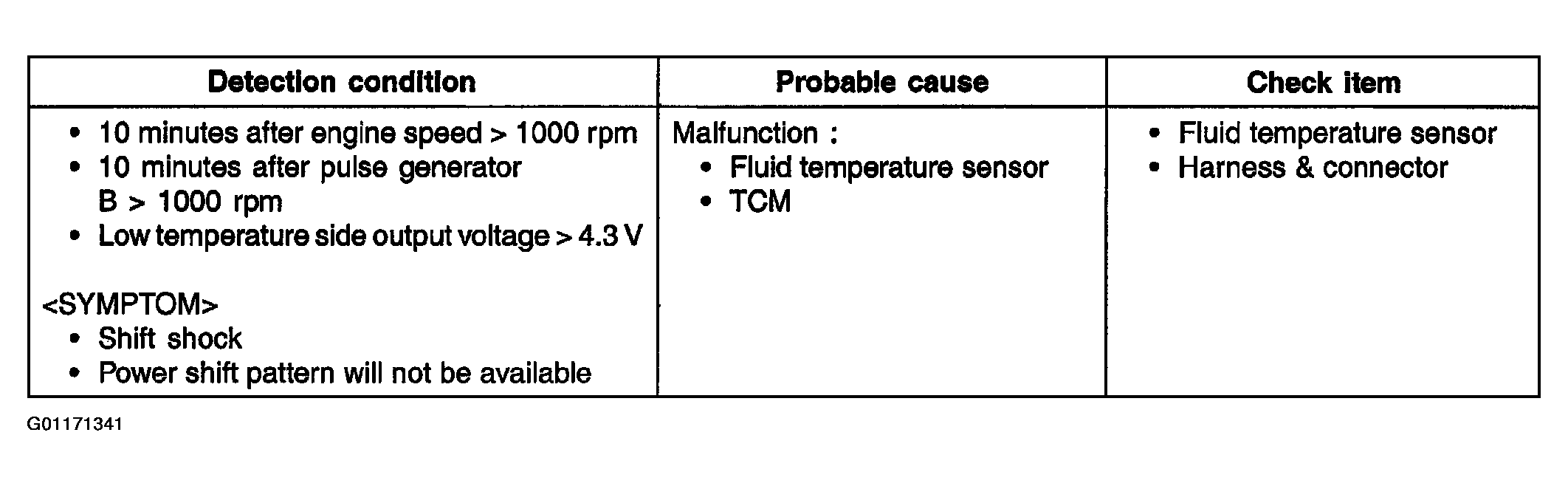

Fig 1: DTC P0712/P0713: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

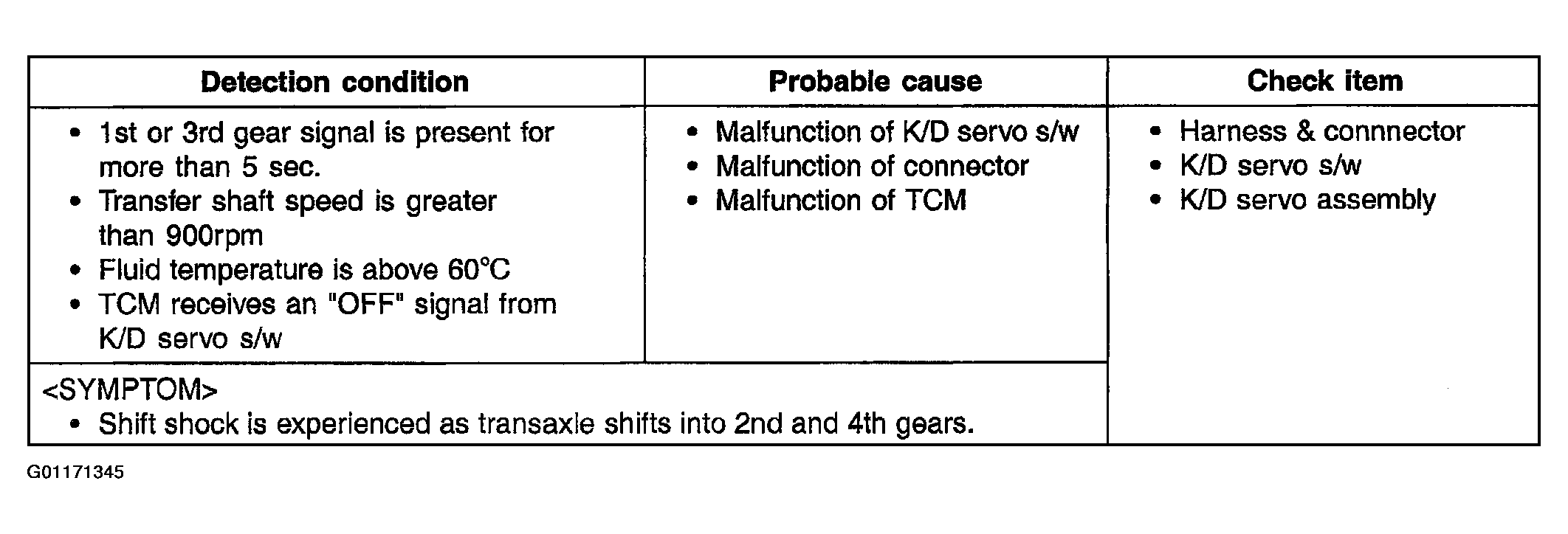

Fig 1: DTC P1709: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

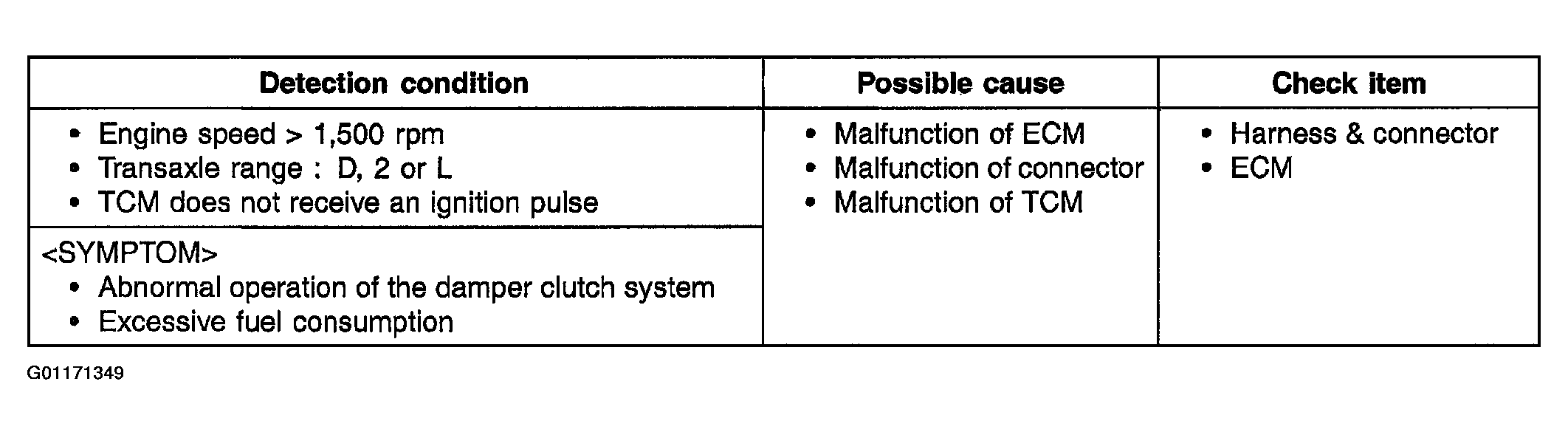

Fig 1: DTC P0727: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

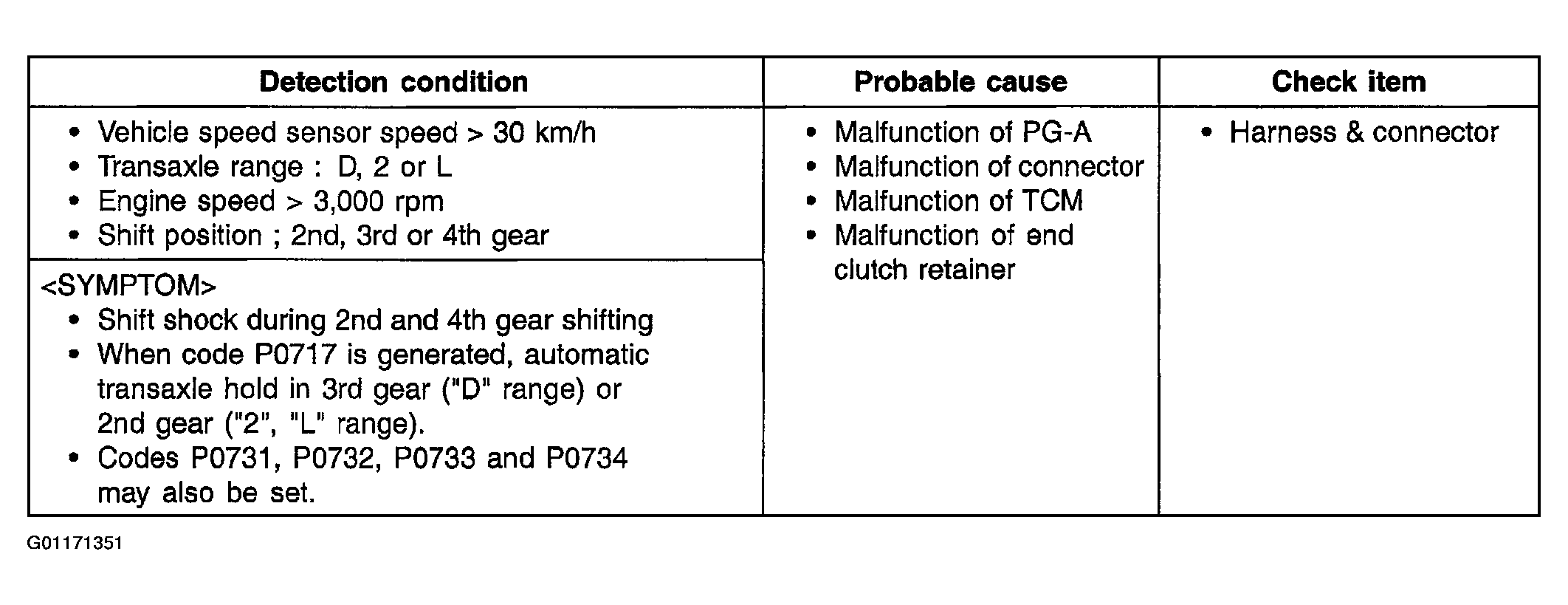

Fig 1: DTC P0717: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

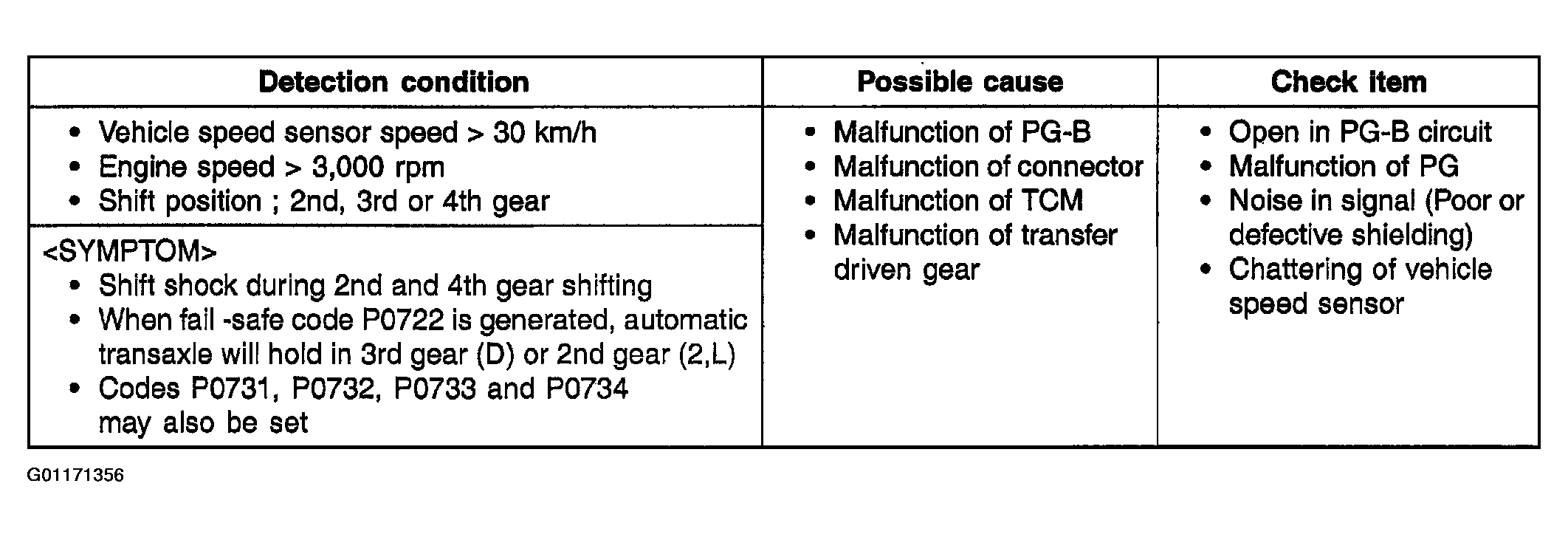

Fig 1: DTC P0722: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

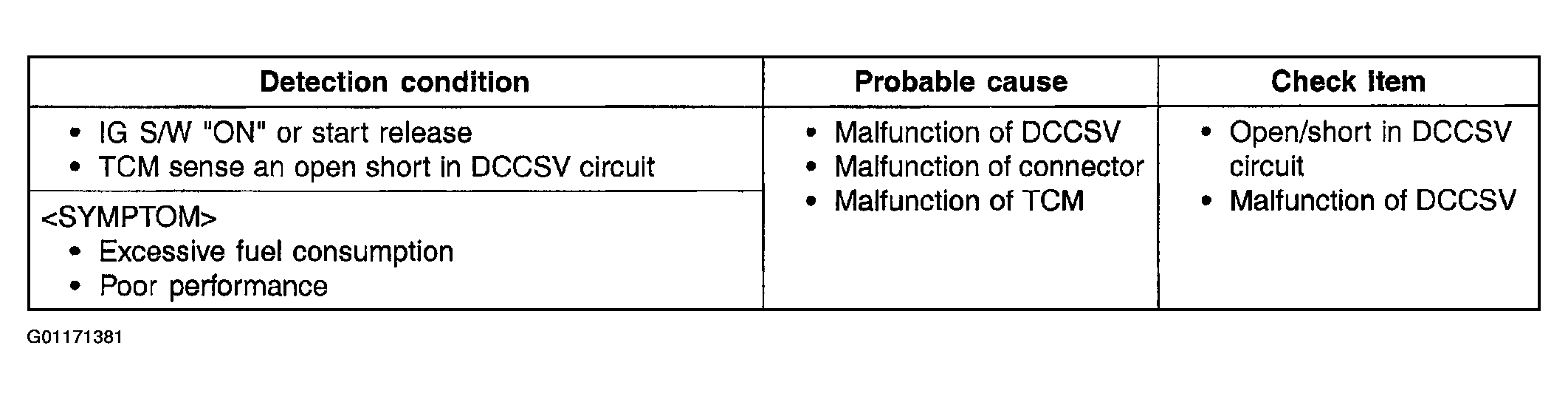

Fig 1: DTC P0750: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

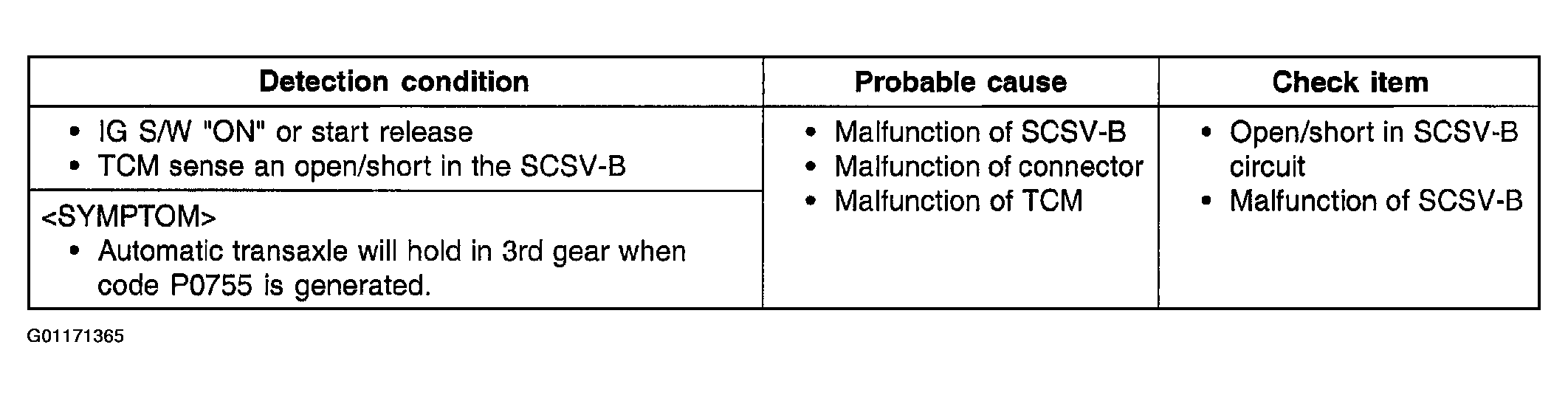

Fig 1: DTC P0755: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

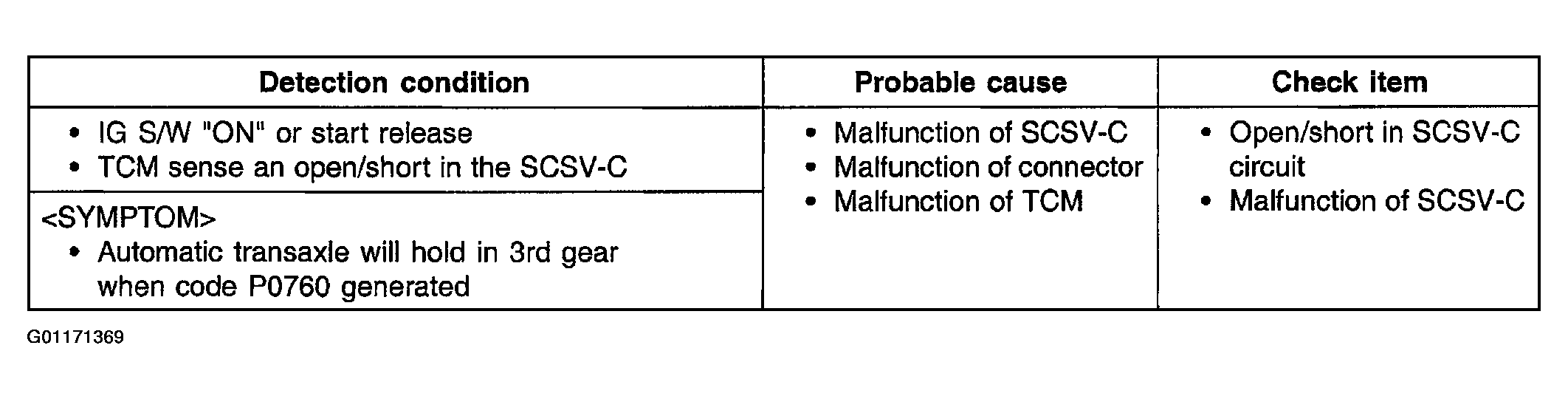

Fig 1: DTC P0760: Possible Cause
Courtesy of HYUNDAI MOTOR CO.

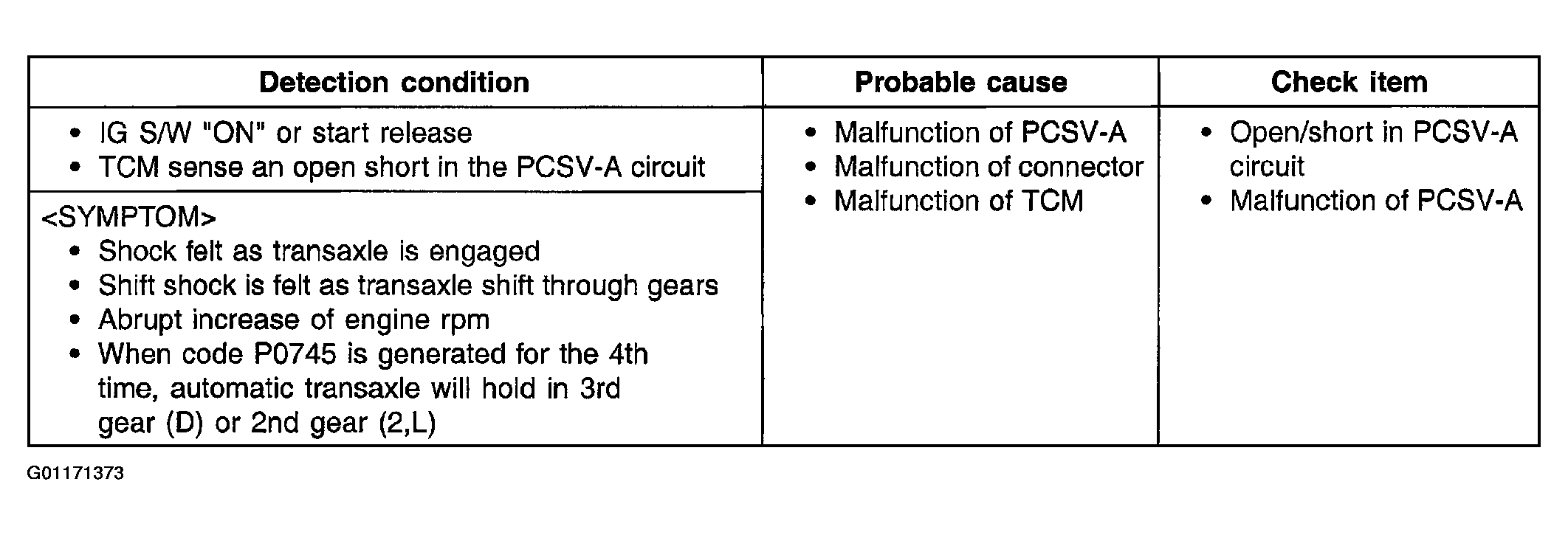

Fig 1: DTC P0745: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

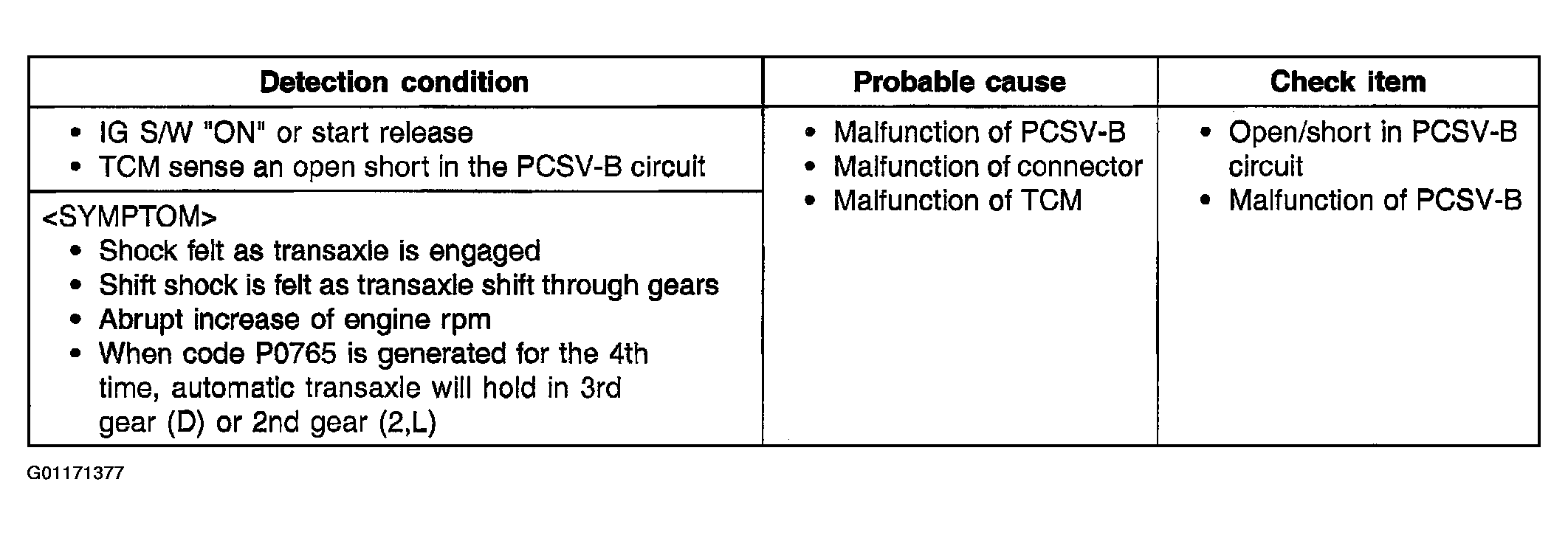

Fig 1: DTC P0765: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.
Fig 1: DTC P0743/P0740: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

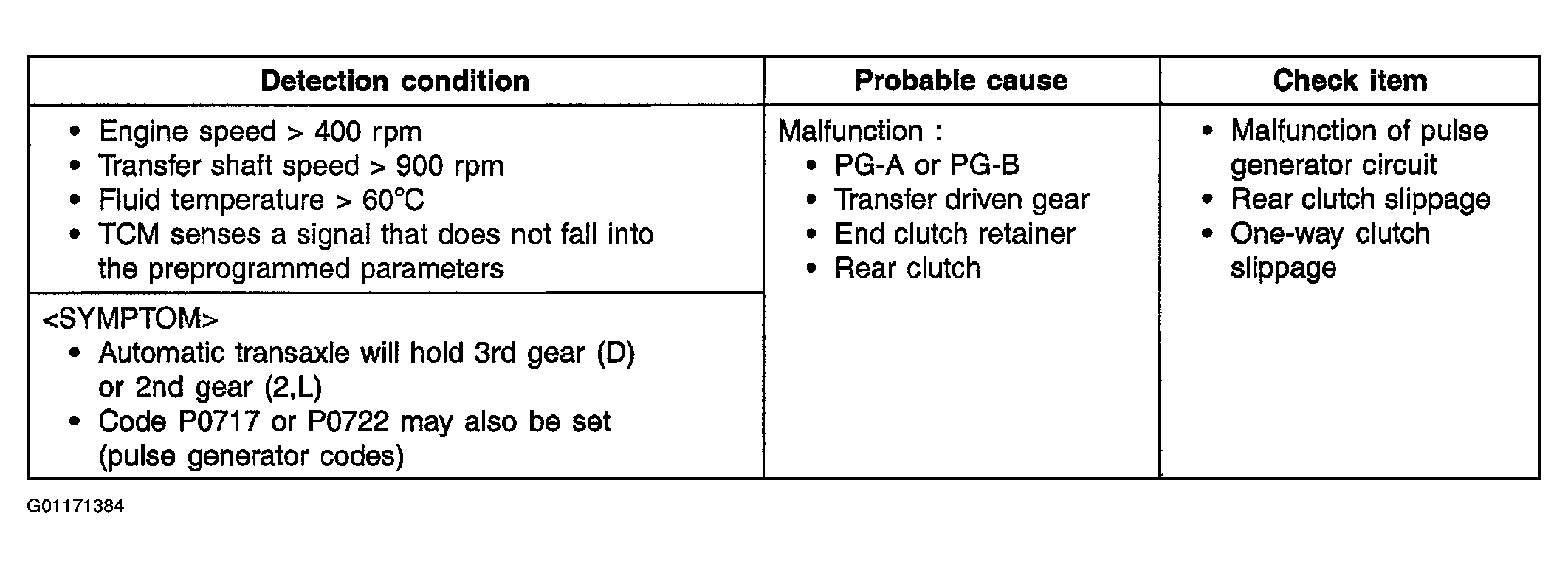

Fig 1: DTC P0731: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.

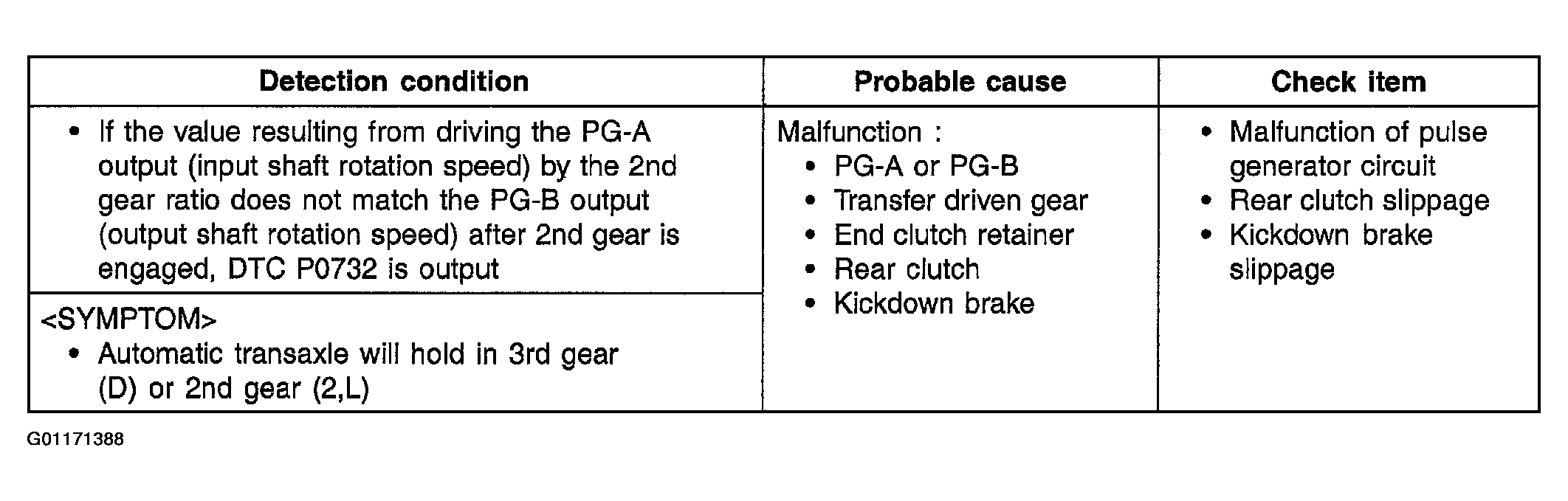

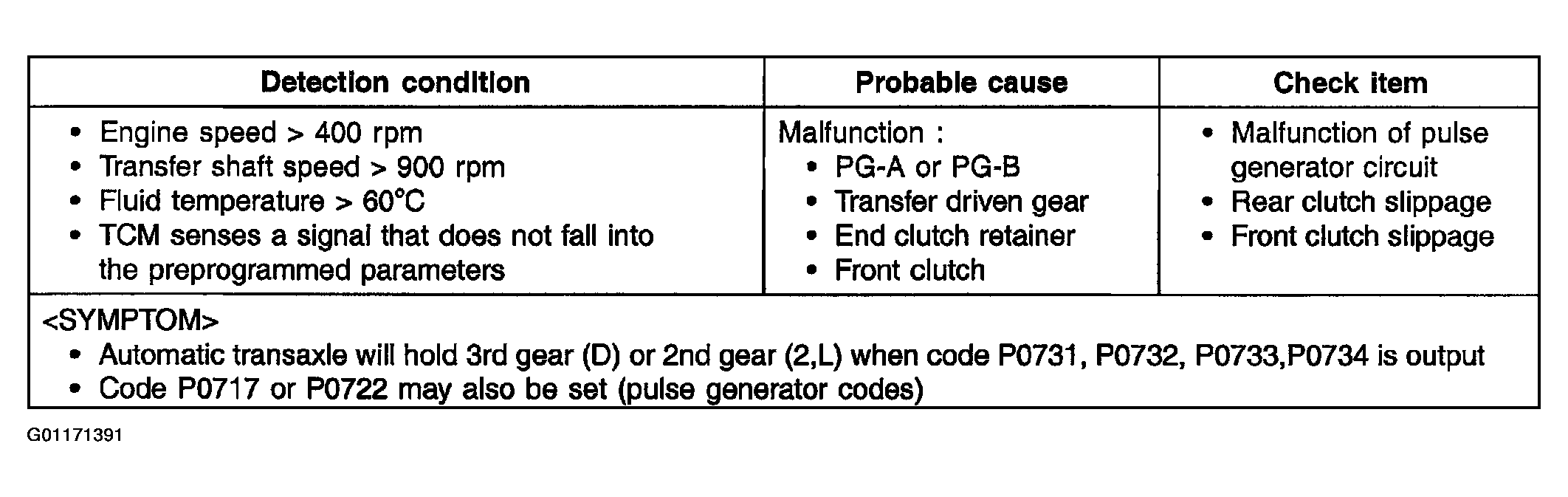

Fig 1: DTC P0732: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.
Fig 1: DTC P0733: Possible Cause
Courtesy of HYUNDAI MOTOR CO.

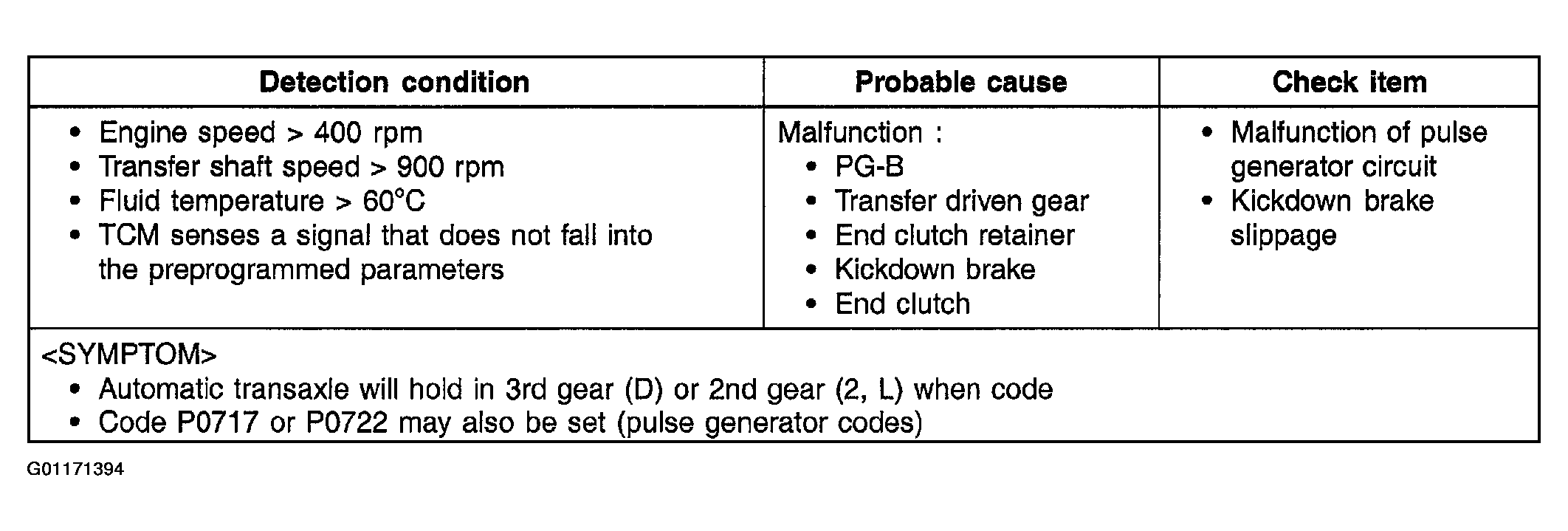

Fig 1: DTC P0734: Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.
