Inspection Procedure 8

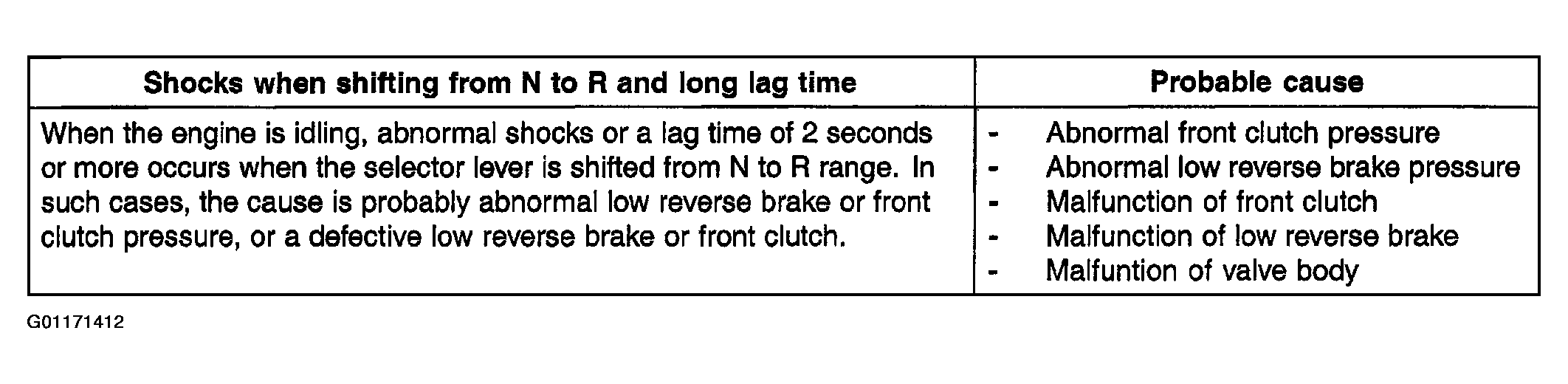

Fig 1: Probable Cause - Shocks When Shifting From N To R & Long Lag Time
G01171412Courtesy of HYUNDAI MOTOR CO.

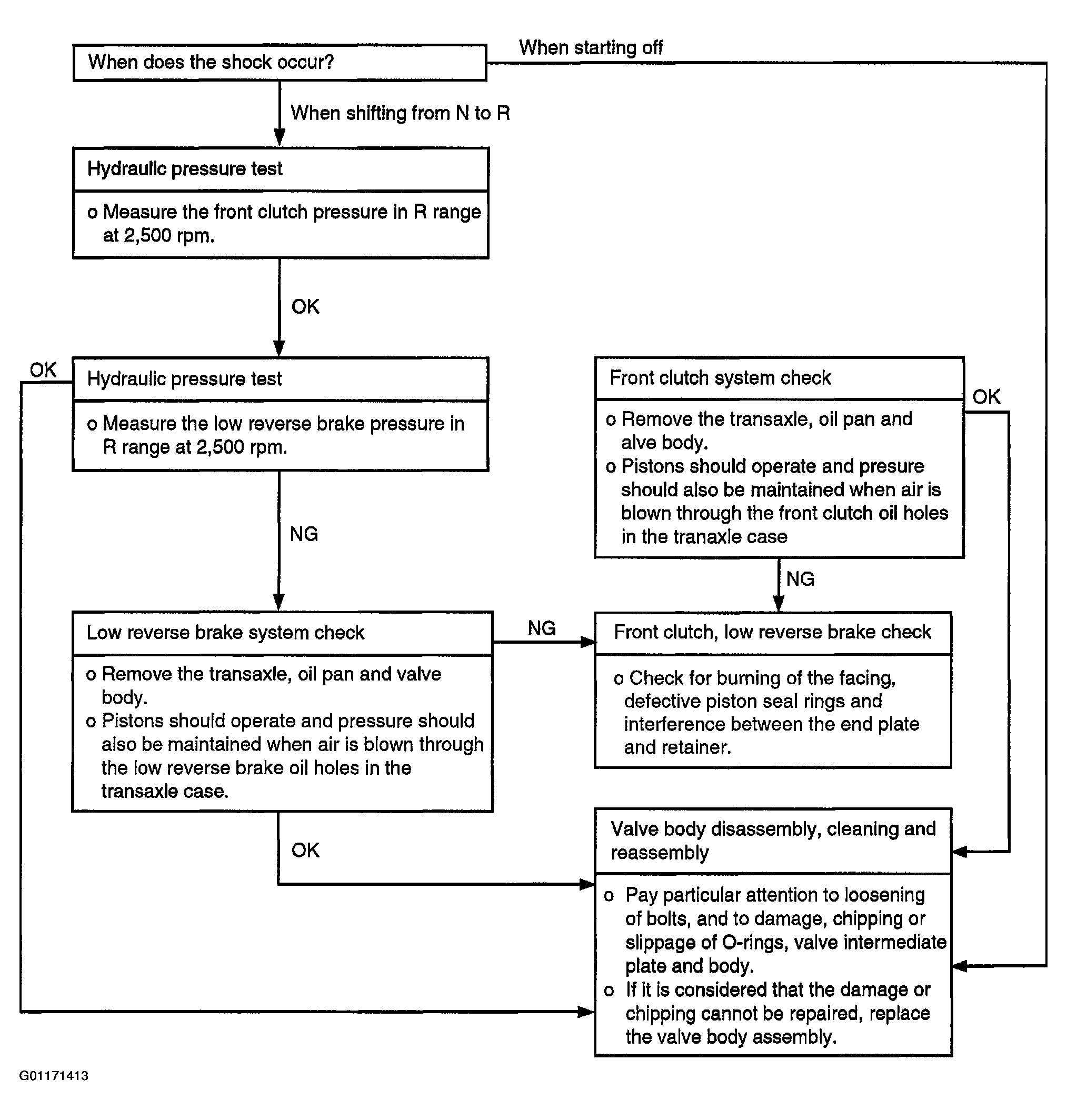

Fig 2: Troubleshooting Flow - Shocks When Shifting From N To R & Long Lag Time
G01171413Courtesy of HYUNDAI MOTOR CO.
