Manual Transaxle Shift Control: Components

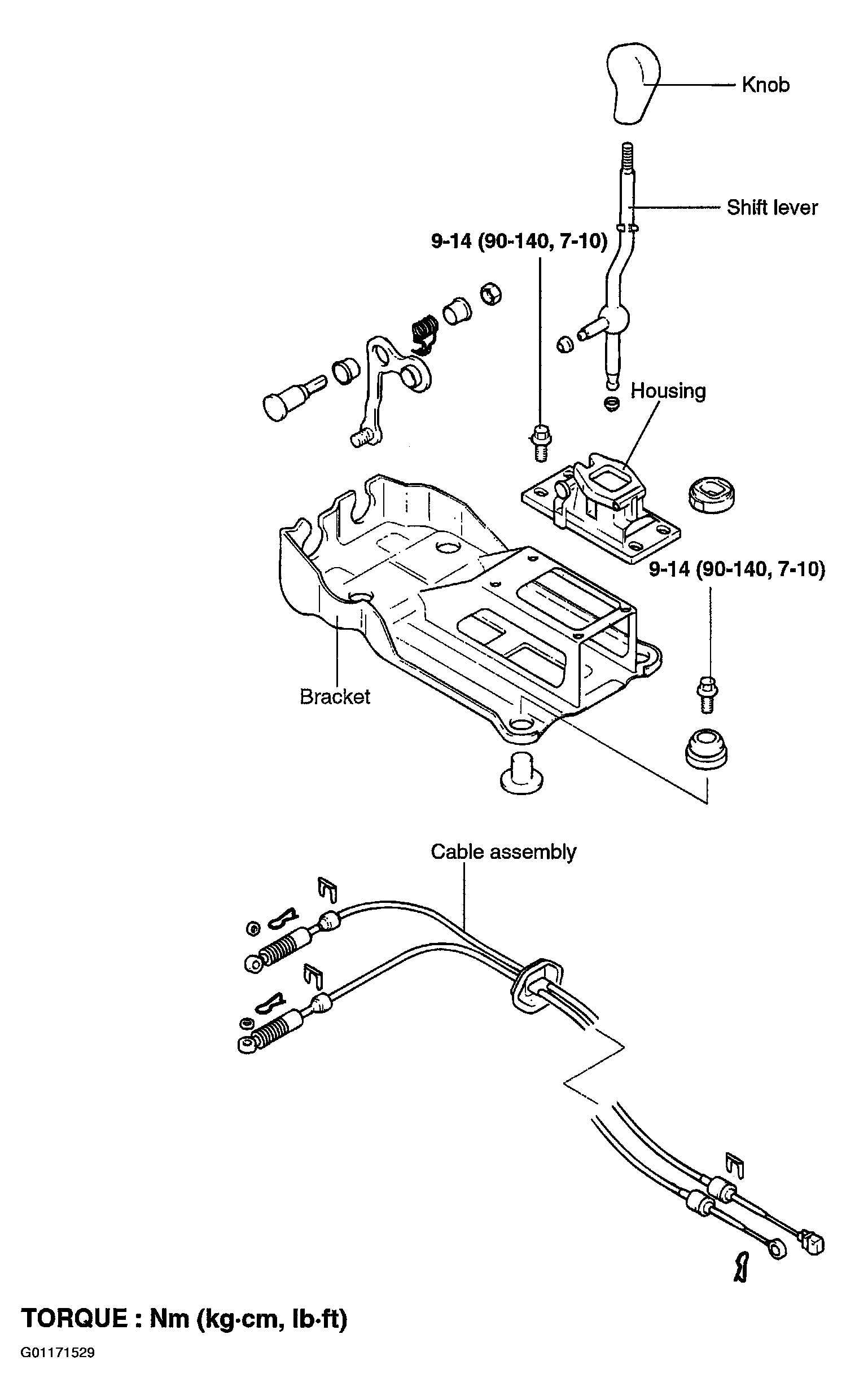

Fig 1: Manual Transaxle Shift Control Components
G01171529Courtesy of HYUNDAI MOTOR CO.
