Power Mirror Switch

Remove power mirror switch. Disconnect harness connector. Ensure continuity exists between specified terminals with switch in specified position. See Fig 1 and Fig 2 . If continuity does not exist, replace power mirror switch.

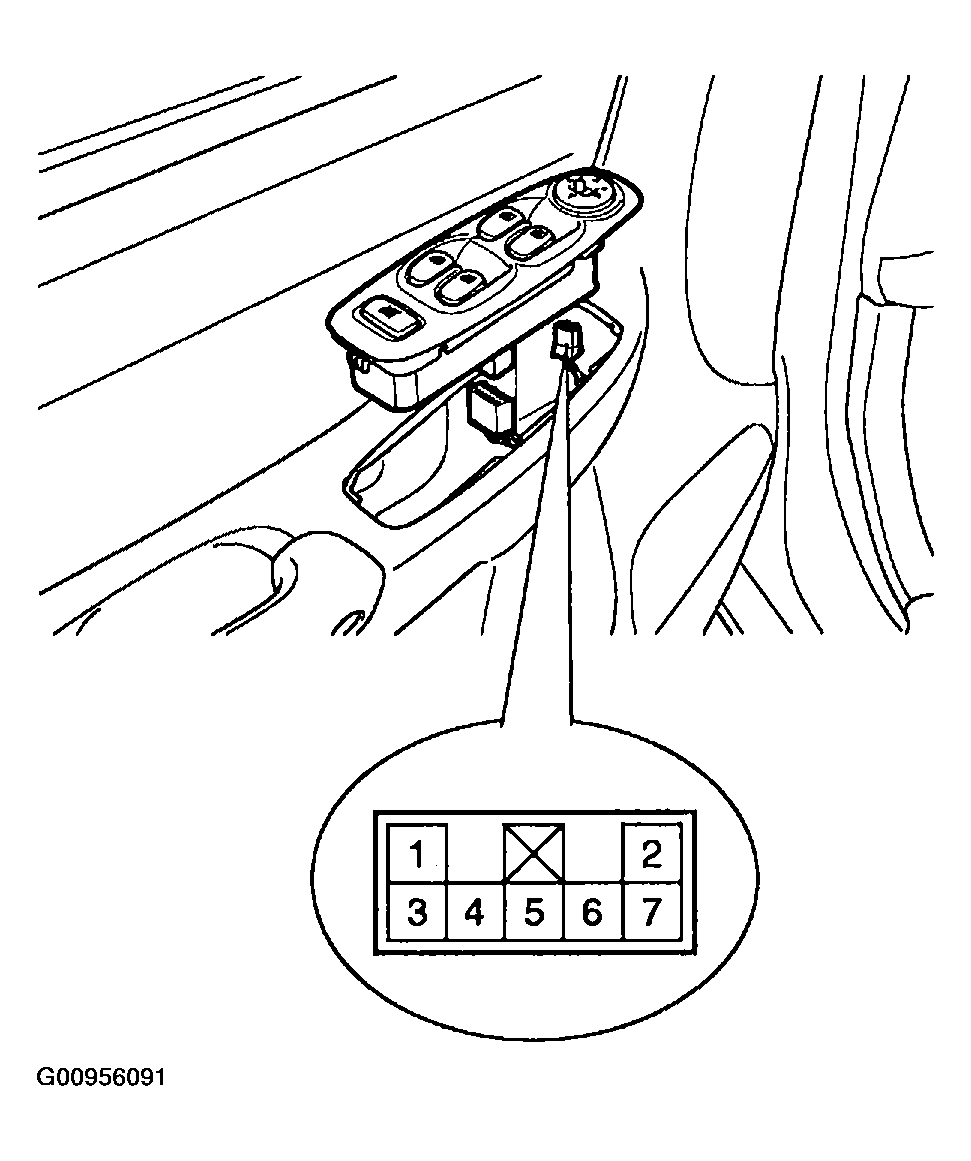

Fig 1: Identifying Power Door Mirror Switch Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

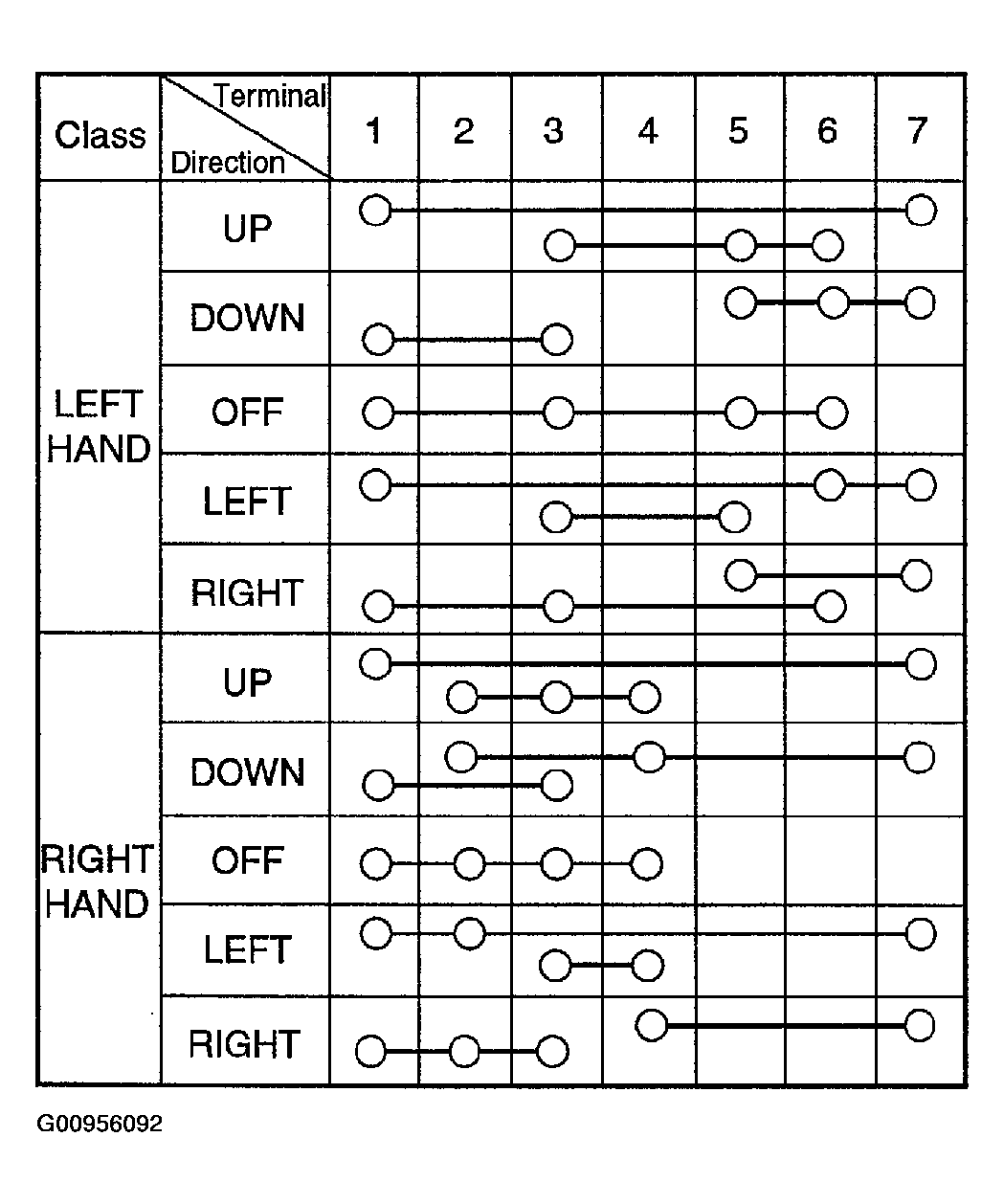

Fig 2: Power Door Mirror Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.
