Automatic Transaxle: Installation
WARNING: This page is about a different variant/trim than selected.

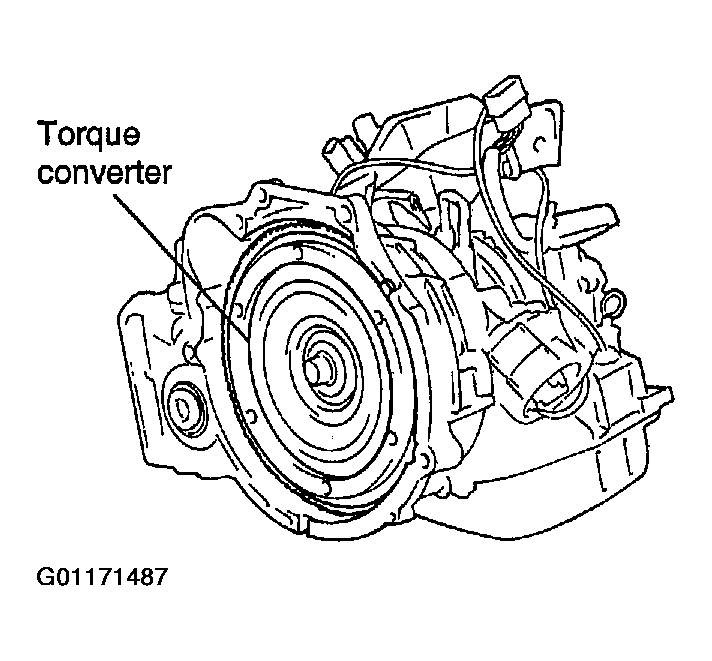

- Attach the torque converter on the transaxle side and mount the transaxle assembly onto the engine.
CAUTION:
If the torque converter is mounted on the engine first, the oil seal on the transaxle side may be damaged. Therefore, be sure to first assemble the torque converter to the transaxle.
