Inspection Procedure 2

WARNING: This page is about a different variant/trim than selected.

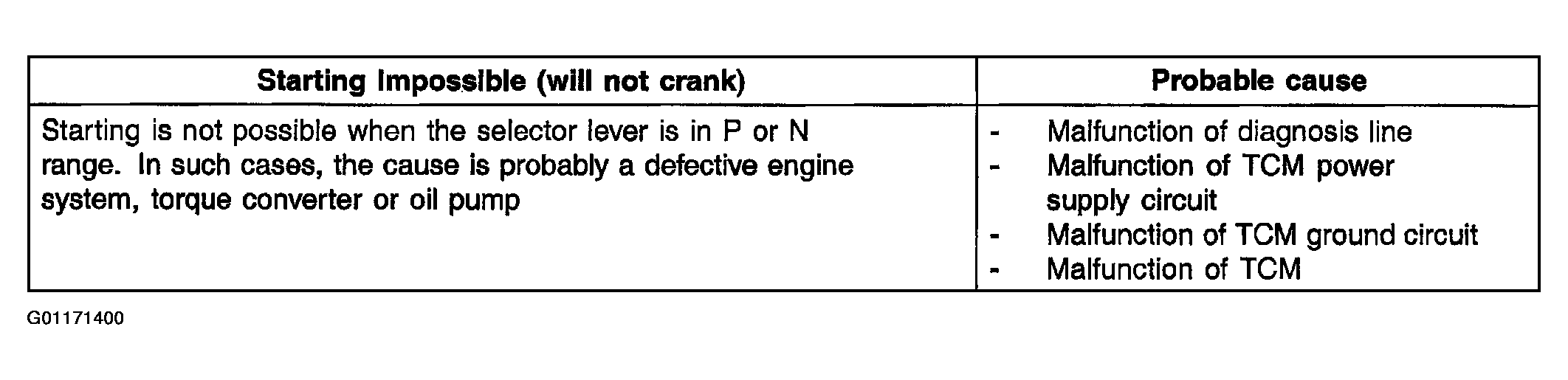

Fig 1: Probable Cause - Starting Impossible (Will Not Crank)

Courtesy of HYUNDAI MOTOR CO.

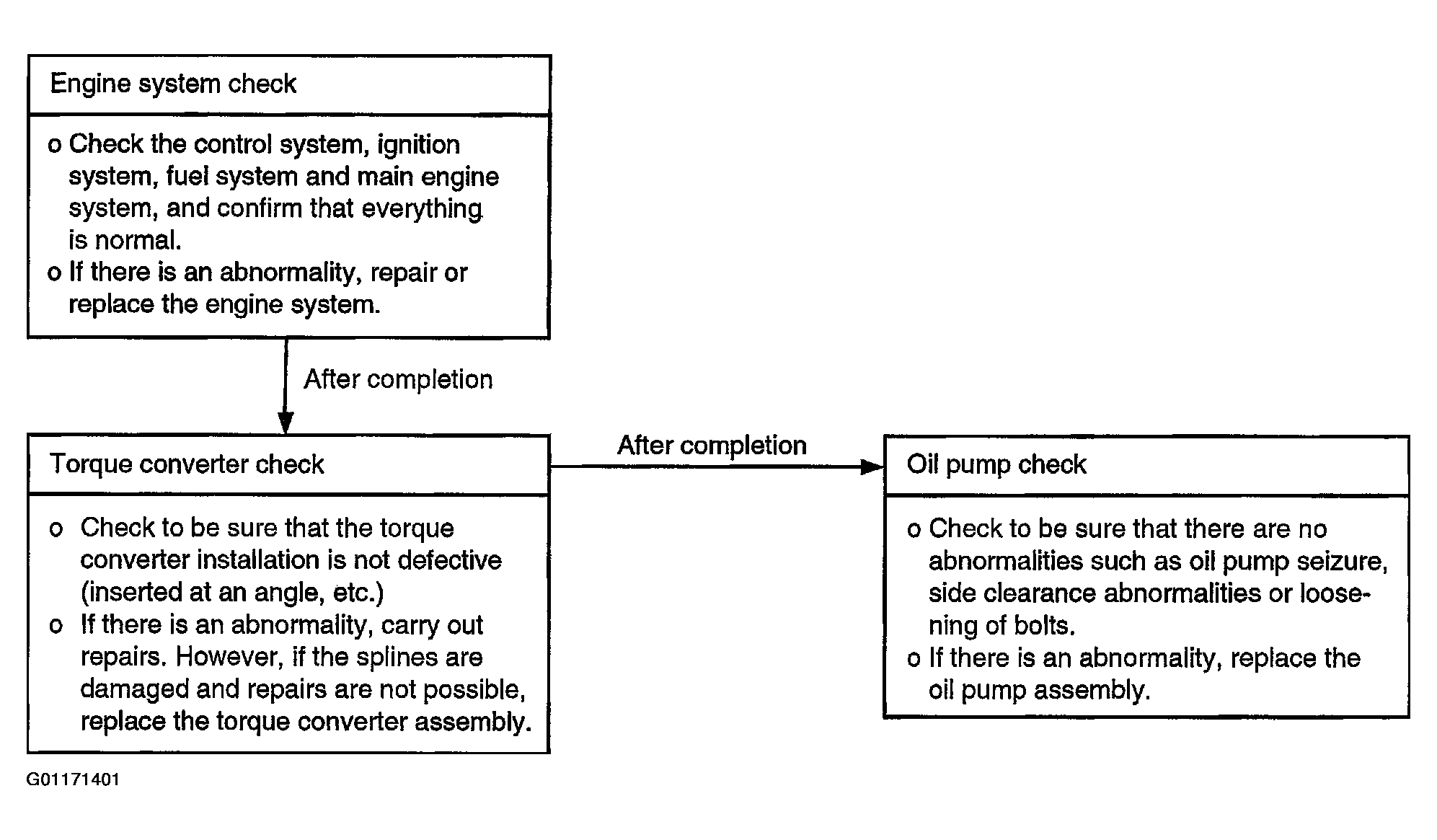

Fig 2: Troubleshooting Flow - Starting Impossible (Will Not Crank)

Courtesy of HYUNDAI MOTOR CO.
