Inspection Procedure 4

WARNING: This page is about a different variant/trim than selected.

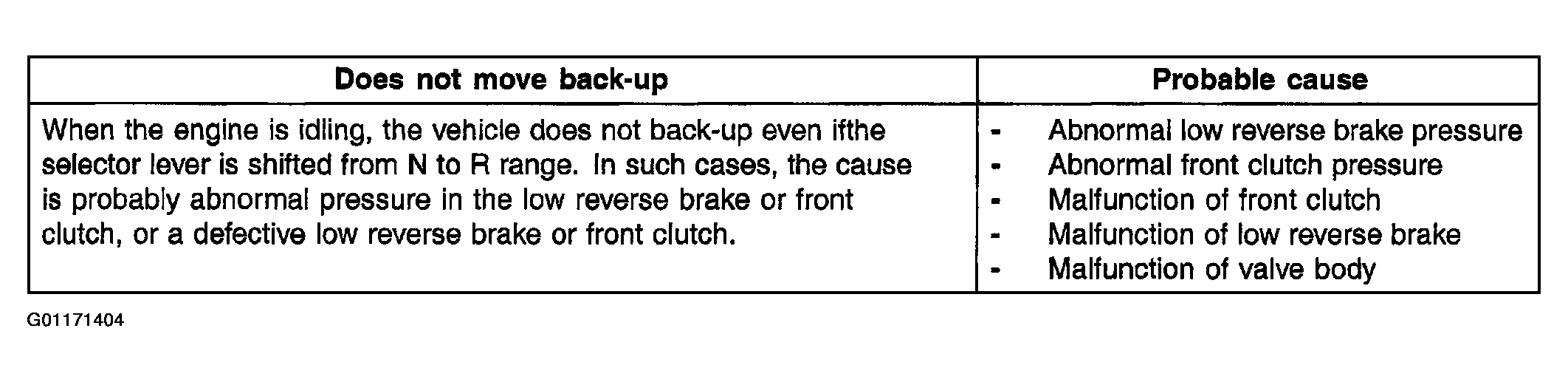

Fig 1: Probable Cause - Does Not Move Back Up
G01171404Courtesy of HYUNDAI MOTOR CO.

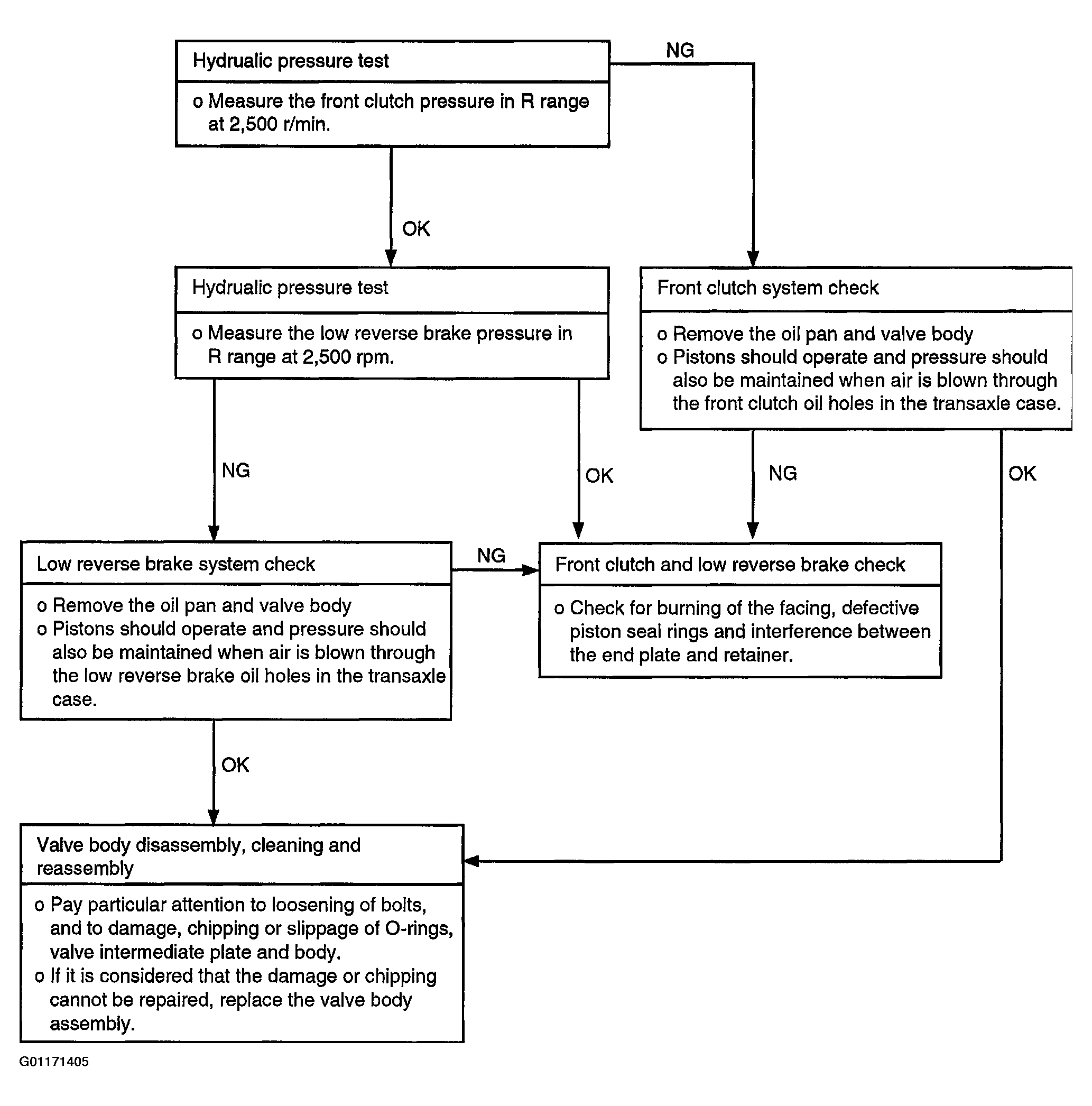

Fig 2: Troubleshooting Flow - Does Not Move Back Up
G01171405Courtesy of HYUNDAI MOTOR CO.
