Inspection Procedure 6

WARNING: This page is about a different variant/trim than selected.

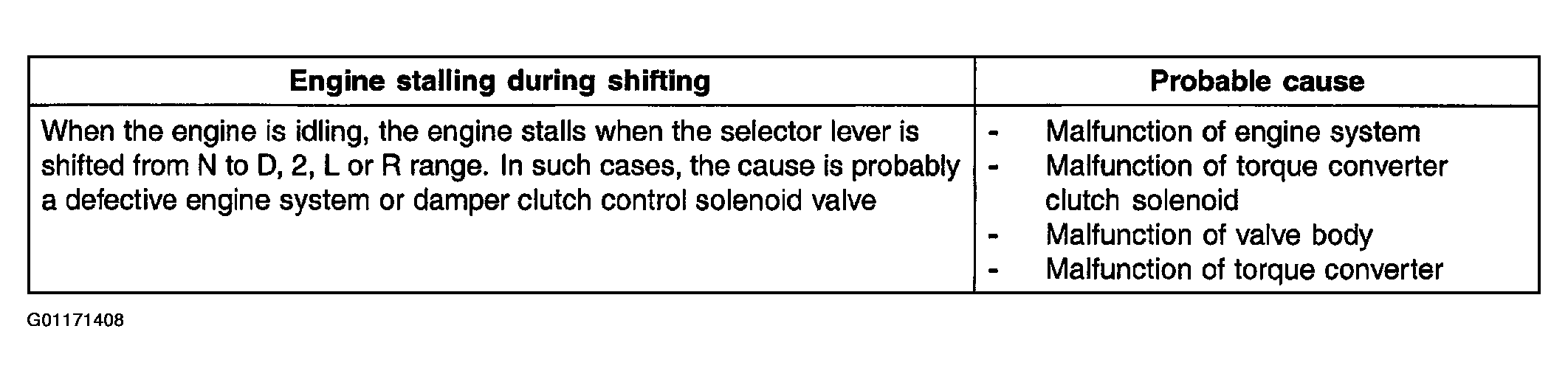

Fig 1: Probable Cause - Engine Stalling During Shifting
G01171408Courtesy of HYUNDAI MOTOR CO.

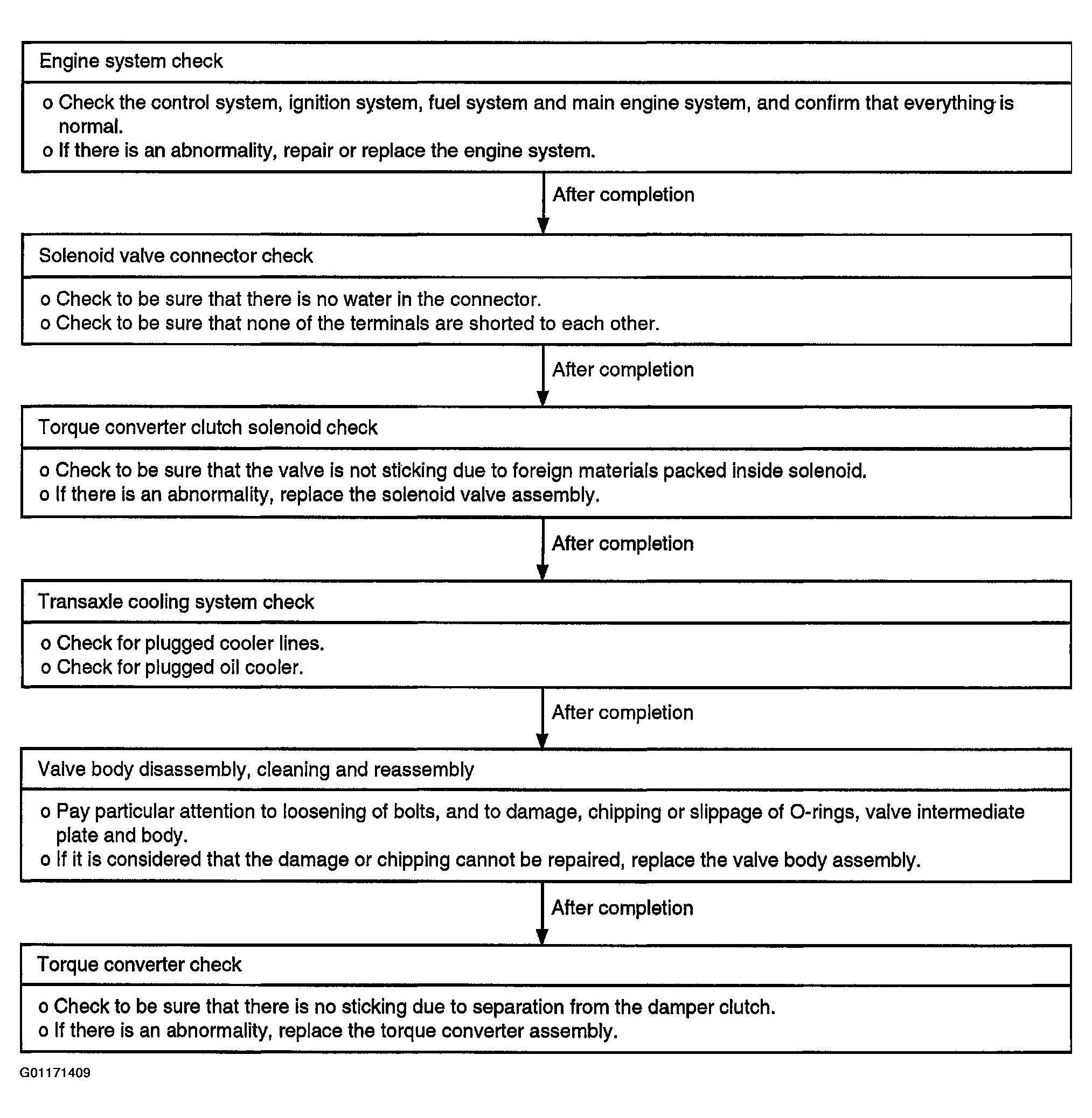

Fig 2: Troubleshooting Flow - Engine Stalling During Shifting
G01171409Courtesy of HYUNDAI MOTOR CO.
