Inspection Procedure 7

WARNING: This page is about a different variant/trim than selected.

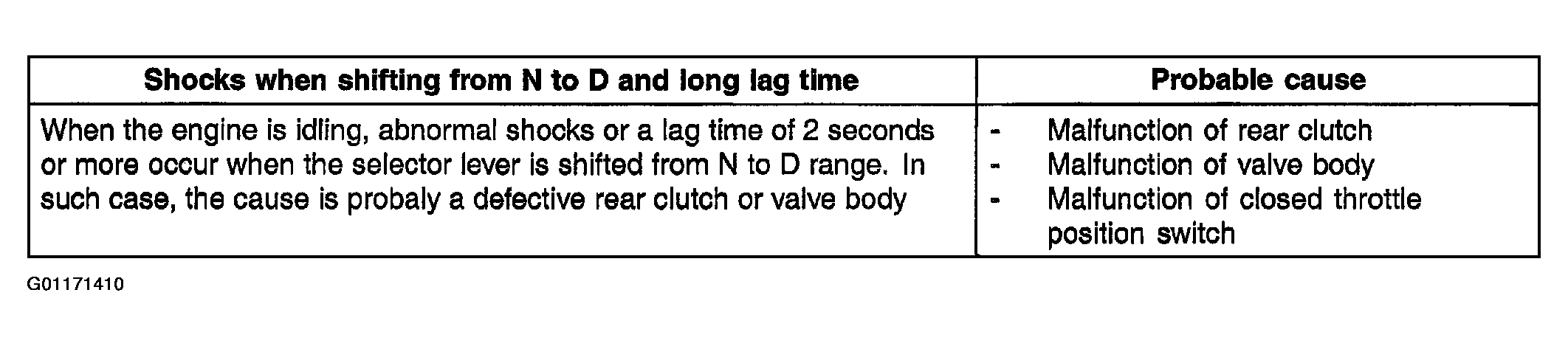

Fig 1: Probable Cause - Shocks When Shifting From N To D & Long Lag Time

Courtesy of HYUNDAI MOTOR CO.

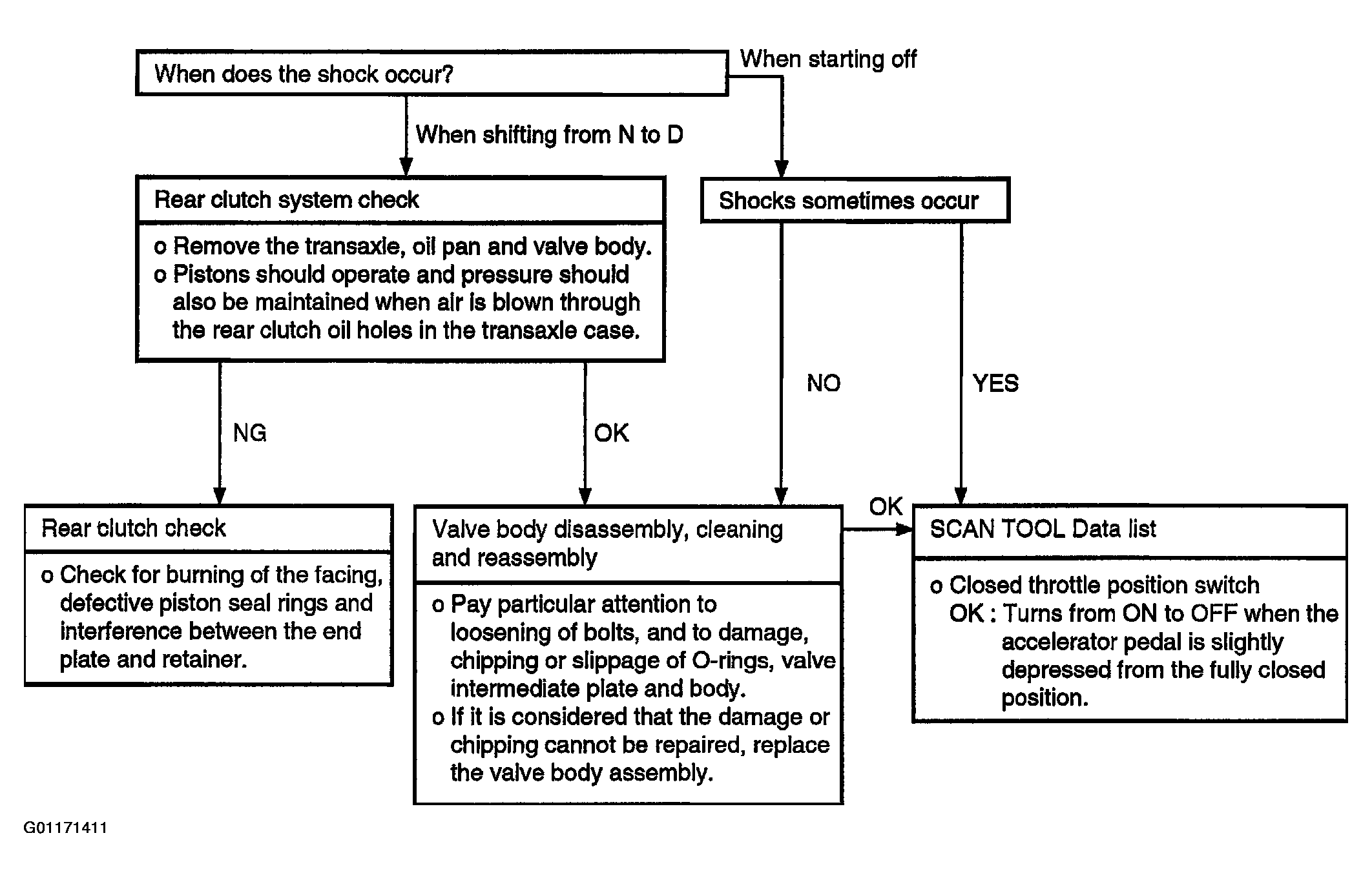

Fig 2: Troubleshooting Flow - Shocks When Shifting From N To D & Long Lag Time

Courtesy of HYUNDAI MOTOR CO.
