Shift Lever: Assembly

WARNING: This page is about a different variant/trim than selected.

Apply a coating of grease to the sliding part of the bushing.
Specified grease:

Chassis grease SAE J310, NLGI No.2

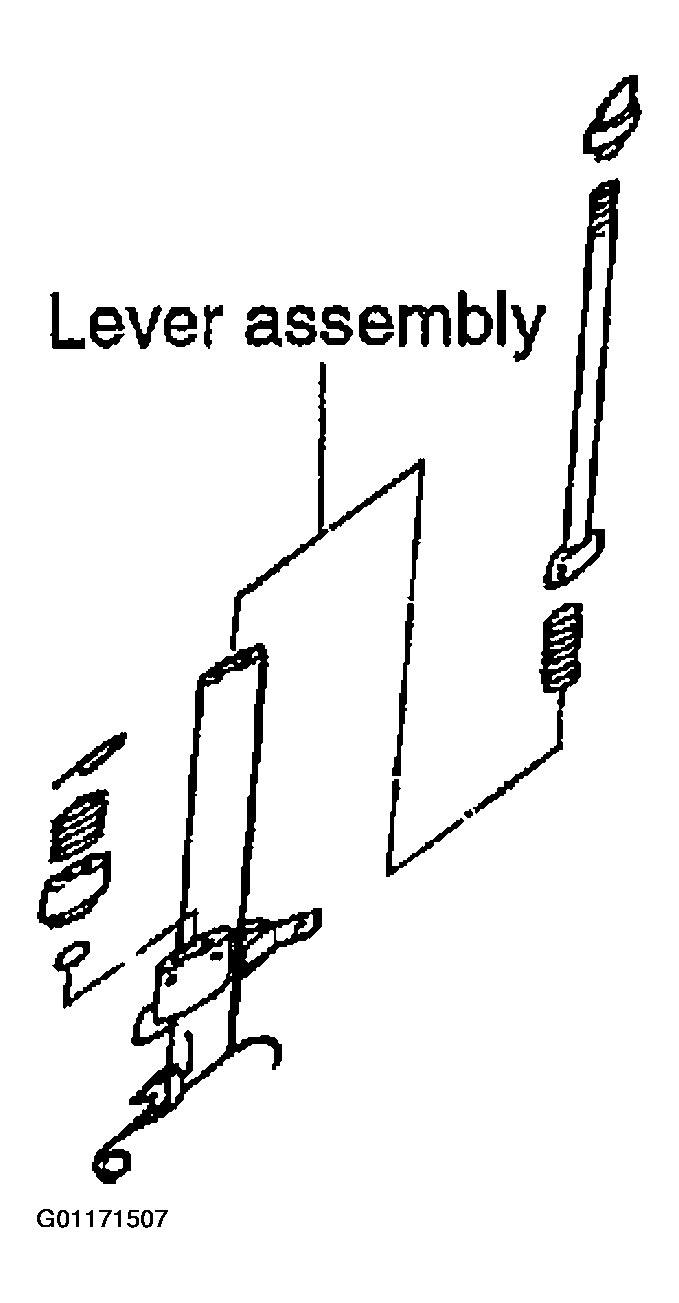

Fig 1: Applying Grease To Sliding Part Of Bushing
Courtesy of HYUNDAI MOTOR CO.
Apply the specified grease at the places shown in the figure.
Specified grease:

Multipurpose grease SAE J310, NLGI No.2

Fig 2: Locating Areas For Grease Application
Courtesy of HYUNDAI MOTOR CO.
