Seat Belt Warning

Time Specification:

• T1: 5-7 sec.
• T2: 0.44-0.46 sec.
• T3: 0.2-0.4 sec.

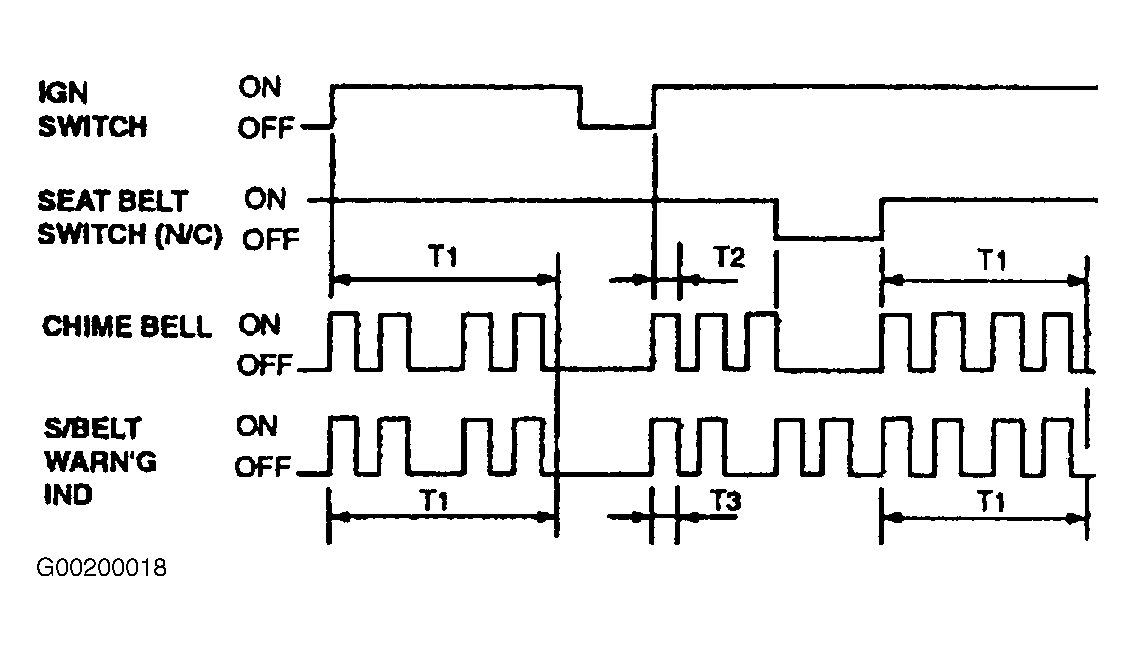

Use illustration for timing wave form pattern. See Fig 1 .

Fig 1: Checking Seat Belt Warning

Courtesy of HYUNDAI MOTOR CO.
