Power Window Main Switch

Fig 1: Identifying Power Window Main Switch Connector Terminals
G01143320Courtesy of HYUNDAI MOTOR CO.

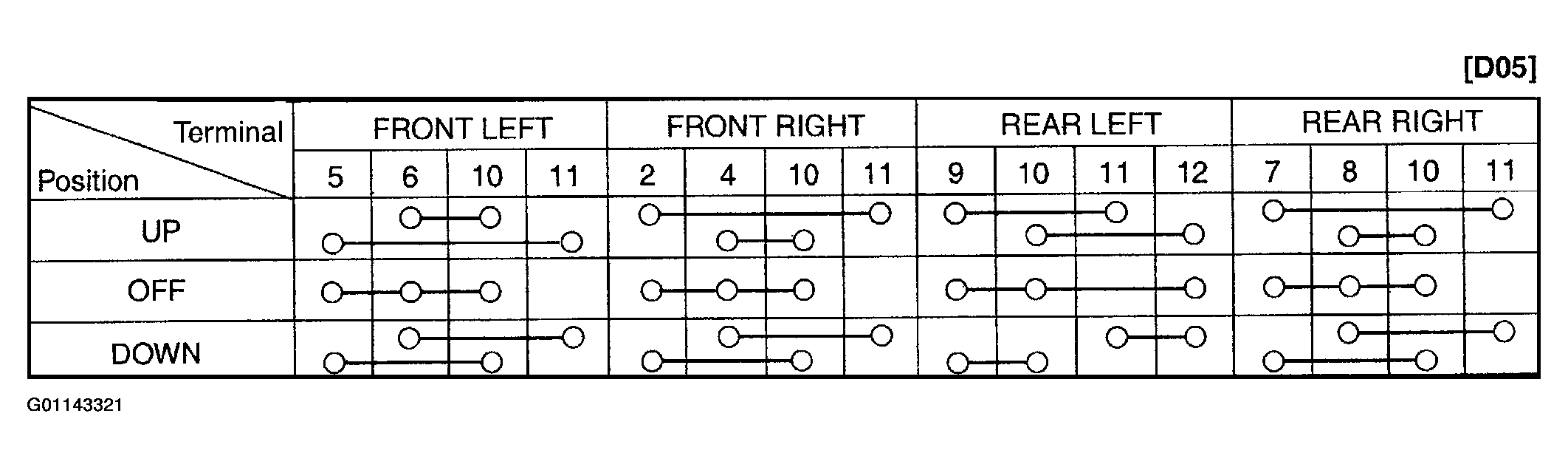

Fig 2: Power Window Main Switch Continuity Table
G01143321Courtesy of HYUNDAI MOTOR CO.
