Connector End Views
›
Multifunction Switch Assembly & Connector End Views
Multifunction Switch Assembly & Connector End Views

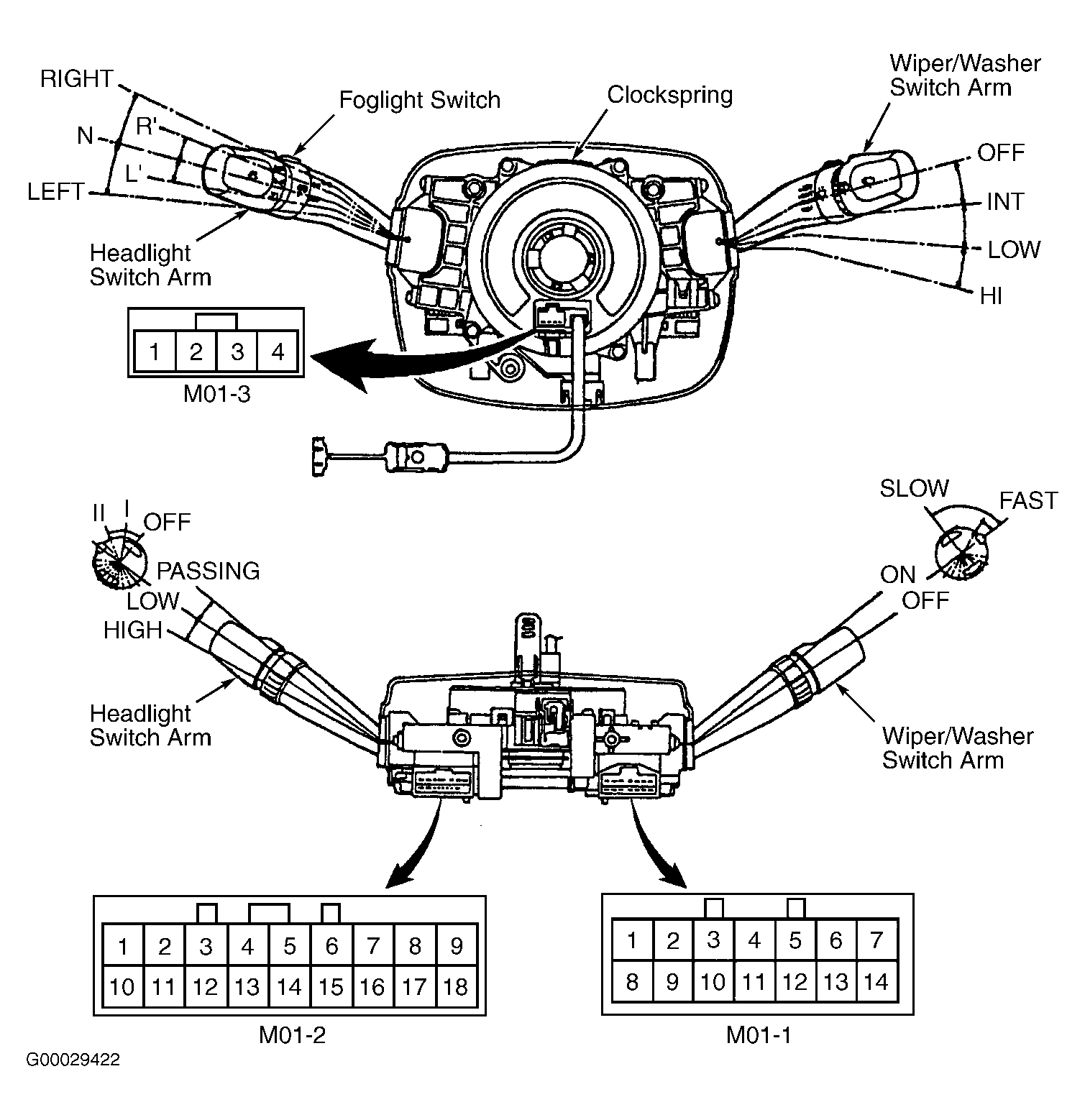

Fig 1: Multifunction Switch Assembly & Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
