Cooling System: Radiator: Components

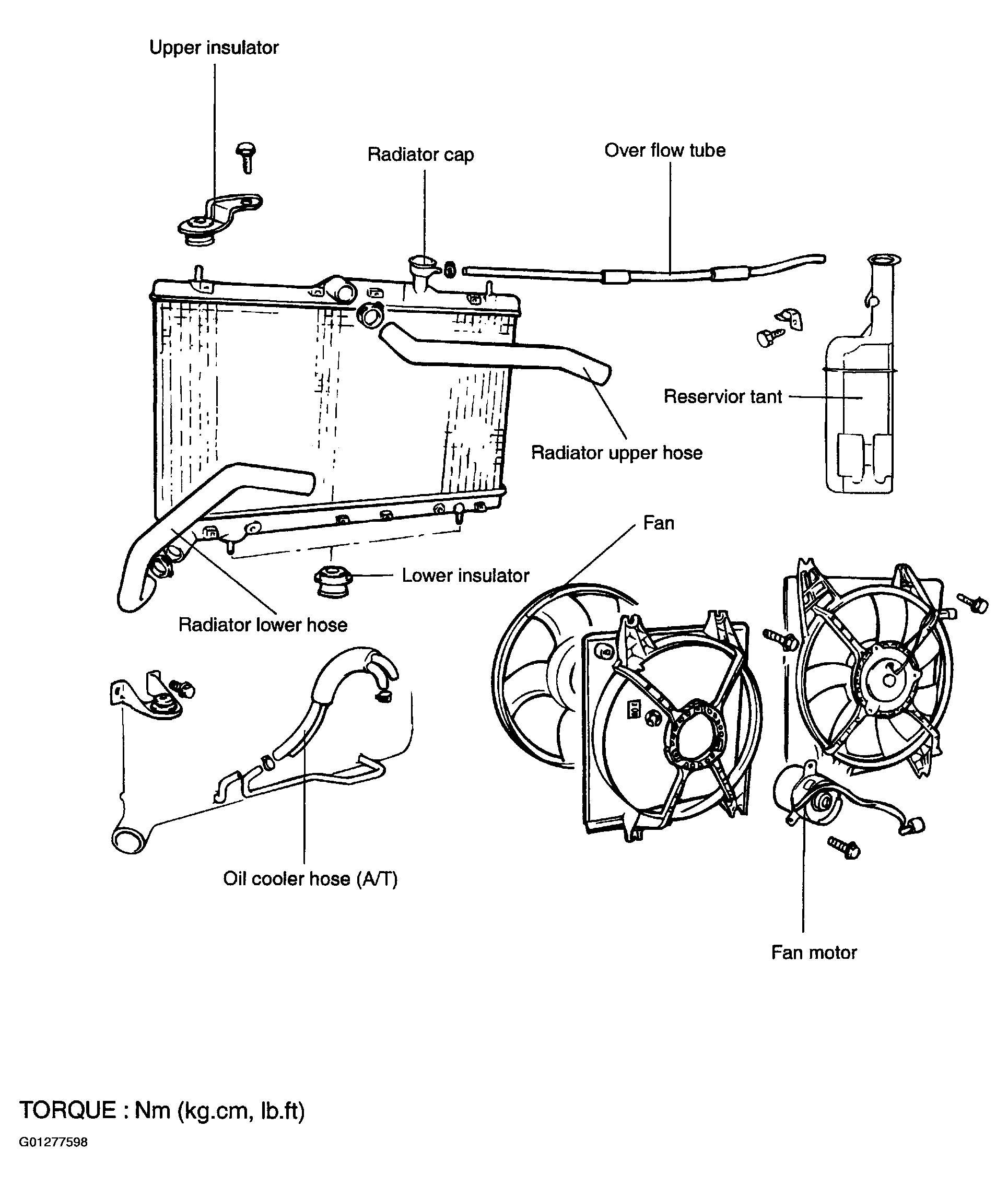

Fig 1: Radiator Components
G01277598Courtesy of HYUNDAI MOTOR CO.
