Front Roll Stopper

  1. Install the insulator in the correct angle.

    A/T: 30 +/- 3°

    M/T: 14 +/- 3°

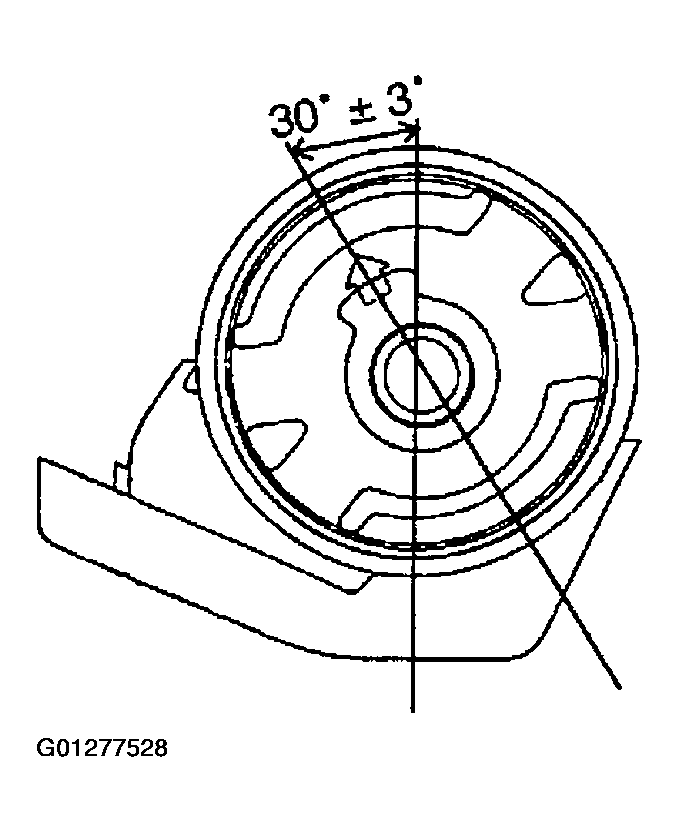

    Fig 1: Identifying Proper Front Roll Stopper Installation
    G01277528Courtesy of HYUNDAI MOTOR CO.
