Mounting Bushing

NOTE:
  • The front and rear cross member mounting bushings are directional.
  • Be sure to install the bushings in the correct direction.
  1. There are 2 arrow marks on the upper side of the front and rear cross member mounting bushings.
  2. When installing the bushings into the cross member inner pipe, align the arrow marks on the bushing with the lateral direction of the lateral member.

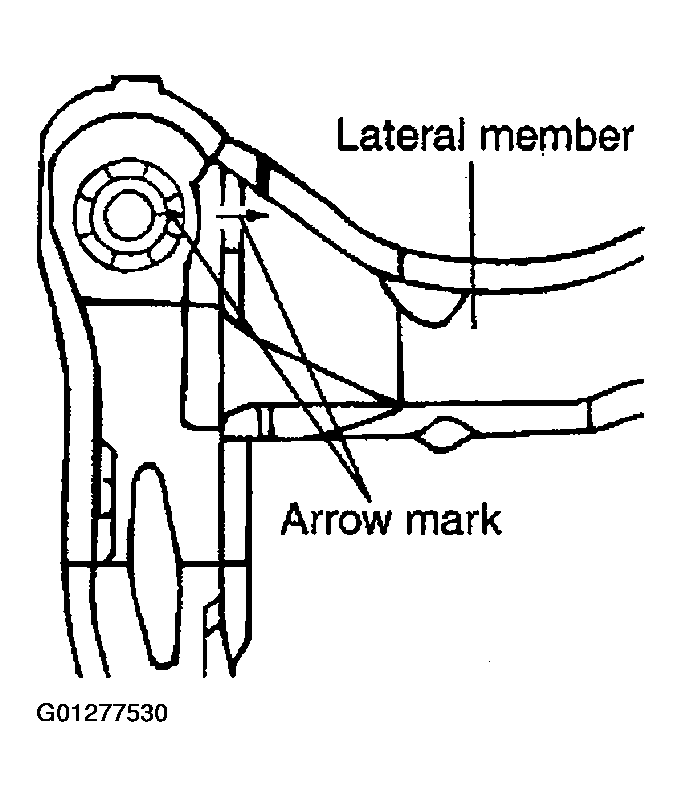

    Fig 1: Identifying Proper Bushing Installation
    G01277530Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Identifying Proper Bushing Installation
    G01277531Courtesy of HYUNDAI MOTOR CO.
    NOTE: Make sure the bushings are positioned parallel to the lateral member of the cross member. Be sure that the installation direction of the bushings do not deviate +/- 3° from the lateral direction of the lateral member when they are installed to the member.
