Timing Belt: Disassembly

  1. Remove the crankshaft pulley, coolant pump pulley and drive belt.
  2. Remove the alternator bolt.
  3. Remove the coolant pump pulley and belt.

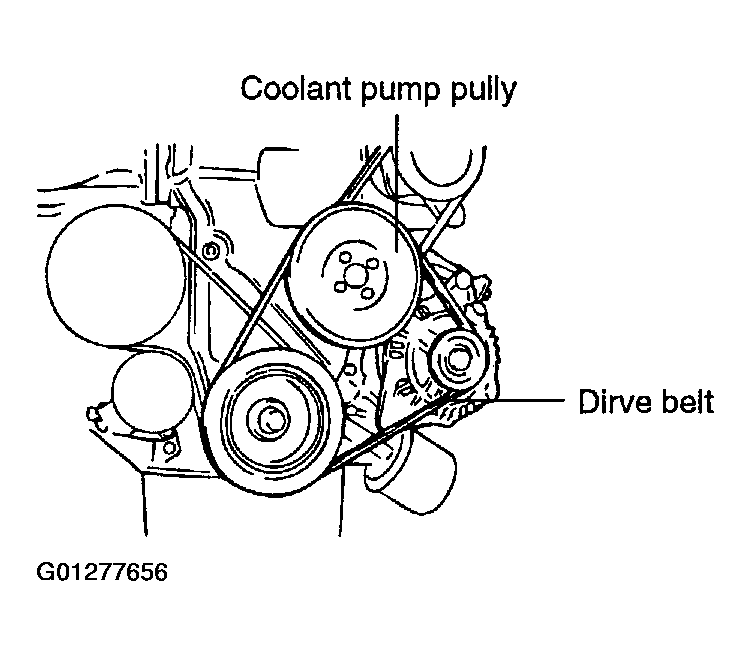

    Fig 1: Removing Water Pump Pulley & Belt
    G01277656Courtesy of HYUNDAI MOTOR CO.
  4. Remove the crankshaft pulley.
  5. Remove the timing belt cover.

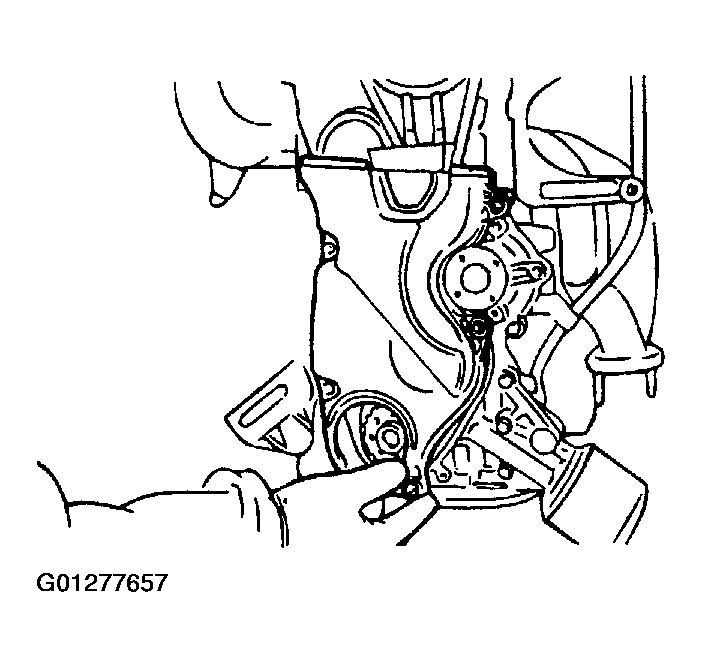

    Fig 2: Removing Timing Cover
    G01277657Courtesy of HYUNDAI MOTOR CO.
  6. Remove the timing belt tensioner pulley.

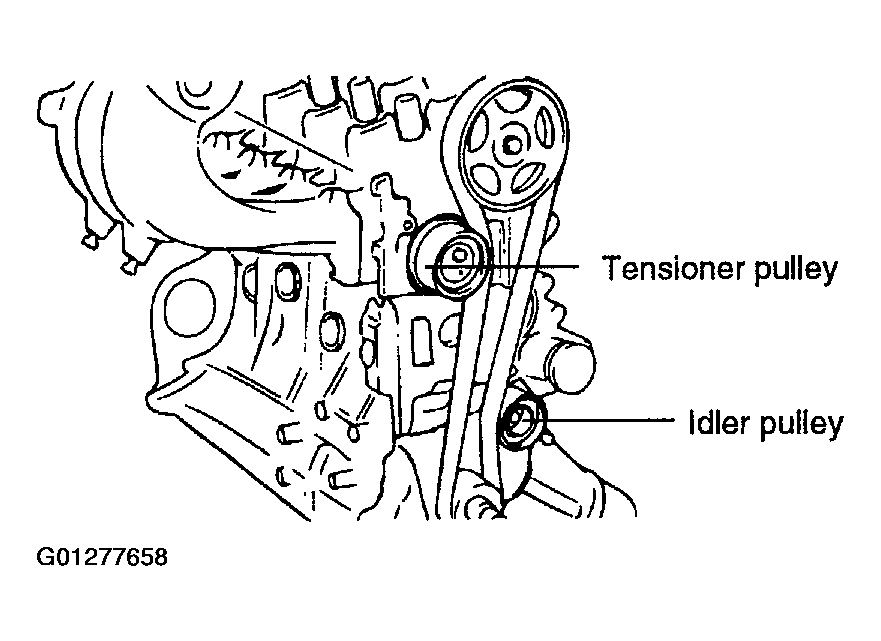

    Fig 3: Identifying Tensioner & Idler Pulley
    G01277658Courtesy of HYUNDAI MOTOR CO.
    NOTE: If the timing belt is reused, make an arrow indicating the turning direction (or the front of the engine) to make sure that the belt is reinstalled in the same direction as before.
  7. Remove the timing belt.
    Fig 4: Removing Timing Belt
    G01277659Courtesy of HYUNDAI MOTOR CO.
  8. Remove the idler pulley.
  9. Remove the camshaft sprocket.
    NOTE: Be careful not to damage the cylinder head with the wrench.
  10. Remove the crankshaft sprocket from crankshaft.
    Fig 5: Removing Crankshaft Sprocket
    G01277660Courtesy of HYUNDAI MOTOR CO.
