Elements In Use In Each Gear: Notes

WARNING: This page is about a different variant/trim than selected.

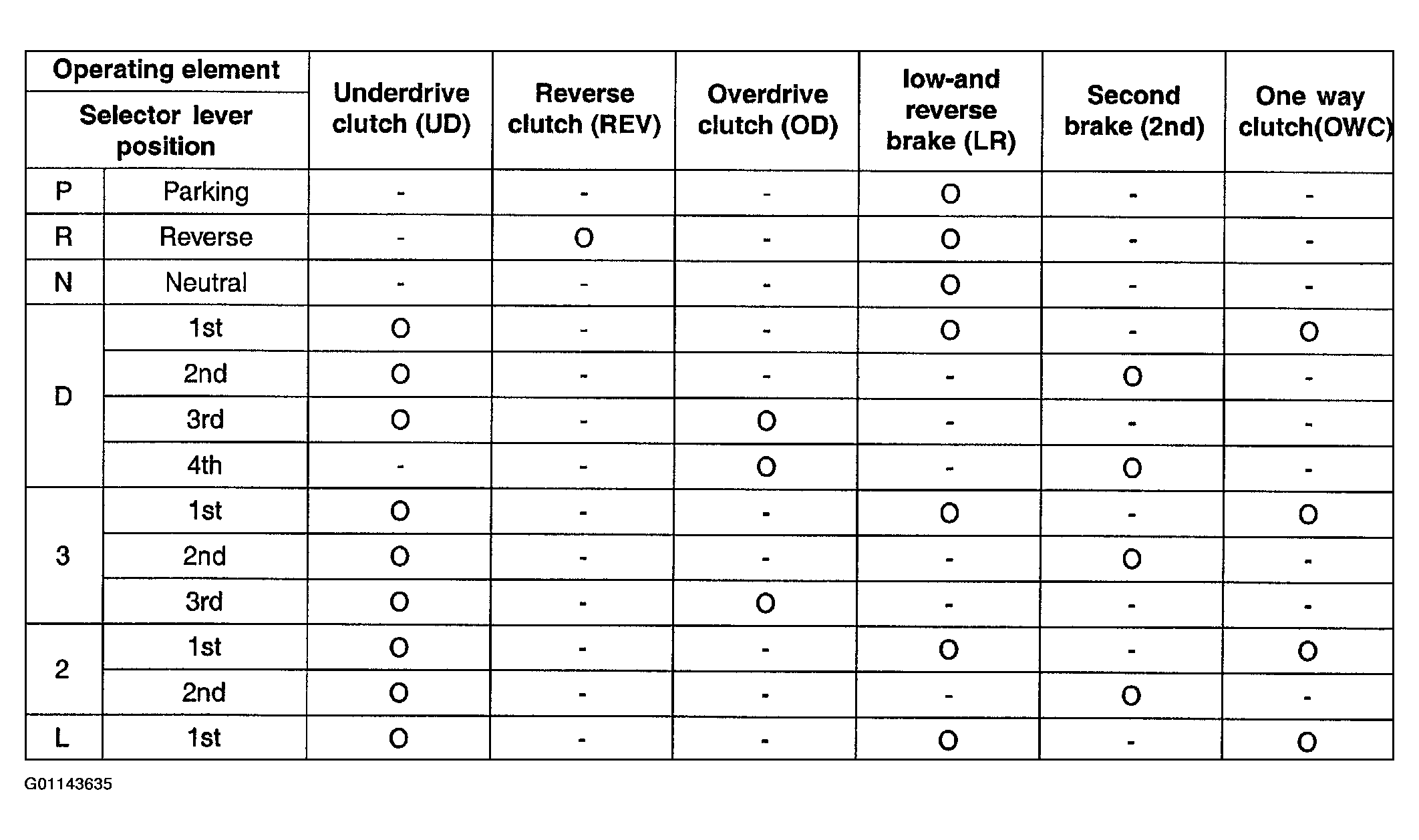

Fig 1: Elements In Use Chart
G01143635Courtesy of HYUNDAI MOTOR CO.
