Section 1 (Automatic Transaxle System)
›
Automatic Transaxle System
›
Inspection Process For Trouble Symptoms
›
Inspection Procedure 12
Inspection Procedure 12
WARNING:
This page is about a different variant/trim than selected.

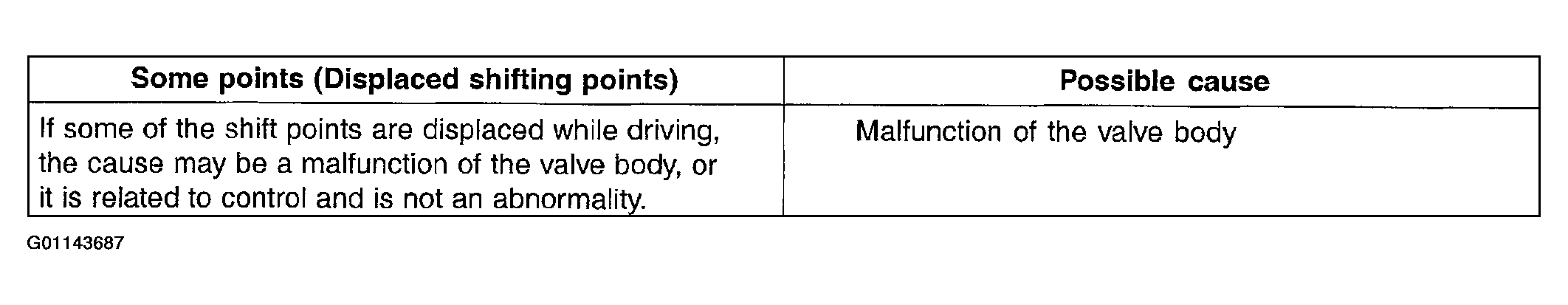

Fig 1: Some Points (Displaced Shifting Points) Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

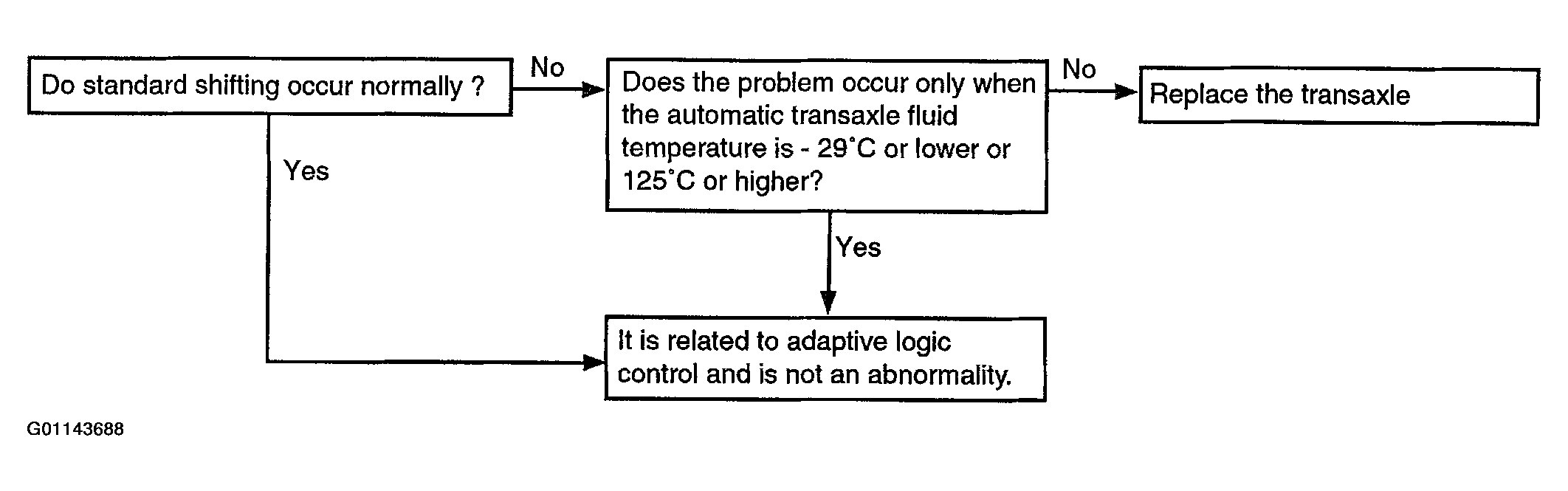

Fig 2: Some Points (Displaced Shifting Points) Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
