Inspection Procedure 3

WARNING: This page is about a different variant/trim than selected.

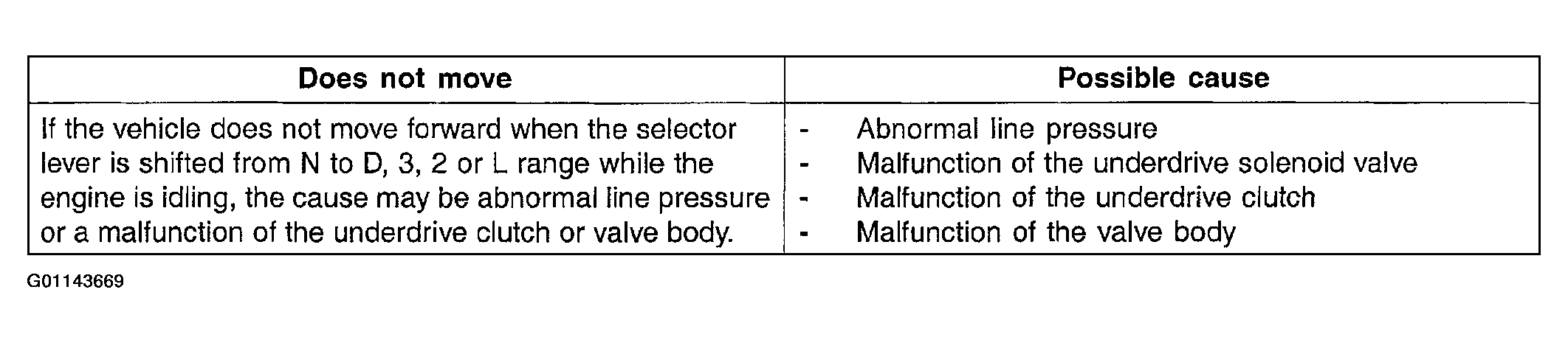

Fig 1: Vehicle Does Not Move Forward Possible Causes Table
G01143669Courtesy of HYUNDAI MOTOR CO.

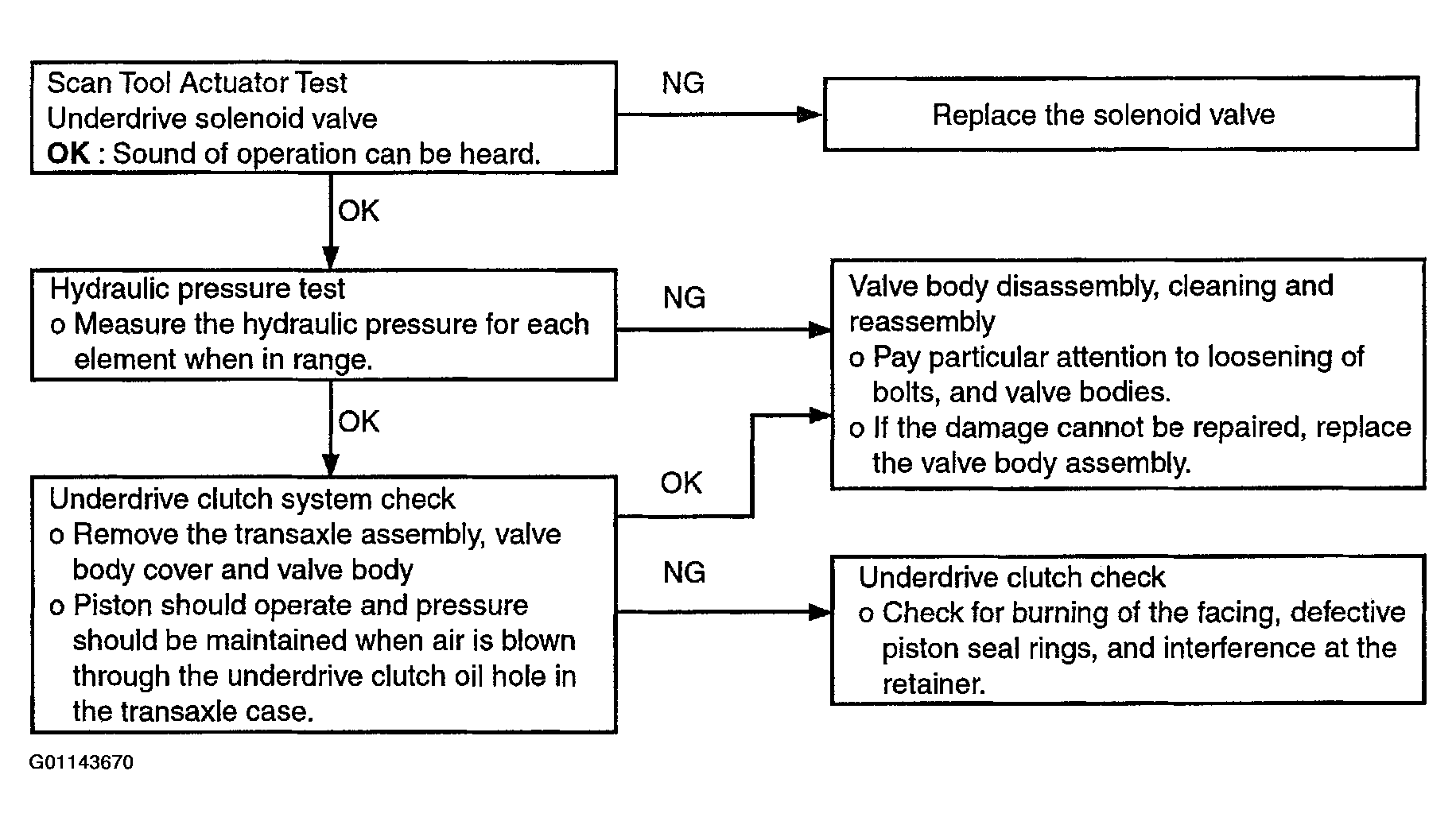

Fig 2: Vehicle Does Not Move Forward Diagnostic Flow Chart
G01143670Courtesy of HYUNDAI MOTOR CO.
