Inspection Procedure 4

WARNING: This page is about a different variant/trim than selected.

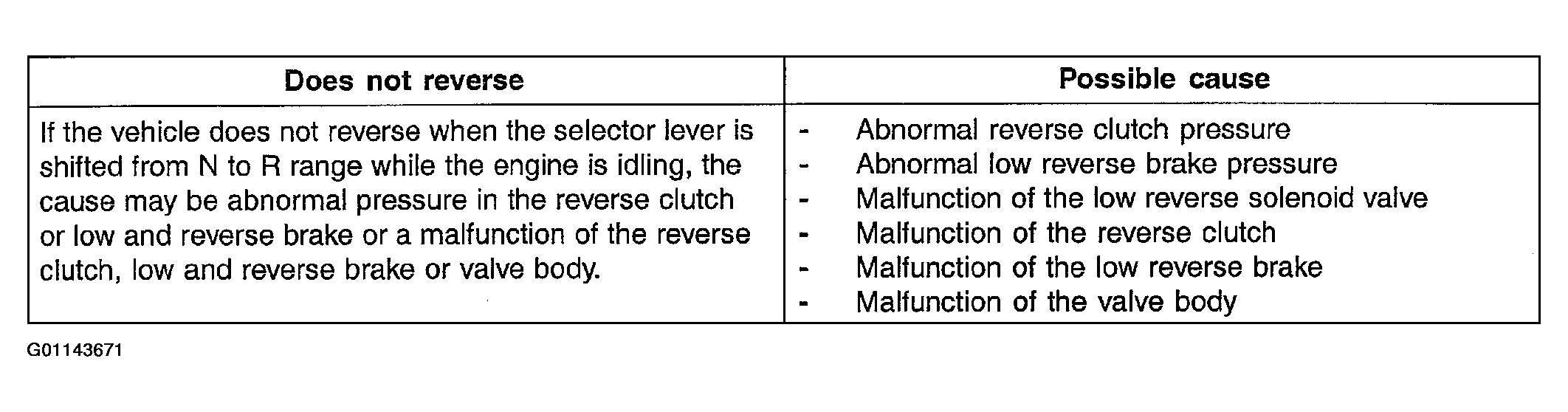

Fig 1: Vehicle Will Not Reverse Possible Causes Table
G01143671Courtesy of HYUNDAI MOTOR CO.

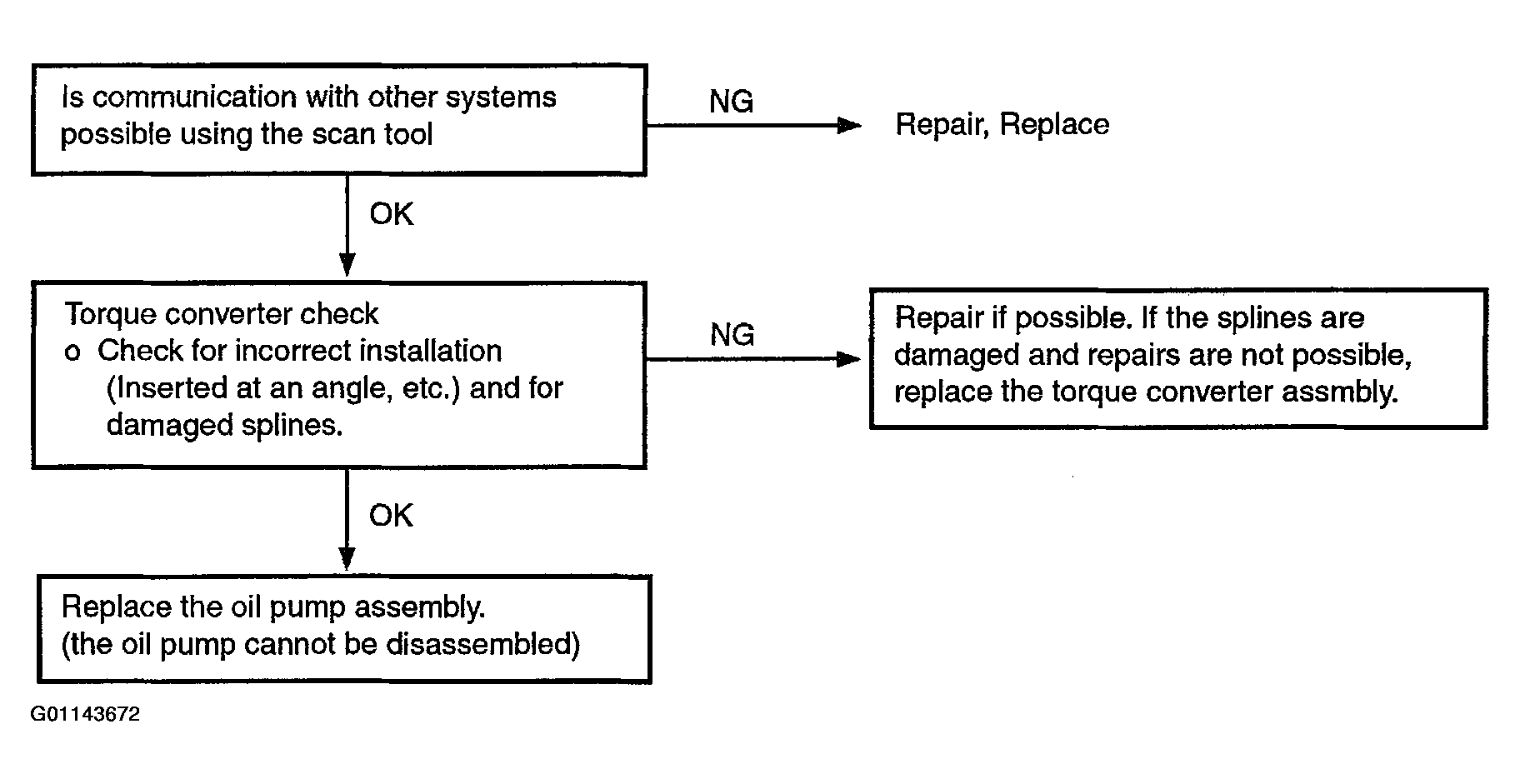

Fig 2: Vehicle Will Not Reverse Diagnostic Flow Chart
G01143672Courtesy of HYUNDAI MOTOR CO.
