DTC P1723: A/T Control Relay System
DTC P1723: A/T Control Relay System
WARNING:
This page is about a different variant/trim than selected.

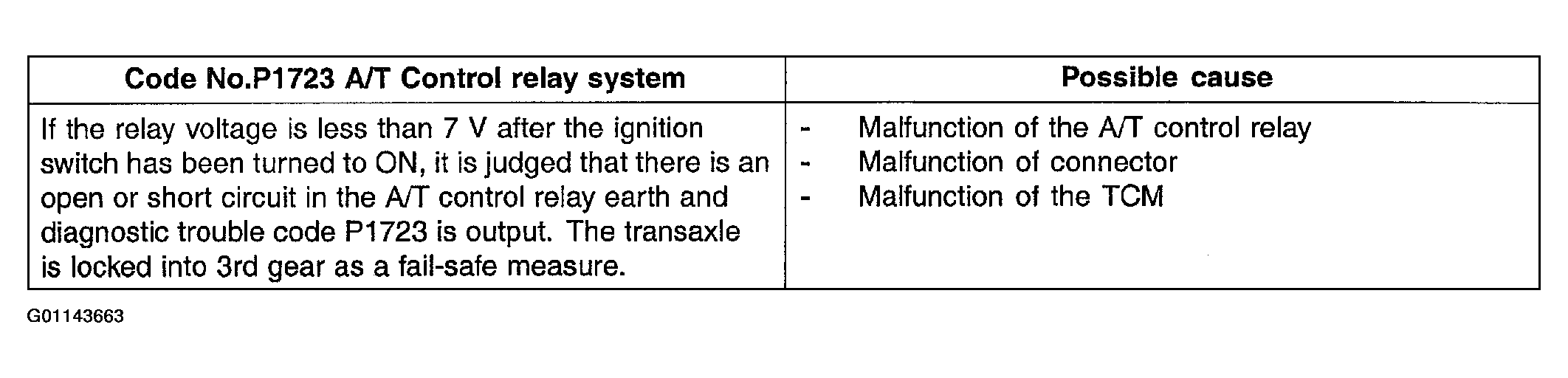

Fig 1: DTC P1723 Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

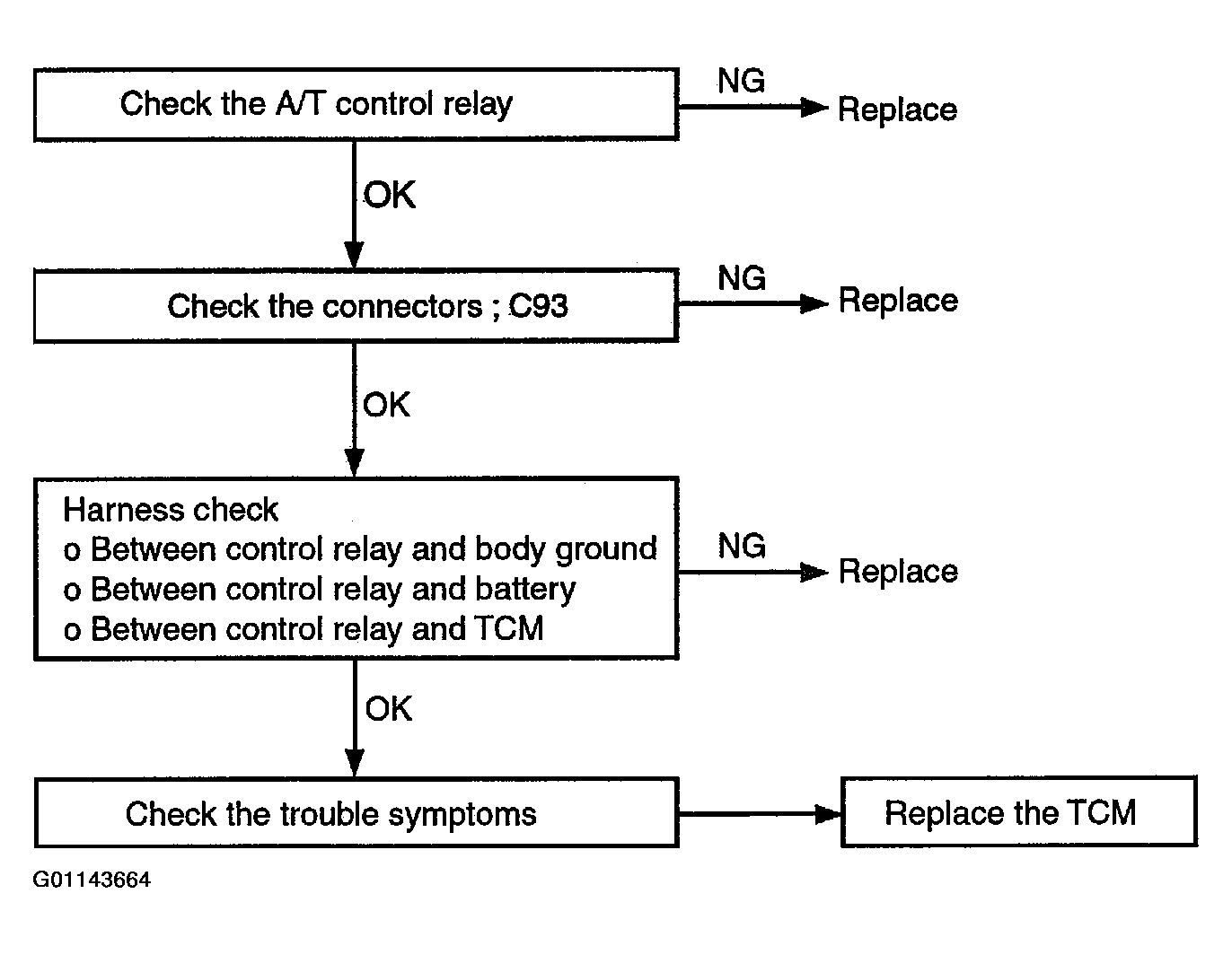

Fig 2: DTC P1723 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
