Decayed Out Room Lamp

Time Specification:

T1: 5.0-6 sec.

T2: 28-32 sec.

Use illustration for timing wave form pattern. See Fig 1 .

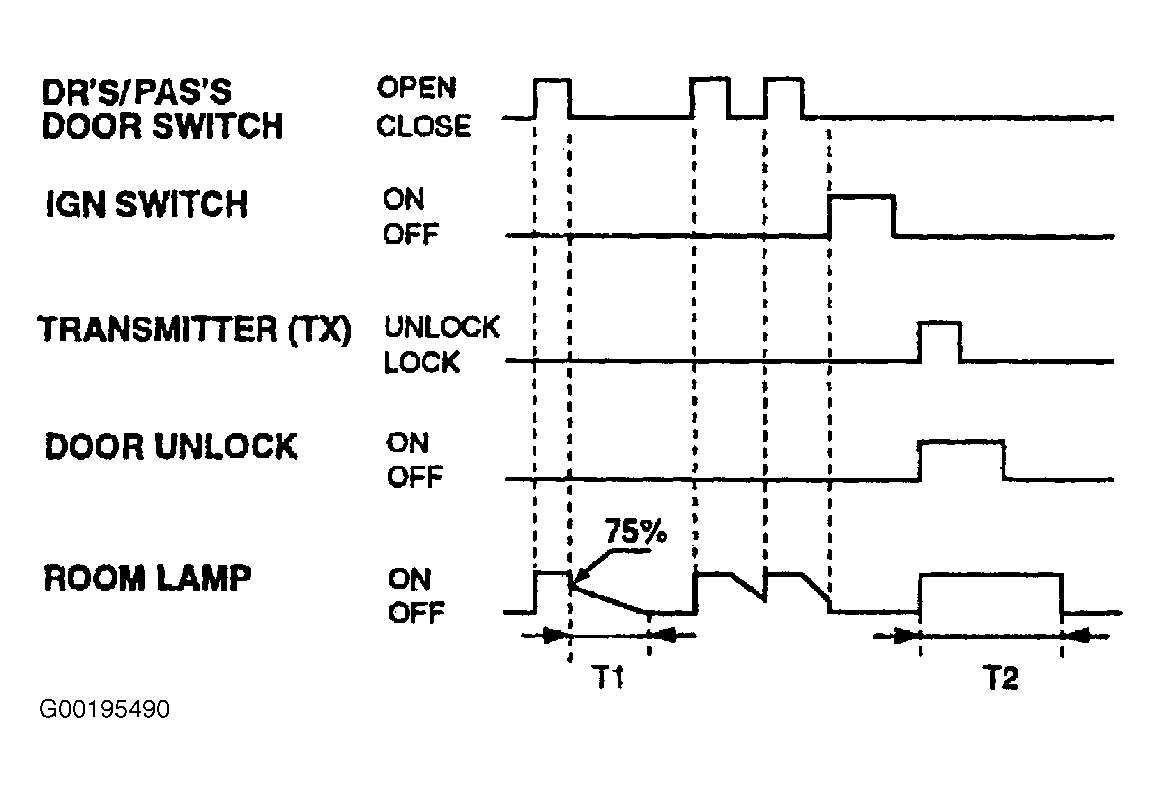

Fig 1: Checking Decayed Out Room Lamp

Courtesy of HYUNDAI MOTOR CO.
