Service Specifications
›
Lighting System
Lighting System

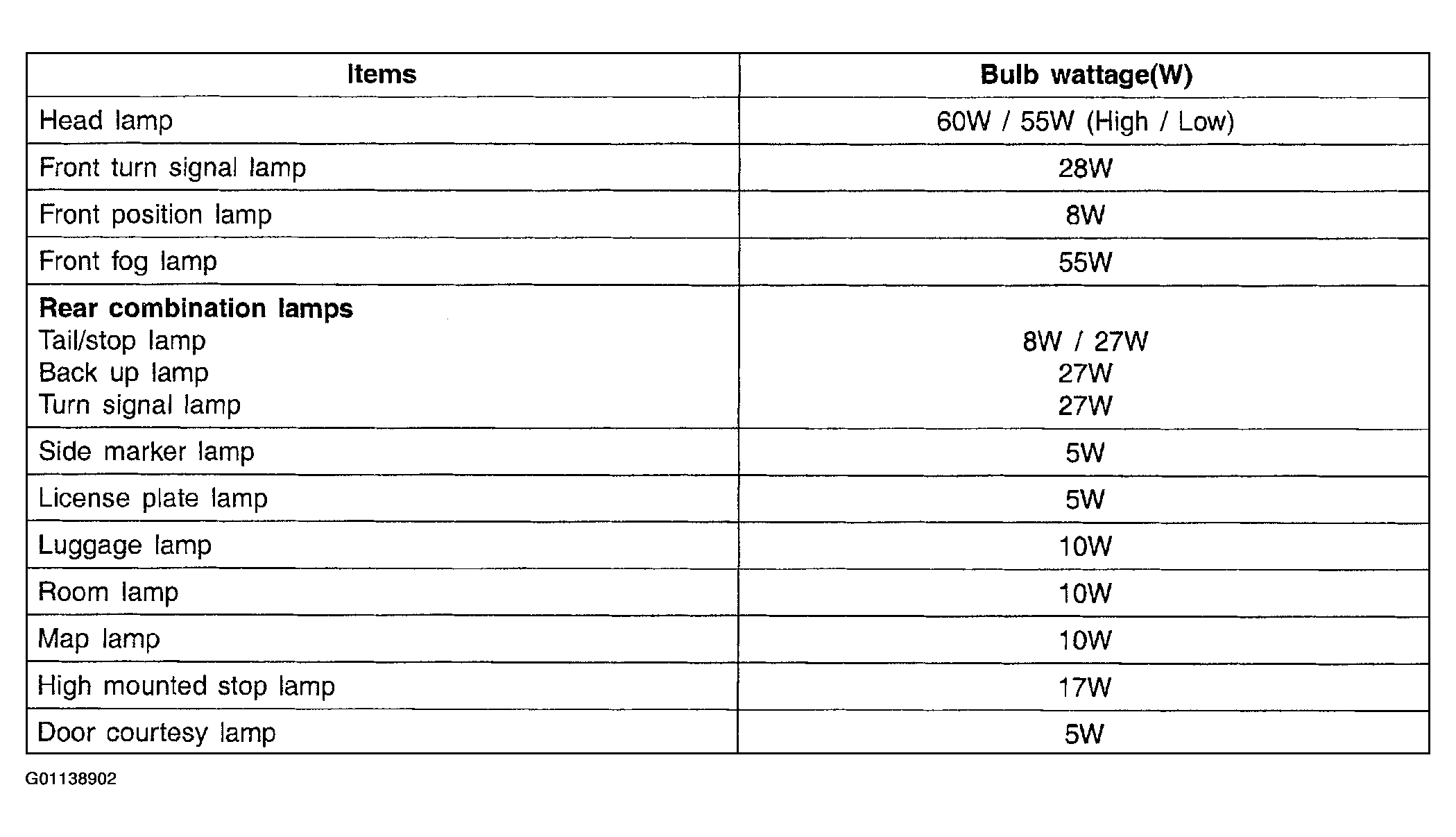

Fig 1: Lighting System Service Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
