Chart 1

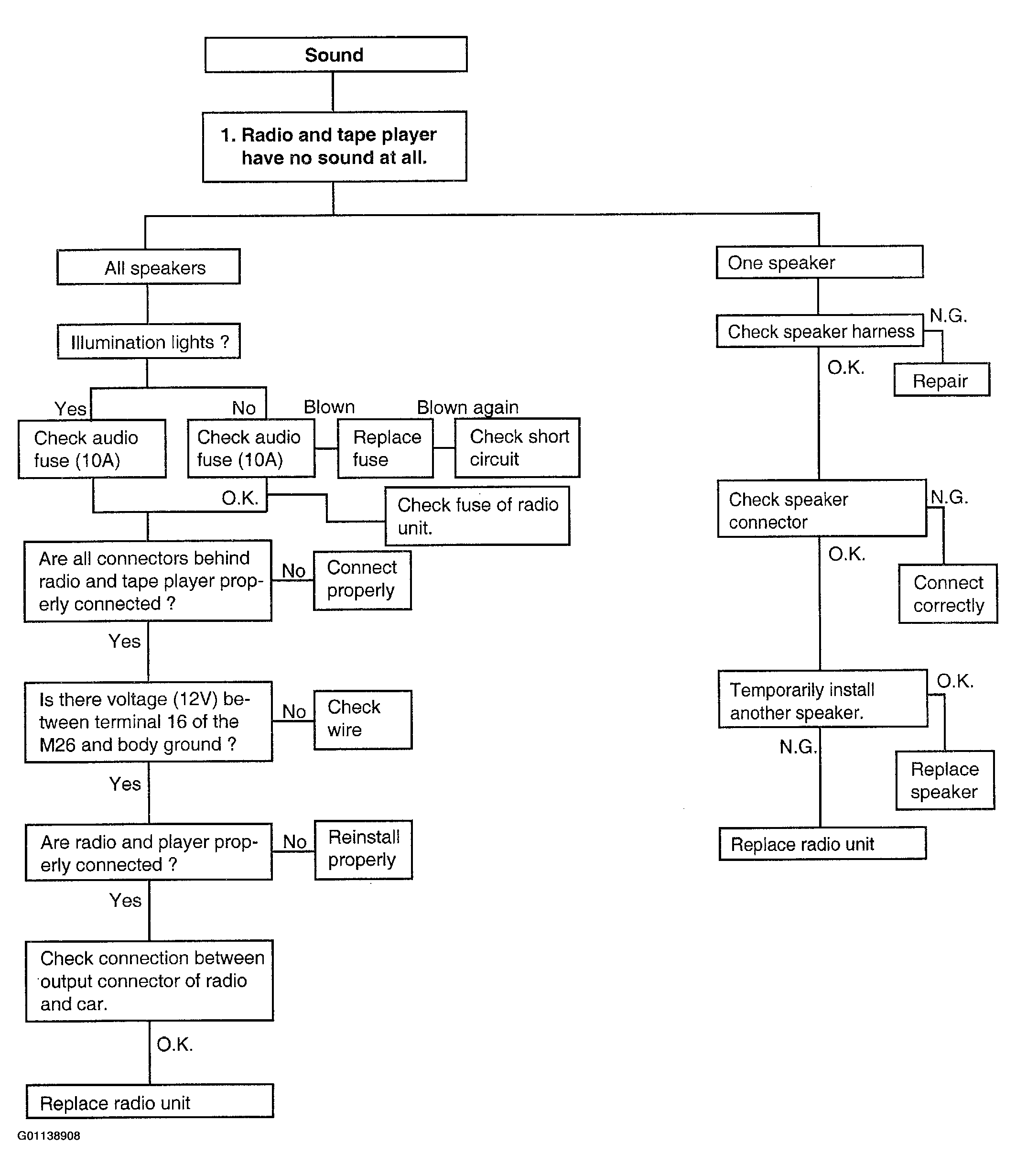

Fig 1: Troubleshooting Flow Chart - Sound
G01138908Courtesy of HYUNDAI MOTOR CO.

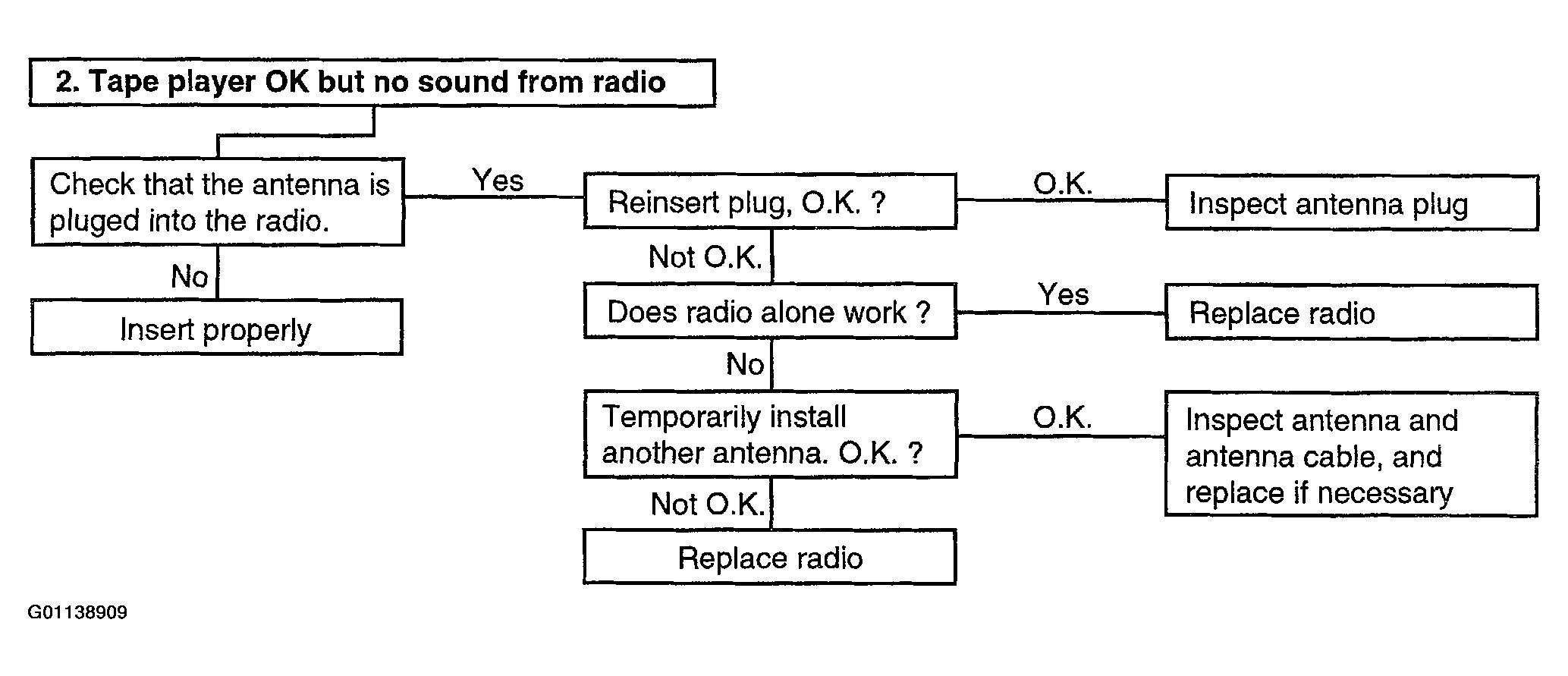

Fig 2: Troubleshooting Flow Chart - Tape Player OK But No Sound From Radio
G01138909Courtesy of HYUNDAI MOTOR CO.
