Chart 10

MOTOR ANTENNA WON'T EXTEND OR RETRACT
Clean and polish the surface of the antenna rod.

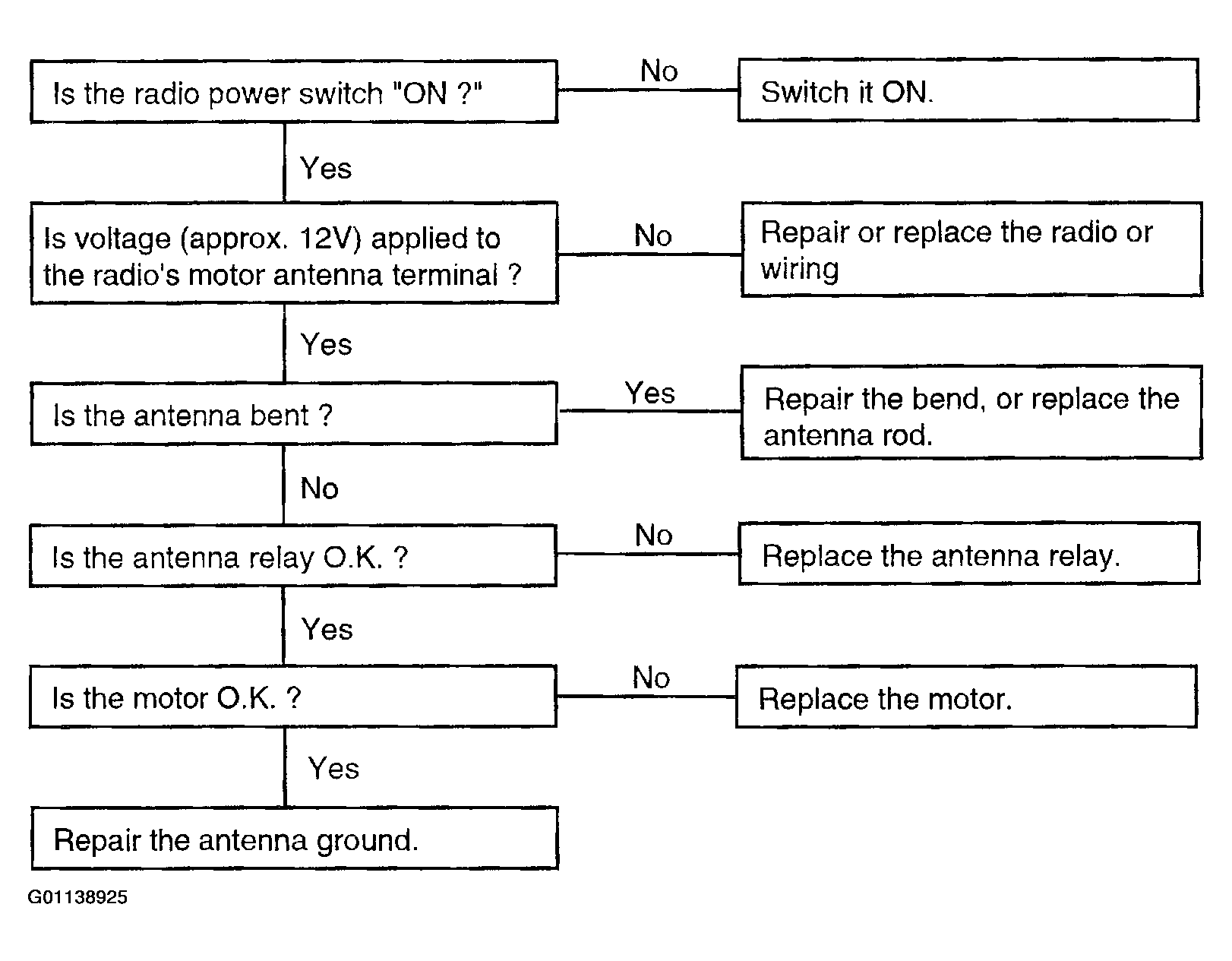

Fig 1: Troubleshooting Flow Chart - Motor Antenna Won't Extend Or Retract
Courtesy of HYUNDAI MOTOR CO.
MOTOR ANTENNA EXTENDS AND RETRACTS BUT DOES NOT RECEIVE

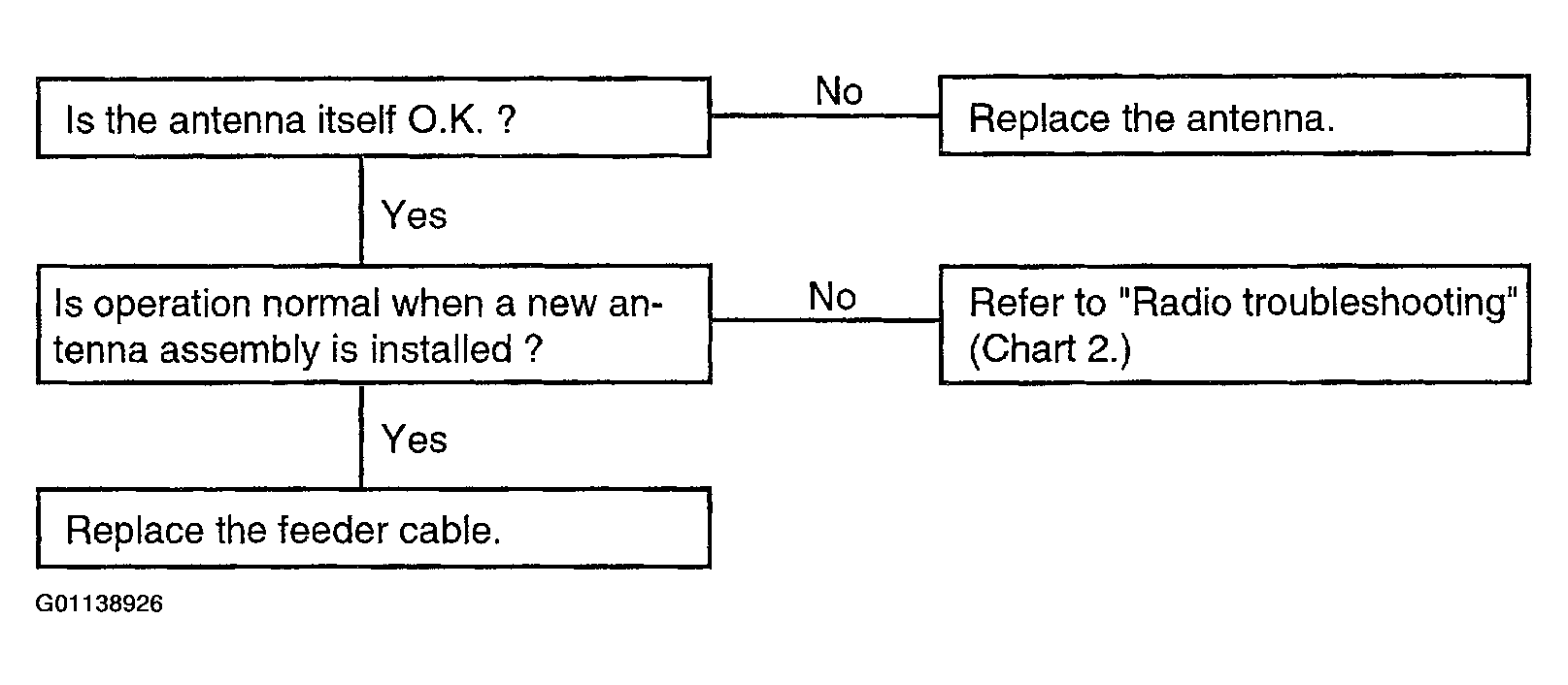

Fig 2: Troubleshooting Flow Chart - Motor Antenna Extends & Retracts But Does Not Receive
Courtesy of HYUNDAI MOTOR CO.
